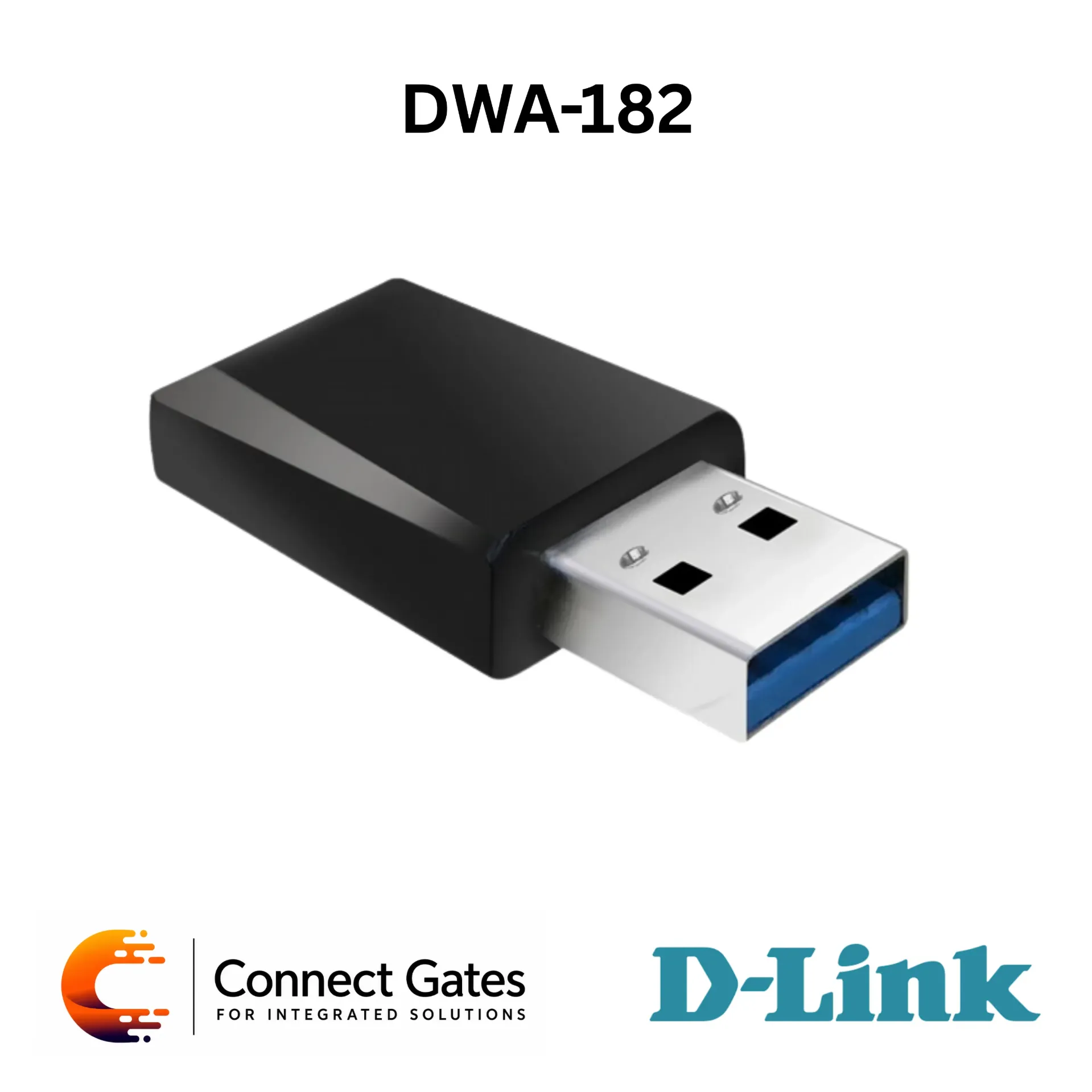

D-Link DWA-182 – Wireless AC1200 Dual Band USB Adapter with 867Mbps 5GHz, 300Mbps 2.4GHz, WPS, Integrated Antenna & WPA/WPA2 Security
Overview:
• The D-Link DWA-182 is a Wireless AC1200 Dual Band USB Adapter designed to add high-speed wireless AC connectivity to desktop and notebook computers.
• It connects through an available USB port and allows users to access secure high-speed internet over both 2.4GHz and 5GHz wireless bands.
• Dual Band technology helps reduce Wi-Fi interference and improve wireless performance for streaming, gaming, VOIP calls, web browsing, downloading, and everyday network usage.
• The adapter supports speeds up to 300Mbps on the 2.4GHz band and up to 867Mbps on the 5GHz band when connected to compatible wireless AC devices.
• The 5GHz band is suitable for HD movie streaming, online gaming, Skype calls, VOIP calls, and high-throughput applications with less interference.
• The DWA-182 is backward compatible with existing IEEE 802.11n/g/b/a wireless products, allowing it to work with older routers and access points.
• Security features include WPA and WPA2 encryption, plus Wi-Fi Protected Setup using PIN and Push Button Configuration for quick secure connection.
• The integrated antenna and compact portable design make it suitable for laptops, desktops, office users, home users, and technicians who need a reliable USB wireless upgrade.
• A diagnostic activity LED provides quick connection status indication.
Key Features:
• Wireless AC1200 Dual Band USB Adapter
• Dual-Band 2.4GHz and 5GHz Wi-Fi
• 5GHz Speed up to 867Mbps
• 2.4GHz Speed up to 300Mbps
• IEEE 802.11ac Draft Wireless Standard
• Backward Compatible with IEEE 802.11n/g/b/a
• USB Interface
• Integrated Antenna
• WPA / WPA2 Wireless Security
• Wi-Fi Protected Setup WPS
• WPS PIN and PBC Support
• Diagnostic Activity LED
• Reduced Wi-Fi Interference on 5GHz
• Suitable for HD Streaming
• Suitable for Online Gaming
• Suitable for VOIP and Skype Calls
• Suitable for Browsing and Downloading
• Compact and Portable Design
• Compatible with Windows 7 / Vista / XP SP3
Technical Specifications:
• Product Type: Wireless AC1200 Dual Band USB Adapter
• Brand: D-Link
• Model: DWA-182
• Wireless Standard: IEEE 802.11ac Draft / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a
• Wireless Class: AC1200
• Wireless Bands: Dual Band 2.4GHz & 5GHz
• 2.4GHz Speed: Up to 300Mbps
• 5GHz Speed: Up to 867Mbps
• Wireless Frequency 2.4GHz: 2.4GHz – 2.4835GHz
• Wireless Frequency 5GHz: 5.15GHz – 5.30GHz
• EIRP 2.4GHz: 18dBm
• EIRP 5GHz: 20dBm
• Interface: Available USB Port
• Antenna Type: Integrated Antenna
• Wireless Security: WPA / WPA2
• WPS: Wi-Fi Protected Setup PIN & PBC
• Diagnostic LED: Activity
• Operating System Support: Windows 7 / Vista / XP SP3
• Compatible Browsers: Internet Explorer v7, Mozilla Firefox v3.0
• Operating Voltage: 5.0V DC ±10%
• Power Consumption: 500mA
• Dimensions: 97.3 × 29.1 × 13.5 mm
• Weight: 20.5g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 75°C
• Operating Humidity: 10% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Certifications: FCC Class B, IC, CE, C-Tick, Wi-Fi Certified, Wi-Fi Protected Setup
• Ordering Information: DWA-182 – Wireless AC1200 Dual Band USB Adapter
Applications:
• Adding Wi-Fi to desktop computers
• Upgrading notebook wireless connectivity
• Connecting to Wireless AC routers
• Dual-band home Wi-Fi access
• Office wireless network access
• HD video streaming
• Online gaming
• Skype and VOIP calls
• Fast web browsing
• Multimedia downloading
• Connecting older computers to modern Wi-Fi networks
• Reducing interference using the 5GHz band
• Portable wireless adapter for technicians and daily use
Connect Gates Recommendation:
• Recommended for users who need a USB wireless adapter with AC1200 dual-band performance for faster 5GHz connectivity and better flexibility than single-band adapters.
• Suitable for laptops, desktops, home users, office users, streaming users, gaming users, and customers upgrading from Wireless N adapters to Wireless AC.
