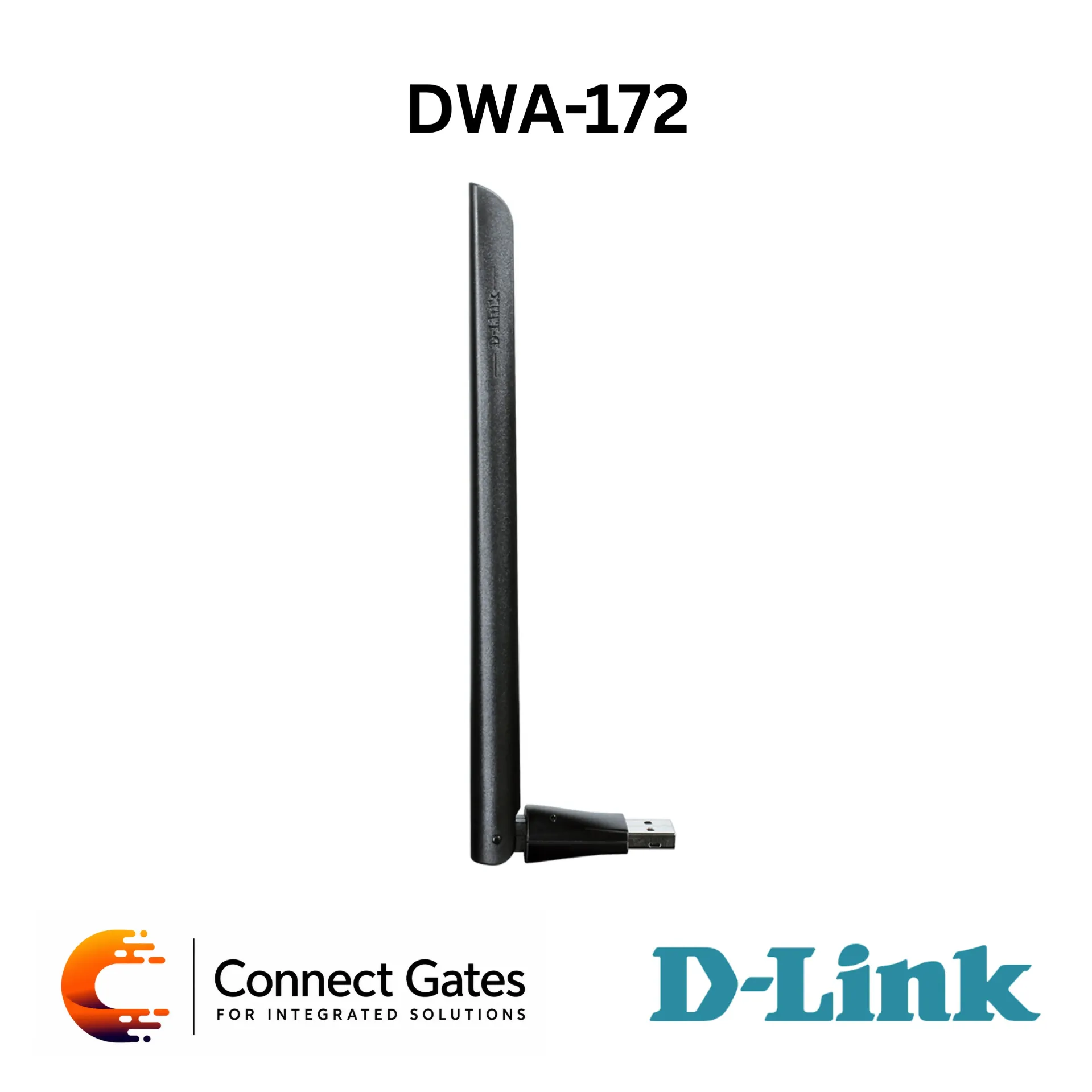

D-Link DWA-172 – Wireless AC600 Dual Band USB Adapter with USB 2.0, External Detachable 5dBi Antenna, MU-MIMO, WPA/WPA2 Security & WPS
Overview:
• The D-Link DWA-172 is a Wireless AC600 Dual Band USB Adapter designed to add Wireless AC connectivity to desktop and notebook computers.
• It supports dual-band wireless operation over 2.4GHz and 5GHz bands, giving users flexible connectivity for different network needs.
• The adapter provides up to 150Mbps on the 2.4GHz band and up to 433Mbps on the 5GHz band.
• The 2.4GHz band is suitable for browsing, e-mail, and daily internet use, while the 5GHz band is ideal for HD streaming, online gaming, VoIP calls, and low-interference wireless performance.
• MU-MIMO support helps improve wireless efficiency when used with compatible Wireless AC Wave 2 routers.
• The detachable omni-directional 5dBi antenna helps extend wireless range and improve signal reception in hard-to-reach areas.
Key Features:
• Wireless AC600 Technology: Provides dual-band Wireless AC performance for desktop PCs and laptops.
• Wireless AC Wave 2 Support: Supports the latest version of 802.11ac Wave 2 technology.
• MU-MIMO Support: Helps improve wireless throughput with compatible Wireless AC Wave 2 routers.
• Dual-Band Wi-Fi: Supports 2.4GHz and 5GHz bands for flexible wireless connectivity.
• External Detachable Antenna: 5dBi omni-directional antenna improves reception and wireless coverage.
• USB 2.0 Interface: Easy connection to desktop and notebook computers.
• WPA/WPA2 Security: Provides secure wireless connection and data protection.
• WPS Support: Allows easy secure connection setup through the connection utility.
• Backward Compatibility: Compatible with IEEE 802.11a/b/g/n/ac wireless standards.
Technical Specifications:
• Product Type: Wireless AC Dual Band USB Adapter
• Model: DWA-172
• Wireless Technology: Wireless AC600 Wave 2
• Interface: USB 2.0
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Wireless Bands: Dual-Band 2.4GHz and 5GHz
• 2.4GHz Wireless Speed: Up to 150Mbps
• 5GHz Wireless Speed: Up to 433Mbps
• 2.4GHz Frequency Range: 2.4GHz to 2.4835GHz
• 5GHz Frequency Range: 5.15GHz to 5.30GHz
• EIRP: 2.4GHz: 18dBm, 5GHz: 21dBm
• Antenna: Detachable Omni-Directional 5dBi Antenna
• Wireless Security: Wi-Fi Protected Setup, 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK TKIP/AES
• LED Indicator: Status LED
• Operating System: Windows 7/8/10, Linux, Mac OS
• Required Interface: USB Port
• Wireless Speed: IEEE 802.11a up to 54Mbps, IEEE 802.11b up to 11Mbps, IEEE 802.11g up to 54Mbps, IEEE 802.11n from 6.5 to 150Mbps, IEEE 802.11ac from 29.3 to 433Mbps
• Dimensions: 45 × 18 × 10 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Order Information: DWA-172 – Wireless AC600 Dual Band USB Adapter with External Detachable Antenna
Applications:
• Upgrading desktop PCs and laptops to Wireless AC dual-band connectivity.
• Improving Wi-Fi reception in areas with weak wireless signal.
• Browsing, e-mail, chatting, and everyday internet usage over 2.4GHz.
• HD streaming, online gaming, and VoIP calls over the 5GHz band.
• Home and small office wireless networking.
• Suitable for users who need better wireless range through an external antenna.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-172 for users who need a practical dual-band USB Wi-Fi adapter with better reception than compact mini adapters.
• It is suitable for desktop PCs and laptops that require 5GHz Wi-Fi support with improved signal coverage through the detachable 5dBi antenna.
• MU-MIMO support makes it a good choice when used with compatible Wireless AC Wave 2 routers for better wireless efficiency.
• With WPA/WPA2 security and WPS support, the DWA-172 provides secure and easy wireless connection setup.
• This adapter is recommended for home users, small offices, streaming, online calls, browsing, and customers who need stable AC600 wireless connectivity with extended range.
