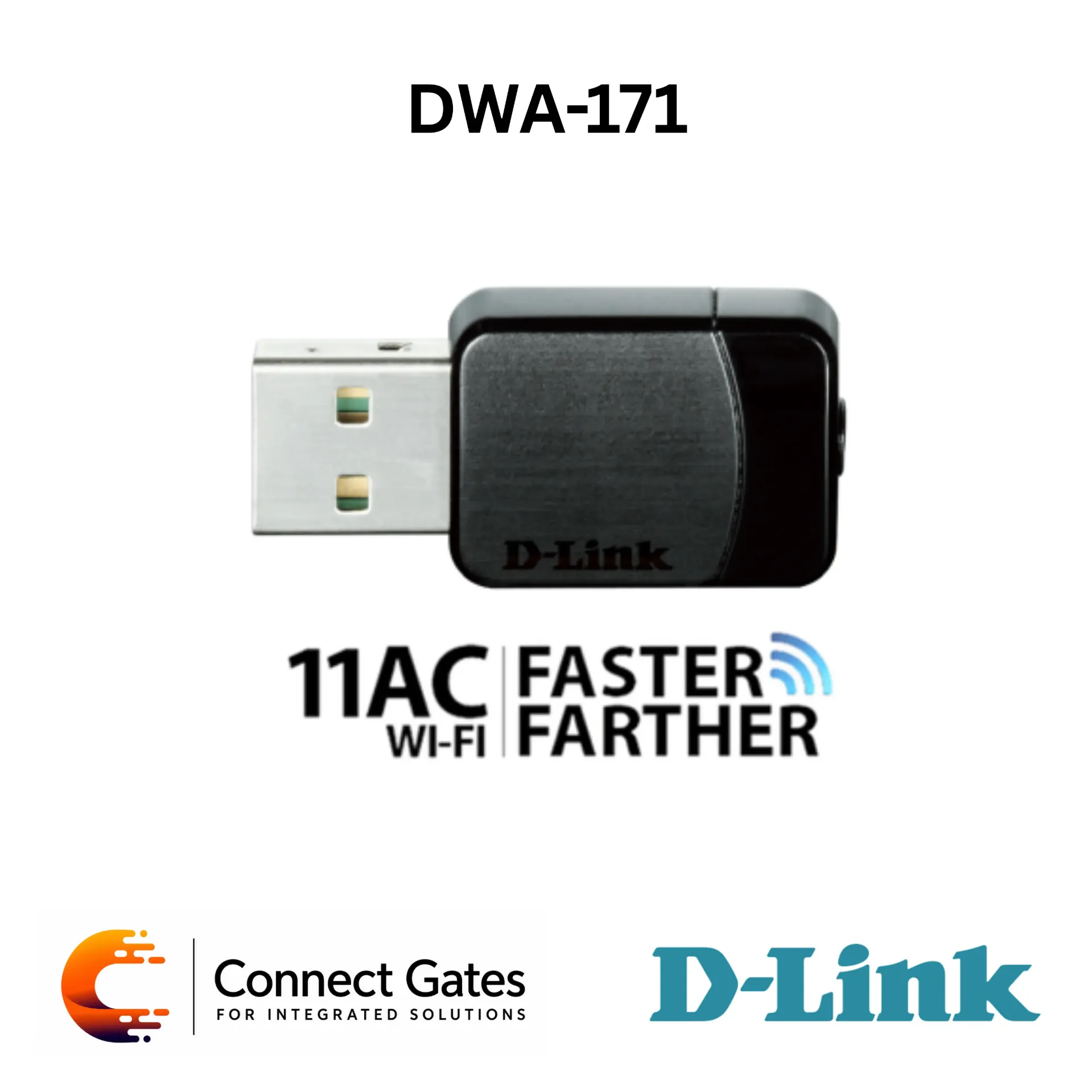

D-Link DWA-171 – Wireless AC Dual Band USB Adapter with USB 2.0, 2.4GHz/5GHz Wi-Fi, Integrated Antenna, WPA/WPA2 Security & WPS
Overview:
• The D-Link DWA-171 is a Wireless AC Dual Band USB Adapter designed to add high-speed Wi-Fi connectivity to desktop and notebook computers.
• It delivers Wireless AC performance over dual-band connectivity, allowing users to connect on 2.4GHz or 5GHz wireless bands.
• The adapter supports up to 150Mbps on the 2.4GHz band and up to 433Mbps on the 5GHz band.
• Dual-band technology helps reduce Wi-Fi interference and improve throughput for faster streaming, gaming, VoIP calls, browsing, and online communication.
• The compact USB design makes it highly portable and suitable for laptops, desktops, and everyday mobile use.
• WPS push-button setup allows users to quickly establish a secure wireless
connection with simple installation and configuration.
Key Features:
• Wireless AC Technology: Provides faster wireless performance compared to older standards.
• Dual-Band Connectivity: Supports 2.4GHz and 5GHz bands for flexible Wi-Fi usage.
• Up to 433Mbps on 5GHz: Suitable for streaming, gaming, VoIP calls, and high-speed internet use.
• USB 2.0 Interface: Easy connection to desktops and laptops through an available USB port.
• Integrated Antenna: Compact internal antenna design for portable wireless connectivity.
• WPA/WPA2 Security: Supports secure wireless encryption for protected network access.
• WPS Support: Supports WPS PIN and PBC for quick secure setup.
• Compact Portable Design: Small size makes it suitable to leave plugged into a laptop.
• Backward Compatibility: Compatible with IEEE 802.11a/b/g/n wireless standards.
Technical Specifications:
• Product Type: Wireless AC Dual Band USB Adapter
• Model: DWA-171
• Wireless Technology: Wireless AC
• Interface: USB 2.0 Connector
• Wireless Standards: IEEE 802.11ac draft, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
• Wireless Bands: Dual-Band 2.4GHz and 5GHz
• 2.4GHz Frequency Range: 2.4GHz to 2.4835GHz
• 5GHz Frequency Range: 5.15GHz to 5.30GHz
• 2.4GHz Wireless Speed: Up to 150Mbps
• 5GHz Wireless Speed: Up to 433Mbps
• EIRP 2.4GHz: 18dBm
• EIRP 5GHz: 20dBm
• Antenna Type: Integrated Antenna
• Security: WPA, WPA2
• WPS: Supported – PIN & PBC
• LED Indicator: Status LED
• Operating System: Windows 8, Windows 7, Windows XP SP3
• Compatible Browsers: Internet Explorer v7 or later, Mozilla Firefox v3.0 or later
• Required Interface: Available USB Port
• Operating Voltage: 5.0V DC ±10%
• Power Consumption: 220mA
• Dimensions: 24.8 × 18.8 × 8 mm
• Weight: 3.9g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 75°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Certifications: FCC Class B, IC, CE, C-Tick, Wi-Fi Certified, Wi-Fi Protected Setup
• Order Information: DWA-171 – Wireless AC Dual Band USB Adapter
Applications:
• Upgrading desktop PCs and laptops to Wireless AC connectivity.
• Connecting laptops to dual-band home or office Wi-Fi networks.
• Browsing, e-mail, online chatting, and everyday internet access.
• HD streaming, online gaming, and VoIP calls over the 5GHz band.
• Portable wireless connectivity for users who need a compact USB adapter.
• Suitable for home users, small offices, and mobile laptop users.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-171 for users who need a compact and portable Wireless AC adapter with dual-band connectivity.
• It is a suitable choice for laptops and desktop PCs where 5GHz Wi-Fi support is required without using a large external adapter.
• The small USB design makes it ideal for mobile users who want to leave the adapter plugged into the laptop without affecting portability.
• With WPA/WPA2 security and WPS support, the DWA-171 provides secure and easy wireless connection setup.
• This adapter is recommended for everyday internet use, HD streaming, online calls, and general wireless connectivity where compact size and dual-band performance are important.
