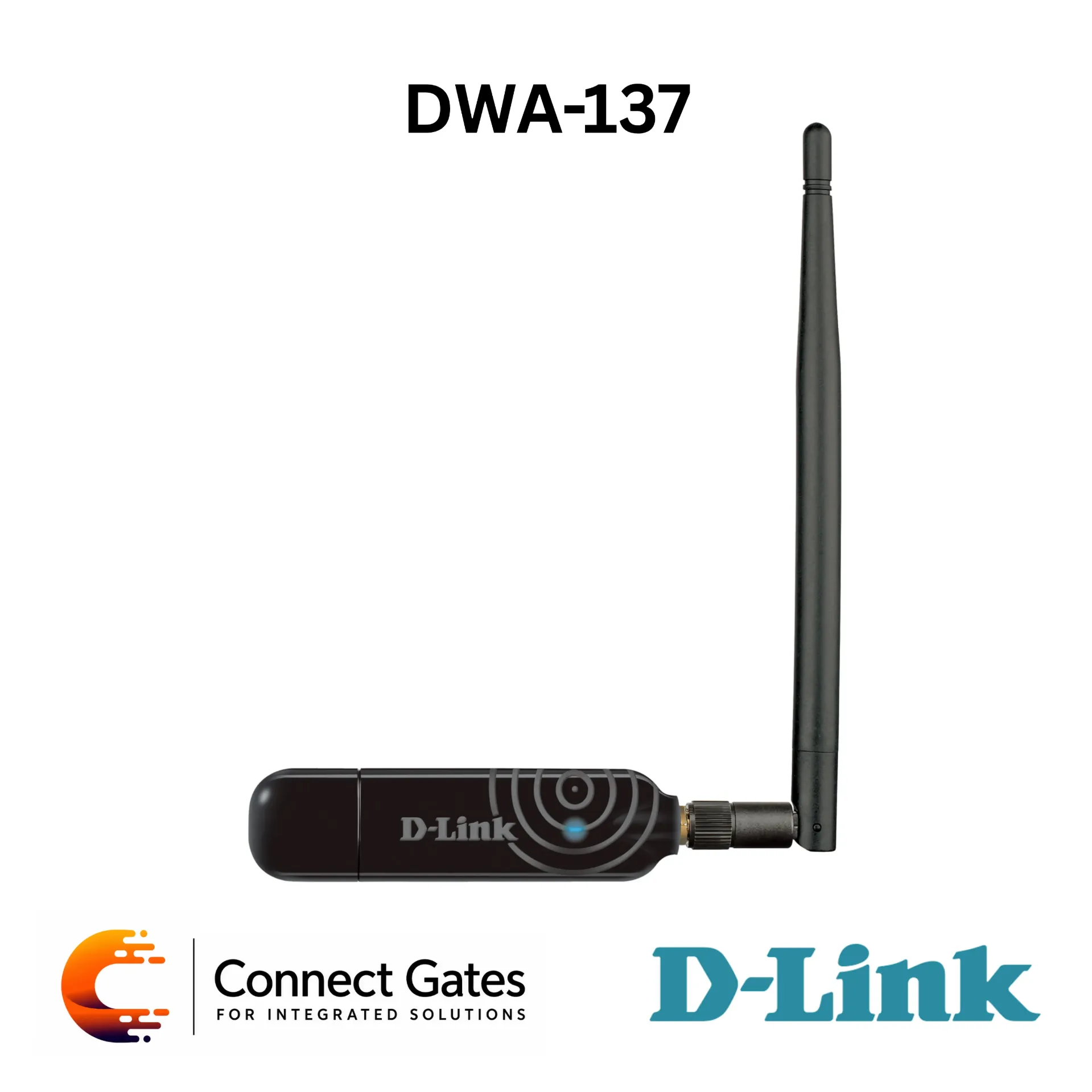

D-Link DWA-137 – Wireless N High-Gain USB Adapter with Rotatable Antenna, USB 2.0, WPA/WPA2, WEP, WPS & Windows Support
Overview:
• The D-Link DWA-137 is a Wireless N High-Gain USB Adapter designed to connect desktop and laptop computers to high-speed wireless networks.
• It provides a fast wireless connection with superior reception for browsing, streaming videos and music, online gaming, file sharing, and daily internet usage.
• The adapter uses 802.11n wireless technology to deliver faster wireless performance while remaining backward compatible with 802.11g and 802.11b devices.
• The high-gain rotatable antenna improves signal reception and helps provide wider wireless coverage than regular wireless adapters.
• The antenna can be adjusted to help reduce dead spots and improve wireless connectivity in hard-to-reach areas.
• USB 2.0 connectivity allows easy installation on compatible computers without the need for internal hardware installation.
• Security features include WEP, WPA, WPA2, and Wi-Fi Protected Setup WPS for secure and easy wireless connection.
• D-Link Setup Wizard helps users install and configure the USB adapter easily.
Key Features:
• Wireless N High-Gain USB Adapter
• IEEE 802.11n Wireless Technology
• Backward Compatible with 802.11g and 802.11b
• 2.4GHz Wireless Frequency
• High-Gain Rotatable Antenna
• Enhanced Wireless Range
• Better Reception in Hard-to-Reach Areas
• Helps Reduce Wireless Dead Spots
• USB 2.0 Interface
• Status LED
• WPS Button
• WPA / WPA2 Wireless Security
• WEP 64/128-bit Data Encryption
• Wi-Fi Protected Setup WPS
• Easy Setup Wizard
• Suitable for Laptop and Desktop Computers
• Supports Browsing, Streaming, Gaming and File Sharing
• Compatible with Windows 8 / 7 / Vista / XP SP3
• Wi-Fi Certified
• Windows 8 Certified
Technical Specifications:
• Product Type: Wireless N High-Gain USB Adapter
• Brand: D-Link
• Model: DWA-137
• Wireless Standard: IEEE 802.11n/g/b
• Wireless Technology: Wireless N
• Wireless Frequency Range: 2.4GHz to 2.4835GHz
• Interface: USB 2.0
• Antenna Type: High-Gain Rotatable Antenna
• LED Indicator: Status LED
• Button: WPS Button
• Wireless Security: WPA, WPA2, WEP 64/128-bit
• WPS: Wi-Fi Protected Setup Supported
• Operating System Support: Windows 8 / 7 / Vista / XP SP3
• Operating Voltage: 5.0V DC ±10%
• Power Consumption: 305.7mA
• Dimensions: 251 × 23 × 10.8 mm
• Weight: 25.5g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 0% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Certifications: CE, FCC, Wi-Fi Certified, Windows 8 Certified
• Ordering Information: DWA-137 – Wireless N High-Gain USB Adapter
Applications:
• Adding Wi-Fi to desktop computers
• Upgrading laptop wireless connectivity
• Connecting to Wireless N routers
• Home Wi-Fi network access
• Office wireless network access
• Web browsing and email
• Video and music streaming
• Online gaming
• File and printer sharing
• Wireless access in weak-signal areas
• Improving reception compared to regular USB adapters
• Connecting older computers to Wi-Fi networks
Connect Gates Recommendation:
• Recommended for users who need a Wireless N USB adapter with stronger reception and better coverage than standard nano adapters.
• Suitable for desktop PCs, laptops, office workstations, home users, and customers who need improved 2.4GHz Wi-Fi reception using a high-gain external antenna.
