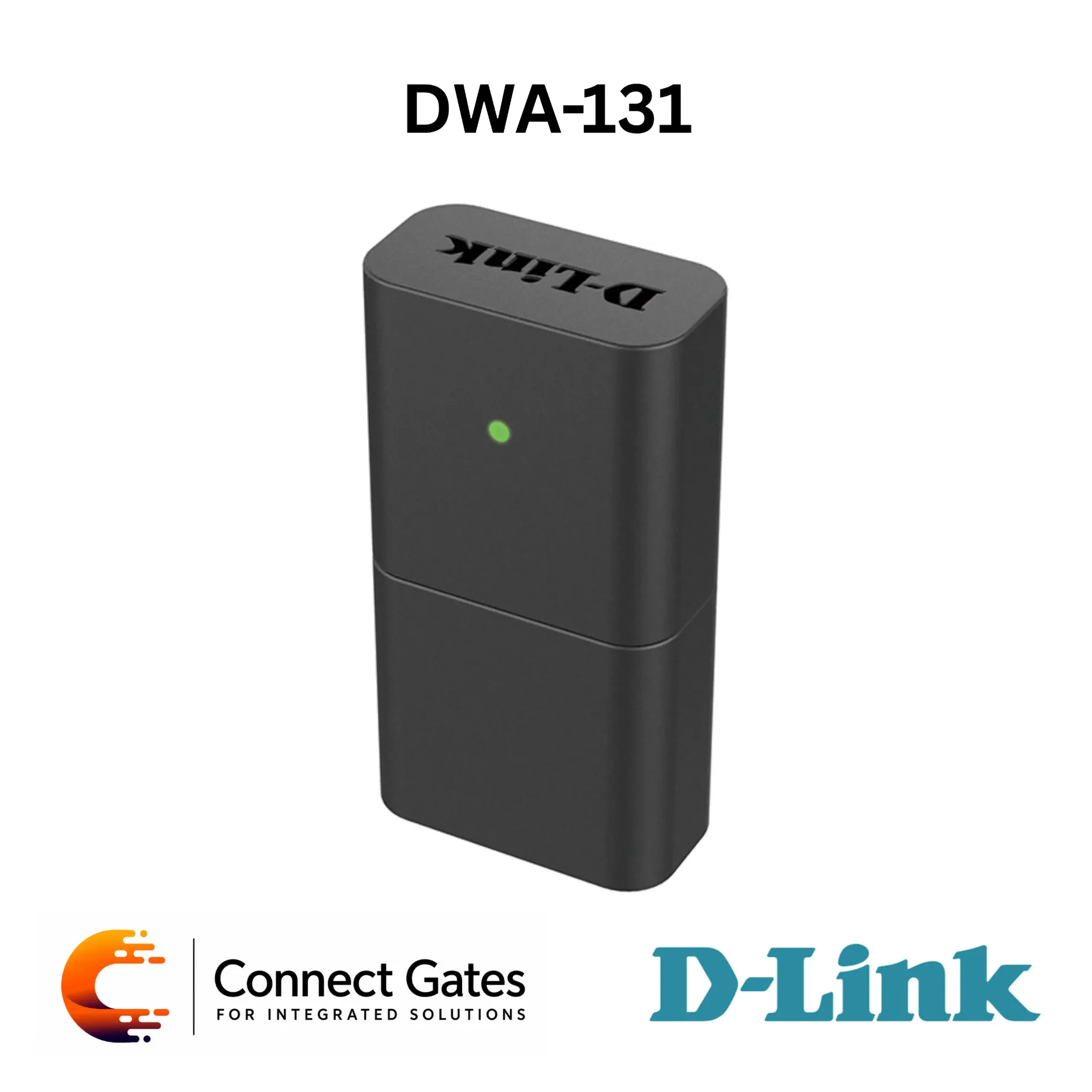

D-Link DWA-131 – Wireless N Nano USB Adapter with USB 2.0, 2.4GHz Wi-Fi, SoftAP Access Point, WPA/WPA2 Security & Windows Support
Overview:
• The D-Link DWA-131 is a Wireless N Nano USB Adapter designed to add or upgrade wireless connectivity for desktop and laptop computers.
• It connects the computer to a high-speed wireless network and provides fast wireless performance with superior reception for browsing, streaming, online gaming, downloading, digital calls, and file sharing.
• Wireless N technology provides better performance and wider reception than older 802.11g wireless adapters while maintaining backward compatibility with IEEE 802.11g and IEEE 802.11b devices.
• The compact nano design makes the adapter easy to carry and suitable for laptops, desktops, mobile users, and small workstations.
• The adapter plugs into an available USB 2.0 port and instantly adds Wireless N connectivity to compatible computers.
• WPA/WPA2 wireless encryption helps protect the wireless connection and prevent unauthorized access.
• SoftAP functionality allows the adapter to act as a portable wireless access point, allowing users to share an internet connection wirelessly with other devices or extend an existing network.
• The Setup Wizard helps users install and configure the adapter easily, while the Status LED provides a quick visual indication of device activity.
Key Features:
• Wireless N Nano USB Adapter
• IEEE 802.11n Wireless Technology
• Backward Compatible with IEEE 802.11g and IEEE 802.11b
• 2.4GHz Wireless Frequency
• USB 2.0 Interface
• Compact Nano Design
• Pocket-Sized for Easy Transport and Storage
• High-Performance Wireless Connectivity
• Excellent Wireless Signal Range
• WPA / WPA2 Wireless Security
• SoftAP Access Point Functionality
• Portable Wireless Access Point Support
• Internet Connection Sharing Support
• Existing Network Coverage Extension Support
• Status LED
• Easy Setup Wizard
• Suitable for Desktop and Laptop Computers
• Supports Browsing, Streaming, Gaming and File Sharing
• Compatible with Windows 8 / 7
• Wi-Fi Certified
• Windows 8.1 Certified
Technical Specifications:
• Product Type: Wireless N Nano USB Adapter
• Brand: D-Link
• Model: DWA-131
• Wireless Standard: IEEE 802.11n/g/b
• Wireless Technology: Wireless N
• Wireless Frequency Range: 2.4GHz to 2.4835GHz
• Maximum Wireless Output Power EIRP: 16.7dBm
• Interface: USB 2.0
• Antenna Type: Internal Nano Adapter Design
• Security: WPA / WPA2 Wireless Encryption
• SoftAP: Supported
• LED Indicator: Status LED
• Operating System Support: Windows 8 / 7
• USB Requirement: Available USB Port, USB 2.0 Recommended
• Operating Voltage: 5V DC ±10%
• Power Consumption: 360mA
• Dimensions: 30 × 16 × 8.5 mm
• Weight: 27.22g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 75°C
• Operating Humidity: 0% to 90% Non-Condensing
• Storage Humidity: 5% to 95% Non-Condensing
• Certifications: CE, FCC, Wi-Fi Certified, C-Tick, IC, Windows 8.1 Certified
• Ordering Information: DWA-131 – Wireless N Nano USB Adapter
Applications:
• Adding Wi-Fi to desktop computers
• Upgrading laptop wireless connectivity
• Connecting PCs to Wireless N networks
• Home Wi-Fi network access
• Office wireless network access
• Internet browsing
• Video and music streaming
• Online gaming
• Digital phone calls
• Downloading and file sharing
• Portable wireless adapter for travel use
• Creating a portable access point using SoftAP
• Sharing internet connection wirelessly with other devices
• Extending wireless network coverage using SoftAP
• Compact USB Wi-Fi adapter for daily use
Connect Gates Recommendation:
• Recommended for users who need a compact Wireless N USB adapter for basic Wi-Fi connectivity with SoftAP access point functionality.
• Suitable for laptops, desktops, home users, small offices, technicians, and customers who need a portable 2.4GHz Wi-Fi adapter for browsing, streaming, and daily internet usage.
