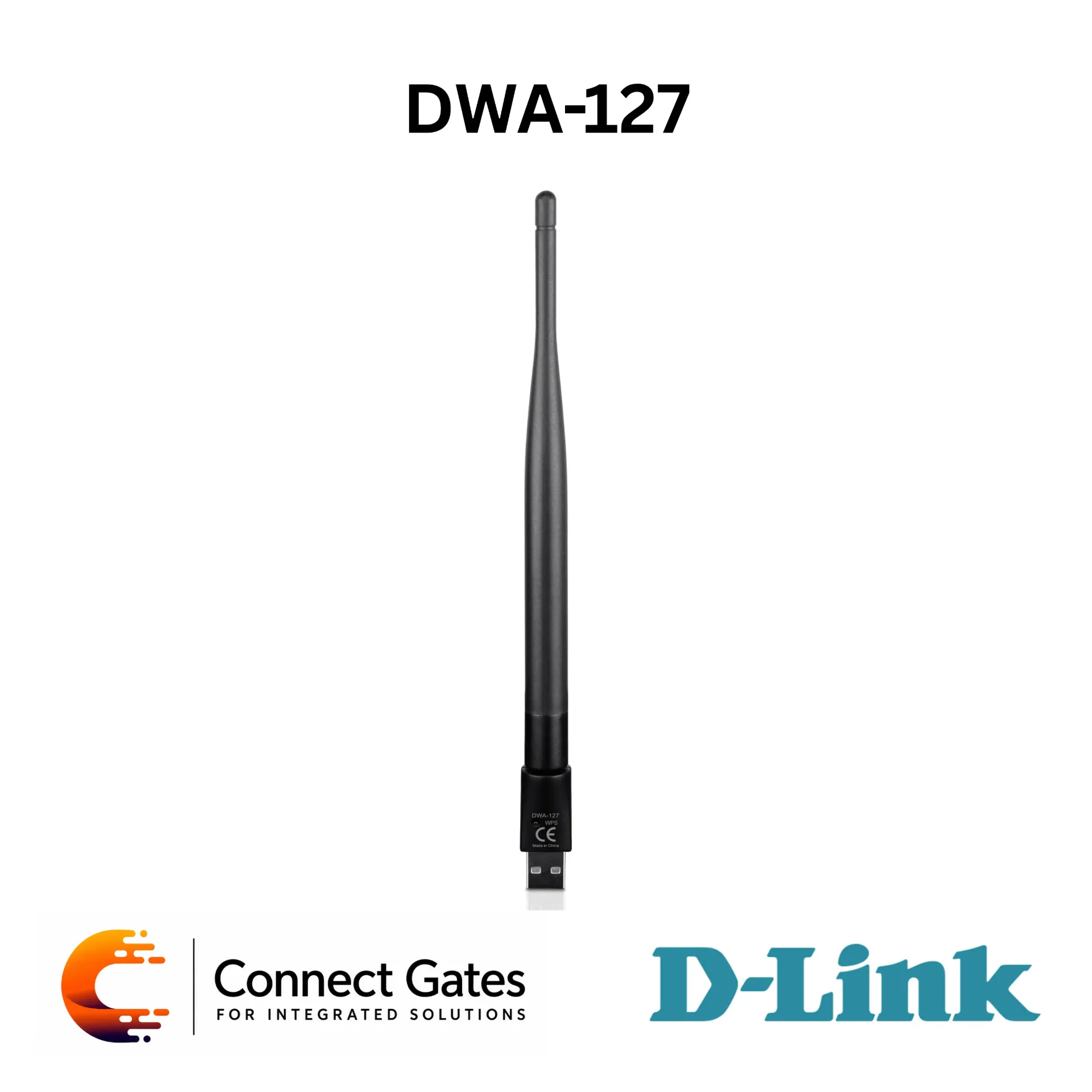

D-Link DWA-127 – Wireless N150 High-Gain USB Adapter with USB 2.0, 2.4GHz Wi-Fi, Rotatable 3dBi Antenna, WPA/WPA2 Security & WPS
Overview:
• The D-Link DWA-127 is a Wireless N150 High-Gain USB Adapter designed to connect notebook and desktop computers to a wireless home or office network.
• It uses Wireless N150 technology to deliver faster speed and greater range compared to older 802.11g/b wireless standards.
• The adapter allows users to share a high-speed Internet connection and access shared documents, music, and photos from other devices on the network.
• The high-gain antenna helps boost wireless signal reception and coverage for a stronger and more reliable connection.
• The rotatable antenna design allows better positioning to reduce dead spots and improve wireless connectivity.
• USB 2.0 connectivity, Quick Setup Wizard, and WPS support make installation simple and suitable for both desktop PCs and laptops.
Key Features:
• Wireless N150 Technology: Provides improved speed and range compared to 802.11g/b.
• High-Gain Antenna: Rotatable 3dBi antenna improves wireless reception and coverage.
• USB 2.0 Interface: Easy connection to notebooks and desktop computers.
• 2.4GHz Wireless Band: Operates on 2.4GHz to 2.4835GHz frequency range.
• Secure Wireless Connection: Supports WPA and WPA2 wireless security.
• WPS Support: Supports WPS PIN and PBC for easy secure connection.
• Backward Compatibility: Compatible with IEEE 802.11n/g/b wireless networks.
• Portable Design: Adds Wireless N connectivity to any computer with an available USB port.
• Status LED: Includes LED indicator for device status.
Technical Specifications:
• Product Type: Wireless High-Gain USB Adapter
• Model: DWA-127
• Wireless Technology: Wireless N150
• Interface: USB 2.0 Connector
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency Range: 2.4GHz to 2.4835GHz
• Antenna: 3dBi Dipole Antenna
• Antenna Type: Rotatable High-Gain Antenna
• Security: WPA, WPA2
• WPS: Supported – PIN & PBC
• LED Indicator: Status LED
• Operating Systems: Windows 8, Windows 7, Windows Vista, Windows XP
• Required Interface: Available USB Port
• Operating Voltage: 5V DC ±10%
• Maximum Power Consumption: 360mA
• Dimensions: 210.0 × 15.4 × 16.0 mm
• Weight: 12.8g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 75°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Certifications: CE, Wi-Fi Certified, IC, Windows 8 Certified
• Order Information: DWA-127 – Wireless N150 High-Gain USB Adapter
Applications:
• Connecting desktop PCs to wireless networks.
• Connecting laptops to home or office Wi-Fi networks.
• Improving wireless reception in areas with weak signal.
• Web browsing, e-mail, online chatting, and everyday internet usage.
• Accessing shared documents, music, and photos across the network.
• Suitable for home users, small offices, and service use where stronger Wi-Fi reception is required.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-127 for users who need a stronger wireless USB adapter than standard compact Wi-Fi dongles.
• It is a suitable choice for desktop PCs or laptops that require improved wireless reception and wider coverage through a high-gain antenna.
• The rotatable 3dBi antenna makes it useful in locations where signal direction and device placement affect Wi-Fi stability.
• With WPA/WPA2 security and WPS support, the DWA-127 provides both secure connection and easy setup.
• This adapter is recommended for home and small office users who need reliable Wireless N connectivity for browsing, e-mail, file sharing, streaming, and general network access.
