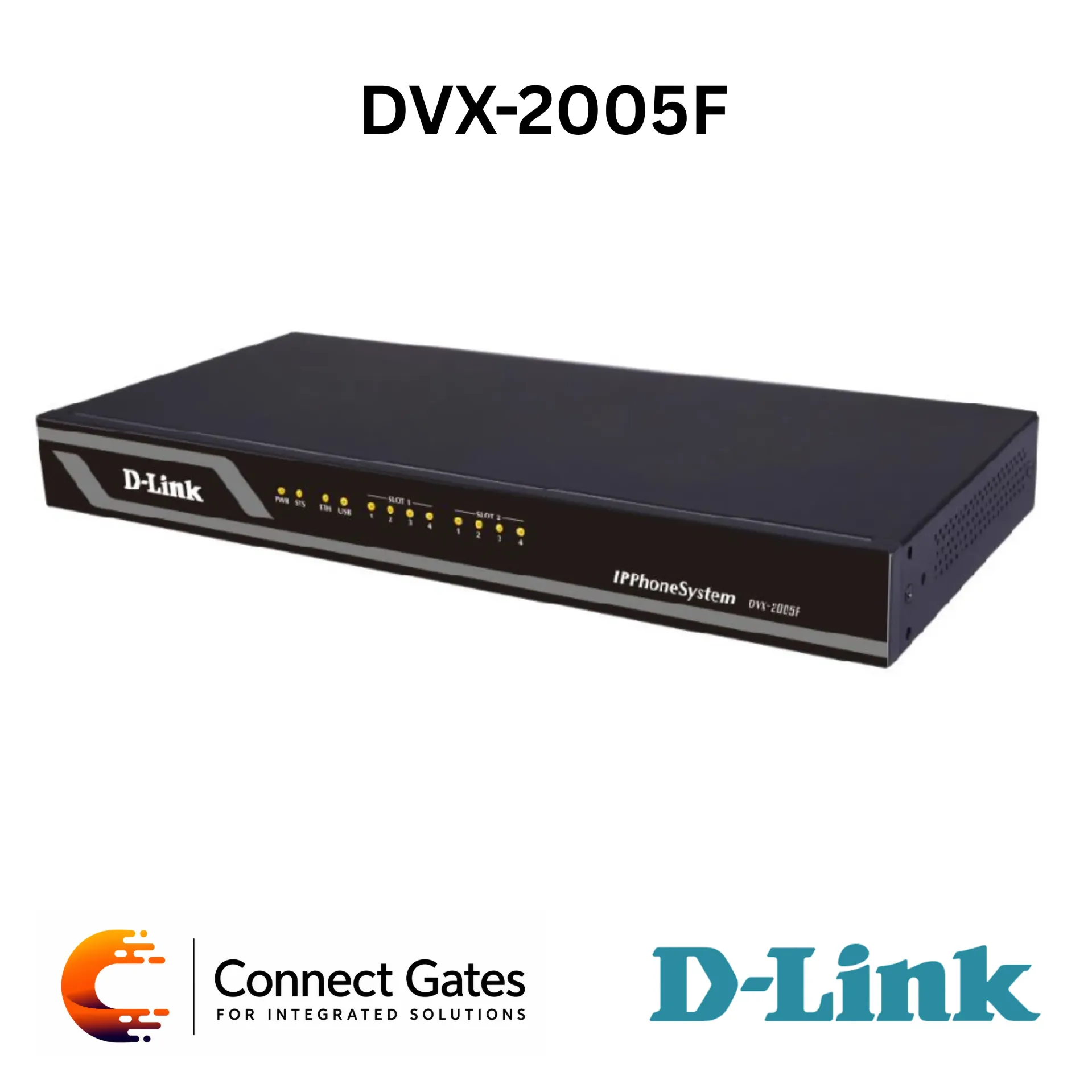

D-Link DVX-2005F – IP PBX System with 100 Extensions, 30 Concurrent Calls, Built-in 4 FXO Ports, SIP/IAX Trunks & Auto Attendant

• The D-Link DVX-2005F is an all-in-one IP PBX system designed for small and medium business communication.

• It provides traditional PBX features such as call hold, call forwarding, call waiting, video calls, voicemail, auto attendant, and hunt groups.

• The system supports up to 100 IP phone registers/extensions and up to 30 concurrent calls.

• It can be configured as a core IP PBX or hybrid PBX, allowing calls to be routed through IP networks or analog POTS lines.

• The DVX-2005F supports built-in 4 FXO ports and can be expanded up to 8 FXO ports using additional analog modules.

• It includes advanced features such as visual operator, voicemail to email, multimedia music on hold, IVR, conference rooms, call recording, WebRTC/Web Dial, SIP trunk, Skype for SIP, SRTP, T.38 fax passthrough, and VPN support.

• All-in-one IP PBX system for SMEs

• Supports up to 100 IP phone registers / extensions

• Supports up to 30 concurrent calls

• Built-in 4 FXO ports

• Expandable up to 8 FXO ports

• Configurable as core IP PBX or hybrid PBX

• Supports SIP and IAX2 protocols

• Supports SIP trunk and IAX trunk

• Supports call hold, call forwarding, call waiting, and follow me

• Supports video calls

• Auto attendant support

• IVR and conference bridge support

• Voicemail and voicemail to email

• Fax to email support

• Call recording and one-touch recording

• Call queue and call routing

• Built-in ACD system for call center use

• Remote IP agent capabilities

• Advanced skills-based routing

• Web-based configuration and management

• Supports multi-language prompts and multi-language GUI

• Supports WebRTC / Web Dial

• Supports VPN client and VPN server

• Suitable for SMEs, branch offices, and hybrid IP/analog telephony systems

• Product Type: IP PBX System

• Model: DVX-2005F

• System Capacity: Up to 100 IP Phone Registers / Extensions

• Concurrent Calls: 30 Concurrent Calls

• Built-in Analog Ports: 4 FXO Ports

• Expansion: Up to 8 FXO Ports

• Processor: Dual Core A7 1GHz

• Memory: DDR3 1GB

• Storage: 8GB SD Card

• Recording Capacity: 36,000 minutes in .gsm / 4,000 minutes in .wav

• Voicemail Capacity: 36,000 minutes in .gsm / 4,000 minutes in .wav

• Hardware Interfaces: 1 Reset Button, 1 Power Interface, 2 Ethernet Interfaces, 1 Console Interface, 1 USB Interface, Slot 1/2 for Analog

• Power Supply Input: AC 100–240V, 50/60Hz

• Power Supply Output: DC 12V / 2A

• Working Temperature: 0°C to 40°C

• Storage Temperature: -20°C to 55°C

• Humidity: 5% to 95% non-condensing

• Dimensions: 280 × 150 × 65 mm

• Weight / Unit: 0.8 kg

• Units / Carton: 10 Units

• Weight / Carton: 10 kg

• Black List

• BLF Busy Lamp Field

• CDR Call Detailed Record

• Conference Room: 20 Rooms

• Call Monitoring

• DID Direct Inward Dialing Number

• DISA Direct Inward System Access

• Distinctive Ringtone

• Do Not Disturb

• DNIS Dialed Number Identification Service

• Feature Codes

• FOP Flash Operator Panel

• Status Monitoring

• Follow Me

• IVR Interactive Voice Response

• Mobility Extension

• Multi-Language Prompts

• Multi-Language GUI

• One Touch Recording

• Phone Book with LDAP Server

• Phone Provisioning

• PIN Set

• Record File Download

• Ring Group

• SIP Register with UDP / TCP / TLS

• SIP Trunk

• Skype for SIP

• Smart DID

• Speed Dial

• Spy

• SRTP Secure Real-Time Transport Protocol

• T.38 Fax Pass-through

• Time Based Rule

• Fax to Email

• WebRTC / Web Dial

• Voicemail and Voicemail to Email

• Call Back

• Call Forward

• Call Group

• Call Hold

• Call Paging and Intercom

• Call Park

• Call Pickup

• Call Queue

• Call Recording

• Call Routing

• Blind Transfer

• Attendant Transfer

• Call Waiting

• Caller ID

• Dial by Name

• Music on Hold / Transfer

• 3-Way Conference

• Video Calls

• DDNS Client

• DHCP Server

• IPv4 / IPv6 / IEEE 802.1Q

• IP Assignment: PPPoE / DHCP / Static

• SNMP v1 / v2

• TR-069

• Static Route Table

• Troubleshooting: Ping / Traceroute

• VPN Client: L2TP / PPTP / OpenVPN / N2N / IPSec

• VPN Server: L2TP / PPTP / OpenVPN / IPSec

• PBX Log

• Web Access Log

• PBX Debug Log

• Audio Codecs: G.722, G.711-Ulaw, G.711-Alaw, G.726, G.729, GSM, SPEEX

• Video Codecs: H.261, H.263, H.263+, H.264

• Protocols: SIP RFC3261, IAX2

• DTMF: RFC2833, SIP INFO, In-Band

• Configurable as core IP PBX or hybrid PBX

• Switches calls and manages routes

• Connects callers to the outside world over IP or analog POTS

• Supports built-in 4 FXO ports

• Expandable up to 8 FXO ports

• Configurable as media gateway

• Bridges legacy PSTN to IP telephony

• Supports conversion between communication protocols and media codecs

• Provides IVR and conference bridge

• Supports automated attendant and unified messaging

• Can replace aging legacy voicemail systems

• Built-in ACD system

• Remote IP agent capabilities

• Advanced skills-based routing

• SME business phone systems

• IP PBX deployments

• Hybrid IP and analog PBX systems

• Branch office telephony

• Call center systems

• SIP trunk and IAX trunk integration

• Voicemail and auto attendant systems

• Multi-branch communication

• Offices requiring up to 100 extensions

• Companies migrating from traditional PBX to IP telephony

• Recommended for small and medium businesses that need a complete IP PBX system with both IP and analog connectivity.

• Suitable for companies that need up to 100 extensions, SIP trunking, voicemail to email, auto attendant, IVR, call recording, and conference features.

• The built-in 4 FXO ports and expansion up to 8 FXO ports make it practical for hybrid installations where analog PSTN lines are still required.

• A strong choice for offices and branch locations that need professional PBX features with easy web-based administration and future scalability.
