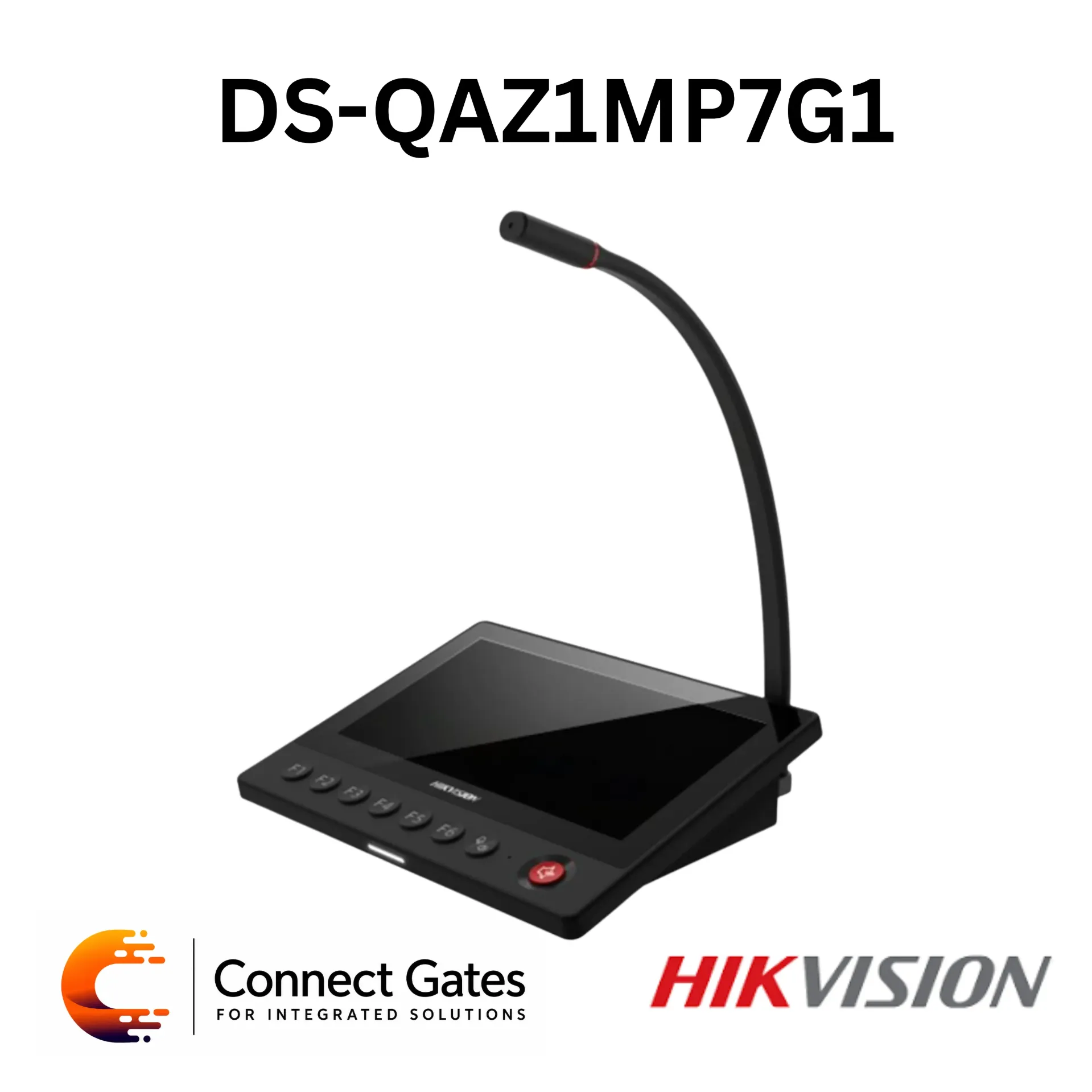

Hikvision DS-QAZ1MP7G1 – 7-inch Paging Microphone with Touch Screen & PoE
Overview:
The Hikvision DS-QAZ1MP7G1 is a 7-inch paging microphone designed for IP public address and broadcasting systems. It supports live broadcasting, scheduled broadcasting, emergency broadcasting, TTS, partition management, emergency call, wired network access, and standard PoE power supply, making it suitable for professional paging and centralized audio control applications.
Key Features:
• 7-inch Color IPS Touch Screen
• 1024 × 600 Touch Display Resolution
• Live Broadcasting Support
• Scheduled Broadcasting Support
• Emergency Broadcasting Support
• TTS Text-to-Speech Support
• Partition / Zone Management Support
• Emergency Call Function
• Up to 6 Shortcut Options F1 to F6
• 3.5 mm Audio Input Support
• Gooseneck Microphone
• Built-in Local Microphone
• Built-in Local Speaker
• Echo Cancellation Support
• Wired Network Access
• Standard PoE Power Supply Support
• Compatible with HikCentral Professional
• TF Card Local Storage Support
Technical Specifications:
• Model: DS-QAZ1MP7G1
• Product Type: 7-inch Paging Microphone
• Display Screen: 7-inch IPS touch screen
• Screen Resolution: 1024 × 600
• Network Protocol: ISAPI, ISUP
• Client Software: HikCentral Professional
• Network Interface: 1 × Network Interface
• Local Storage: TF Card Supported
• Audio Bit Rate: MP3, 128 Kbps
• Echo Cancellation: Supported
• Gooseneck Microphone Frequency Response: 100Hz to 15KHz
• Built-in Microphone Frequency Response: 100Hz to 10KHz
• Audio Input: Gooseneck MIC, Line In, Local MIC
• Line Input: 1 × 3.5 mm jack, 0 dBV, 100 kΩ, unbalanced
• Audio Output: Line Out, Local Speaker
• Line Output: 1 × 3.5 mm jack, 0 dBV, unbalanced
• Buttons: Physical buttons and on-screen buttons
• Power Supply: 12 VDC
• Power Consumption: Max. 10W
• System Requirement: Embedded operating system
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 10% to 90%
• Dimensions: 186.7 × 144.7 × 49.6 mm
Applications:
• IP public address systems
• Emergency broadcasting systems
• Schools and universities
• Factories and warehouses
• Commercial buildings
• Shopping malls
• Hotels and office buildings
• Central paging and zone broadcasting systems
Connect Gates Recommendation:
Recommended for projects that require a professional IP paging control microphone with touchscreen operation, partition management, emergency broadcasting, TTS support, PoE connectivity, and HikCentral Professional integration. Suitable for centralized PA systems where fast zone selection and emergency announcements are required.
