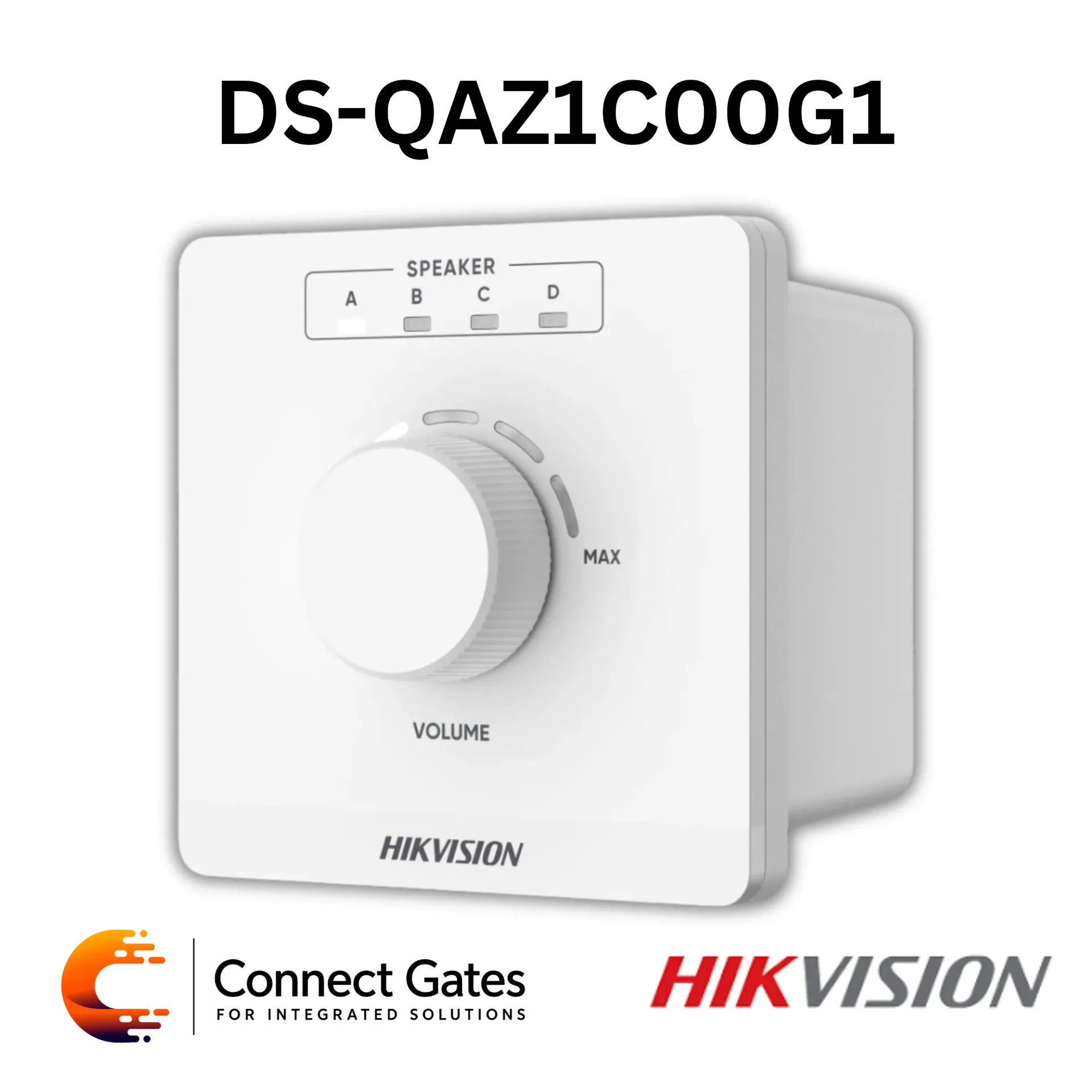

Hikvision DS-QAZ1C00G1 – Network Volume Controller for Network Speakers & Amplifiers
Overview:
The Hikvision DS-QAZ1C00G1 is a Network Volume Controller designed for public address and IP audio systems. It supports controlling the volume of network speakers and network amplifier products, with real-time infinite rotary knob adjustment, channel switching by pressing the knob, and wall-mount installation, making it suitable for centralized or local volume control in network-based PA systems.
Key Features:
• Network volume controller
• Controls volume of network speakers
• Controls volume of network amplifier products
• Supports infinite rotary knob adjustment
• Supports real-time volume control
• Knob supports press operation
• Press the knob to switch and control different channels
• Supports wall mounting
• Made of flame-retardant PC material
• Single channel controls up to 16 network products
• 4 channels control up to 64 network products
• Supports one-to-one volume control
• Supports one-to-many volume control
• LED indicators for channel selection
• LED indicators for volume level
• PoE power supply
• Compact 86 × 86 mm wall-mounted design
Technical Specifications:
• Model: DS-QAZ1C00G1
• Product Type: Network Volume Controller
• Interface Protocol API: ISAPI, OTAP
• Channel Control: 4 channels
• Single Channel Capacity: Up to 16 network products
• Total Control Capacity: Up to 64 network products
• Control Method: Infinite rotary knob
• Knob Function: Press to switch channels
• LED Indicator: Top 4 lights for channel selection
• Volume Indicator: Bottom 5 lights for volume level
• Power Supply: PoE IEEE 802.3af Class 1
• Power Current: Max. 500mA
• Power Consumption: 3W
• Material: PC
• Color: White
• Dimensions: 86 × 86 × 74.7 mm
• Weight: 113.6 g
• Package Weight: 167 g
• Operating Temperature: -10°C to 50°C
• Operating Humidity: <90%
• Packing List: Network Volume Controller ×1, Regulatory Compliance and Safety Information ×1
Applications:
• Public address systems
• IP audio systems
• Network speaker volume control
• Network amplifier volume control
• Offices and commercial buildings
• Hotels and hospitality areas
• Shopping malls and retail areas
• Schools and universities
• Meeting rooms and corridors
• Local wall-mounted volume control points
Connect Gates Recommendation:
Recommended for projects that require a wall-mounted network volume controller for IP speakers and network amplifiers, with real-time rotary control, multi-channel switching, PoE power, and support for controlling up to 64 network audio devices. Suitable for commercial PA systems where users need easy local control over zone or channel volume.
