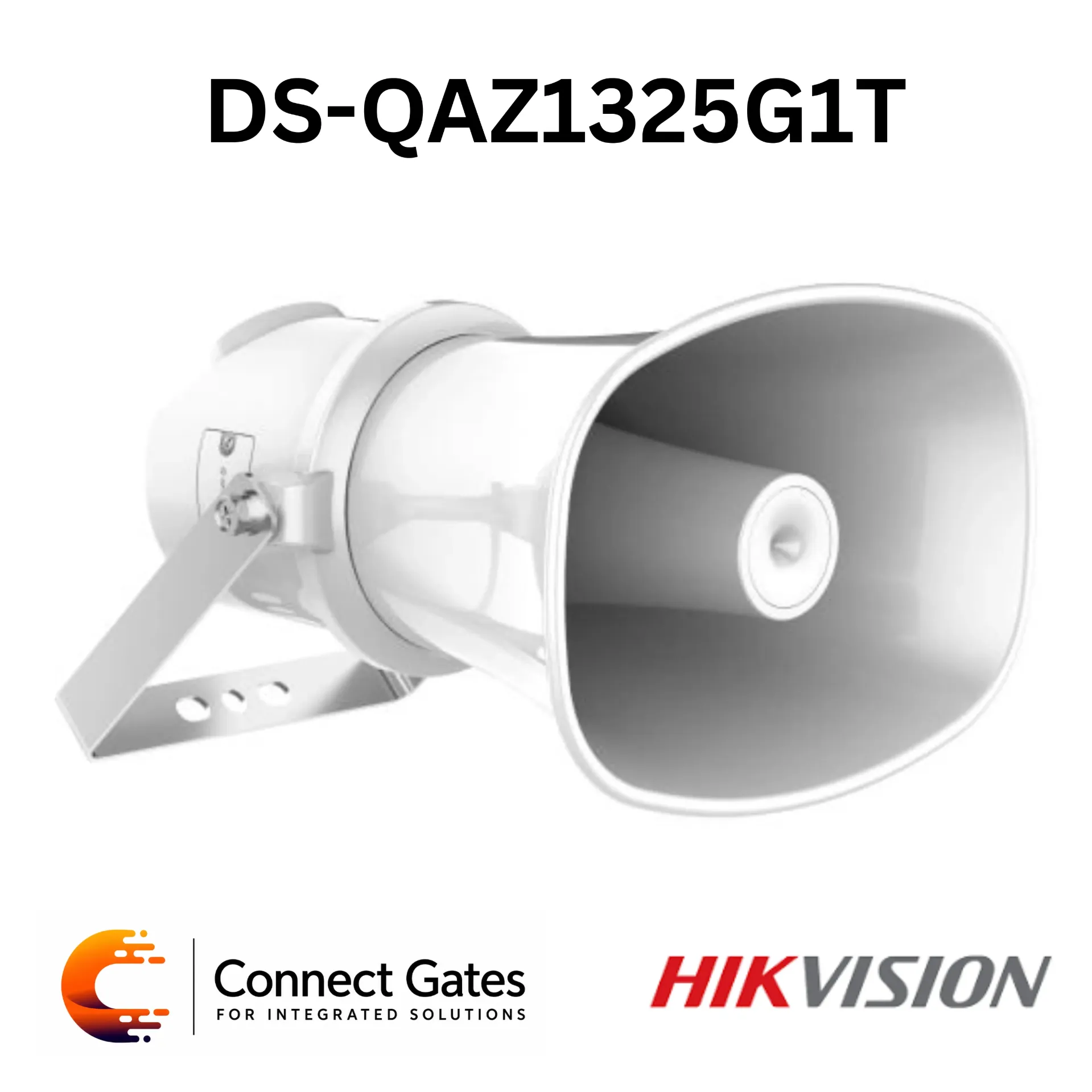

Hikvision DS-QAZ1325G1T – 25W Network Horn Speaker with Two-Way Audio, TTS & IP67 Protection
Overview:
The Hikvision DS-QAZ1325G1T is a 25W Network Horn Speaker designed for professional IP public address, outdoor broadcasting, emergency announcement, and security audio applications. It supports regular broadcast, live broadcast, emergency broadcast, alarm input, audio linkage, TTS speech synthesis, and two-way audio by SIP, with metal housing and IP67 protection for reliable outdoor operation.
Key Features:
• 25W network horn speaker
• Supports regular broadcast
• Supports live broadcast
• Supports emergency broadcast
• Supports alarm input and audio linkage
• Supports TTS speech synthesis
• Supports text broadcasting
• Supports two-way audio by SIP
• Built-in dual electret microphones
• 124dB SPL maximum acoustic pressure
• 110dB sensitivity at 1m / 1W
• 70° horizontal by 100° vertical sound direction
• Built-in NOR Flash + EMMC dual storage
• Supports dual system backup
• Supports secure startup
• Supports user login locking mechanism
• Supports password complexity prompts
• Supports security audit log traceability
• Supports batch unified management through IP network
• Supports local WEB configuration
• Supports local audio collection and playback
• Built-in 4GB EMMC local storage
• Audio file storage up to 1GB
• Metal housing
• IP67 outdoor protection
Technical Specifications:
• Model: DS-QAZ1325G1T
• Product Type: 25W Network Horn Speaker
• Rated Power: 25W
• Speaker Impedance: 8Ω
• Max. Acoustic Pressure: 124dBSPL
• Sensitivity: 110dB at 1m / 1W
• Direction: 70° Horizontal × 100° Vertical
• Speaker Frequency Response: 300Hz to 8kHz
• SNR: 83dB
• Microphone Type: Electret
• Microphone Quantity: 2
• Microphone Frequency Response: 100Hz to 20kHz
• Microphone Sensitivity: -42dBV/Pa
• Sampling Rate: 48kHz
• Quantization Bits: 16-bit
• Audio Algorithm: AEC, AGC, ANS, DRC
• Audio Bit Rate: G.711ulaw 64Kbps, G.711alaw 64Kbps, MP3 128Kbps
• Audio File Format: MP3, WAV
• NTP Timing: Supported
• Broadcast Modes: Regular Broadcast, Live Broadcast, Emergency Broadcast
• Two-Way Audio: Supported
• Speech Synthesis: English
• Network Protocol: IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface Protocol API: ISAPI, ISUP, SIP, RTP
• Client Support: Hik-Connect, iVMS-4200, HikCentral Professional, Hik-Partner Pro, NVR, Milestone
• Communication Method: Wired Network Communication
• Ethernet Interface: 1 × RJ45 10M / 100M Adaptive Ethernet Port
• Alarm Input: 1 × Alarm Input
• Power Output: 12VDC, 25mA Max.
• Local Storage: Built-in 4GB EMMC
• Audio File Storage: 1GB
• API: ISAPI, ISUP
• Reset: Supported
• Material: Metal
• Color: White
• Protection: IP67
• Power Supply: 24VDC, 1167mA, 28W
• Dimensions: 175 × 237 × 272 mm
• Package Dimensions: 310 × 245 × 400 mm
• Weight: Approx. 2.1 kg
• Package Weight: Approx. 3.4 kg
• Operating Temperature: -30°C to 60°C
• Operating Humidity: <90%, non-condensing
• Language Support: English, French, Spanish, German, Italian
• Packing List: Device ×1, Threading Cap ×1, Regulatory Compliance and Safety Information ×1
Applications:
• Outdoor public address systems
• Emergency broadcasting systems
• Security voice warning systems
• Factories and warehouses
• Parking areas and gates
• Schools and universities
• Industrial facilities
• Perimeter warning systems
• Outdoor announcement systems
• IP-based audio and alarm linkage systems
Connect Gates Recommendation:
Recommended for projects that require a powerful outdoor IP horn speaker with 25W output, two-way audio, TTS speech synthesis, alarm linkage, local storage, network management, and IP67 weather protection. Suitable for security, emergency broadcasting, perimeter warning, and outdoor public address applications.
