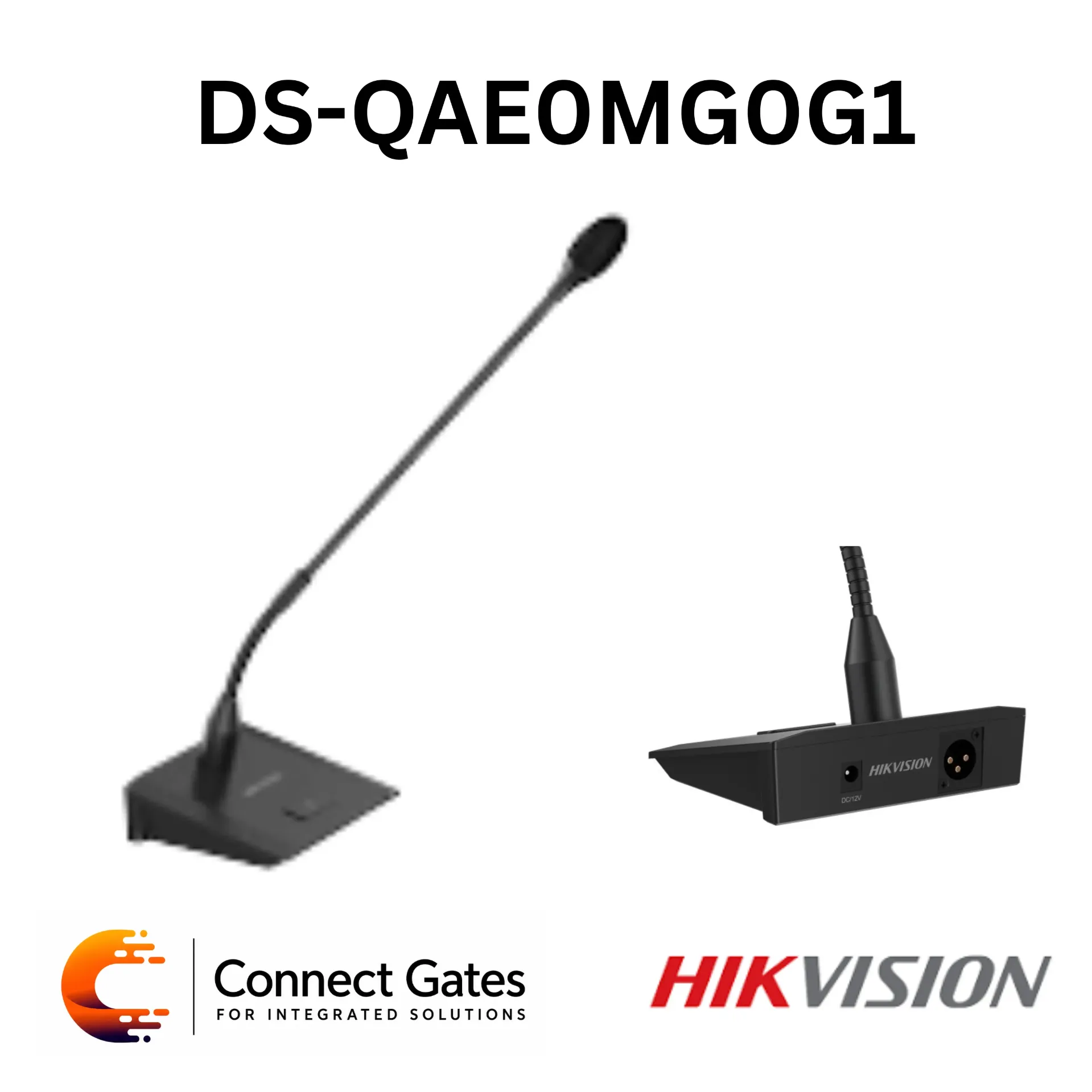

Hikvision DS-QAE0MG0G1 – Gooseneck Paging Microphone with High Sensitivity, Flexible Gooseneck & 12VDC / 48V Phantom Power Support
Overview:
The Hikvision DS-QAE0MG0G1 is a Gooseneck Paging Microphone designed for professional public address, paging, broadcasting, and surveillance center communication applications. It features high SNR, balanced frequency response, high-sensitivity low-noise pre-amplification, and a flexible gooseneck design, allowing clear speech pickup and reliable audio transmission for control rooms, reception desks, and PA operation points.
Key Features:
• Gooseneck paging microphone
• High SNR and balanced frequency response
• High-sensitivity low-noise pre-amplification circuit
• Clearly captures long-distance speech sound
• Provides high-quality audio transmission
• Flexible gooseneck design
• Adjustable microphone angle and direction
• Integrated structure helps avoid shaking and poor contact
• Droplet-shaped pickup design reduces sound field influence
• Compatible with 12VDC power supply
• Compatible with 48V phantom power supply
• High-quality components with strict reliability testing
• Supports surveillance center calls
• Built-in key indicator
• Built-in sound inlet basket indicator
Technical Specifications:
• Model: DS-QAE0MG0G1
• Product Type: Gooseneck Paging Microphone
• Microphone Type: Electret
• Pickup Range: 0.5 m
• Frequency Response: 20Hz to 20kHz
• Sensitivity: -30dB
• SNR: 70dB
• Dynamic Range: 80dB
• Acoustic Overload Point: 104dB
• Sound Inlet Basket Dimension: Ø9.7 mm
• LEQ: ≤24dB
• Gooseneck Adjustment Angle: 360°
• Input Current: ≤10mA
• Impedance: 120Ω
• LED Indicator: Key Indicator, Sound Inlet Basket Indicator
• Power Supply: 48V Phantom Power / 12VDC
• Base Dimensions: 35 × 98 × 119 mm
• Gooseneck Length: 409 mm
• Weight: Approx. 0.59 kg
• Operating Temperature: Max. 35°C
• Available Model: DS-QAE0MG0G1
Applications:
• Public address systems
• Paging systems
• Surveillance center calls
• Control rooms
• Reception desks
• Security operation centers
• Broadcast desks
• Office announcement points
• Schools and universities
• Commercial buildings
• Hotels and administrative facilities
Connect Gates Recommendation:
Recommended for projects that require a professional paging microphone with clear voice pickup, flexible gooseneck adjustment, high sensitivity, low-noise audio performance, and support for 12VDC / 48V phantom power. Suitable for PA systems, control rooms, surveillance centers, and central announcement points where reliable speech transmission is required.
