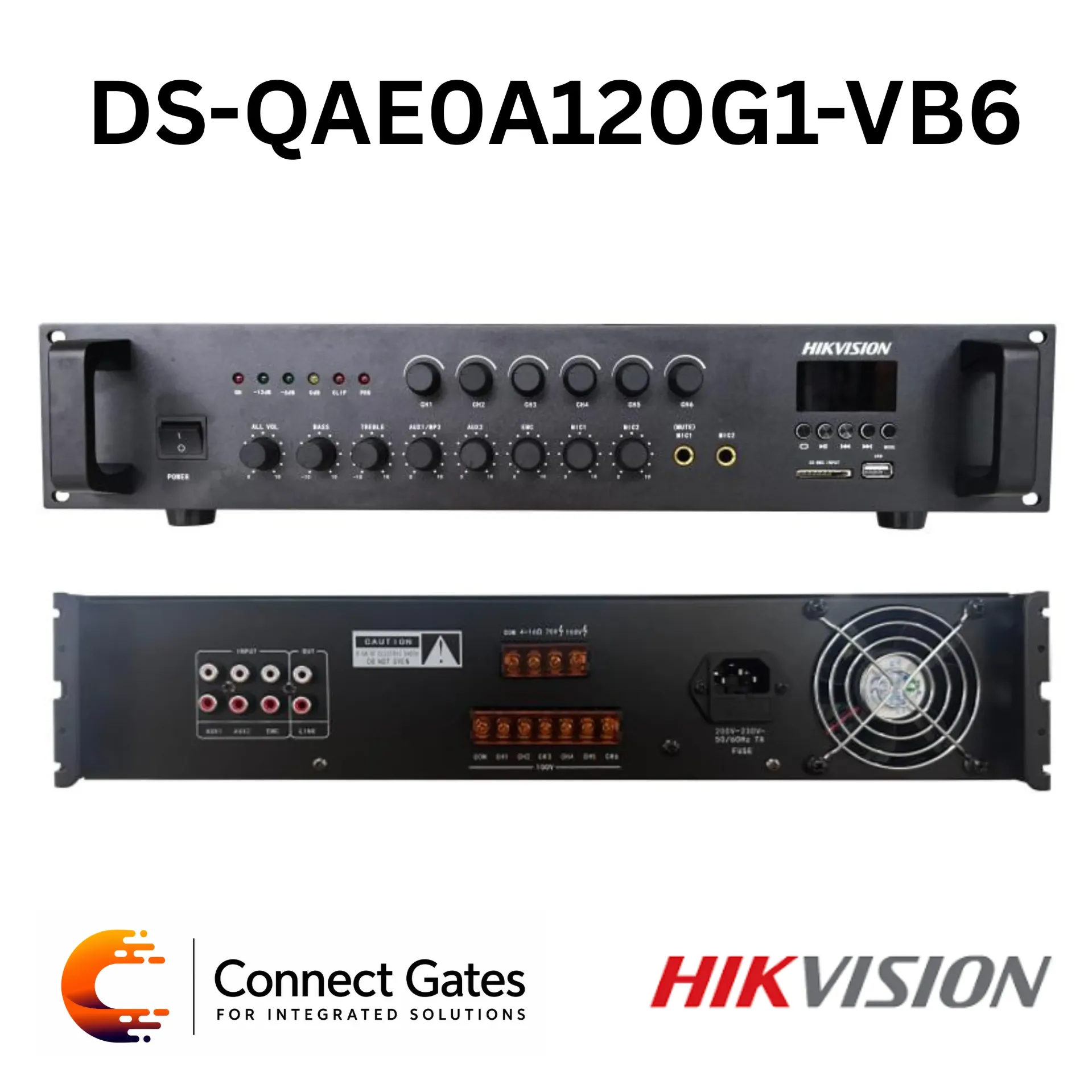

Hikvision DS-QAE0A120G1-VB6 – 120W 6-Zone Analog PA Amplifier with EMC, MIC, AUX, Bluetooth, USB & SD Card Inputs
Overview:
The Hikvision DS-QAE0A120G1-VB6 is a 120W 6-Zone Analog Amplifier designed for professional public address, background music, and multi-zone audio broadcasting applications. It supports multiple audio inputs including EMC, MIC, AUX, Bluetooth, USB, and SD Card, with 6-zone partition output, independent zone volume control, bass and treble adjustment, and cabinet installation, making it suitable for commercial and small-to-medium PA systems.
Key Features:
• 120W 6-zone analog amplifier
• Supports 6-zone partition output
• Supports EMC audio input
• Supports 2 microphone inputs
• Supports 2 AUX inputs
• Supports Bluetooth input
• Supports USB 2.0 input
• Supports SD card input
• Supports 110V constant voltage output
• Supports 70V constant voltage output
• Supports 4Ω to 16Ω constant impedance output
• Independent 6-zone volume adjustment
• Dedicated MIC volume control
• Dedicated AUX / MP3 volume control
• Dedicated EMC volume control
• Bass and treble adjustment
• Built-in level indicator lights
• Built-in MP3 module
• Built-in power amplifier cooling fan
• Suitable for cabinet installation
• Durable iron housing
• Black professional rack-style design
Technical Specifications:
• Model: DS-QAE0A120G1-VB6
• Product Type: 120W 6-Zone Analog Amplifier
• Rated Power: 120W
• Zones: 6 Zones
• Sensitivity: Line -10dB, EMC -10dB, MIC -40dB, Line 0dB
• Frequency Response: 80Hz to 18kHz ±3dB
• THD: ≤0.5%
• SNR: ≥83dB
• Audio Input: EMC IN ×1, 6.5mm Microphone ×2, AUX IN ×2, Bluetooth, USB 2.0, SD Card
• Audio Output: 110V COM Constant Voltage Output ×1
• Audio Output: 70V COM Constant Voltage Output ×1
• Audio Output: 4Ω to 16Ω COM Constant Impedance Output ×1
• Partition Output: 6 × 110V COM
• Line Output: Line Out ×1
• Volume Controls: MIC Volume ×2, Partition Volume ×6, All Volume ×1
• Tone Controls: Bass Volume ×1, Treble Volume ×1
• Additional Controls: AUX1 / MP3 Volume ×1, AUX2 Volume ×1, EMC Volume ×1
• USB: USB 2.0
• Power Supply: 200V to 230VAC, 50/60Hz, 5A
• Material: Iron
• Color: Black
• Dimensions: 484 × 88 × 360 mm
• Whole Device Dimensions: 484 × 88 × 395 mm including handle
• Package Dimensions: 540 × 165 × 450 mm
• Weight: Approx. 9.2 kg
• Package Weight: Approx. 9.5 kg
• Operating Temperature: -10°C to +40°C
• Operating Humidity: 20% to 80% RH
• Installation: Cabinet Installation
• Packing List: One Machine ×1, Power Cord ×1
• Available Model: DS-QAE0A120G1-VB6
Applications:
• Public address systems
• Background music systems
• Multi-zone audio systems
• Offices and commercial buildings
• Schools and universities
• Hotels and hospitality areas
• Shopping malls and retail areas
• Restaurants and cafés
• Reception areas
• Indoor announcement systems
• Cabinet-mounted PA systems
Connect Gates Recommendation:
Recommended for projects that require a 120W analog PA amplifier with 6-zone audio distribution, multiple input options, Bluetooth / USB / SD Card playback, EMC priority input, and flexible 110V / 70V / 4Ω–16Ω output support. Suitable for commercial PA, background music, and multi-zone announcement systems where simple analog control and reliable zone-based audio distribution are required.
