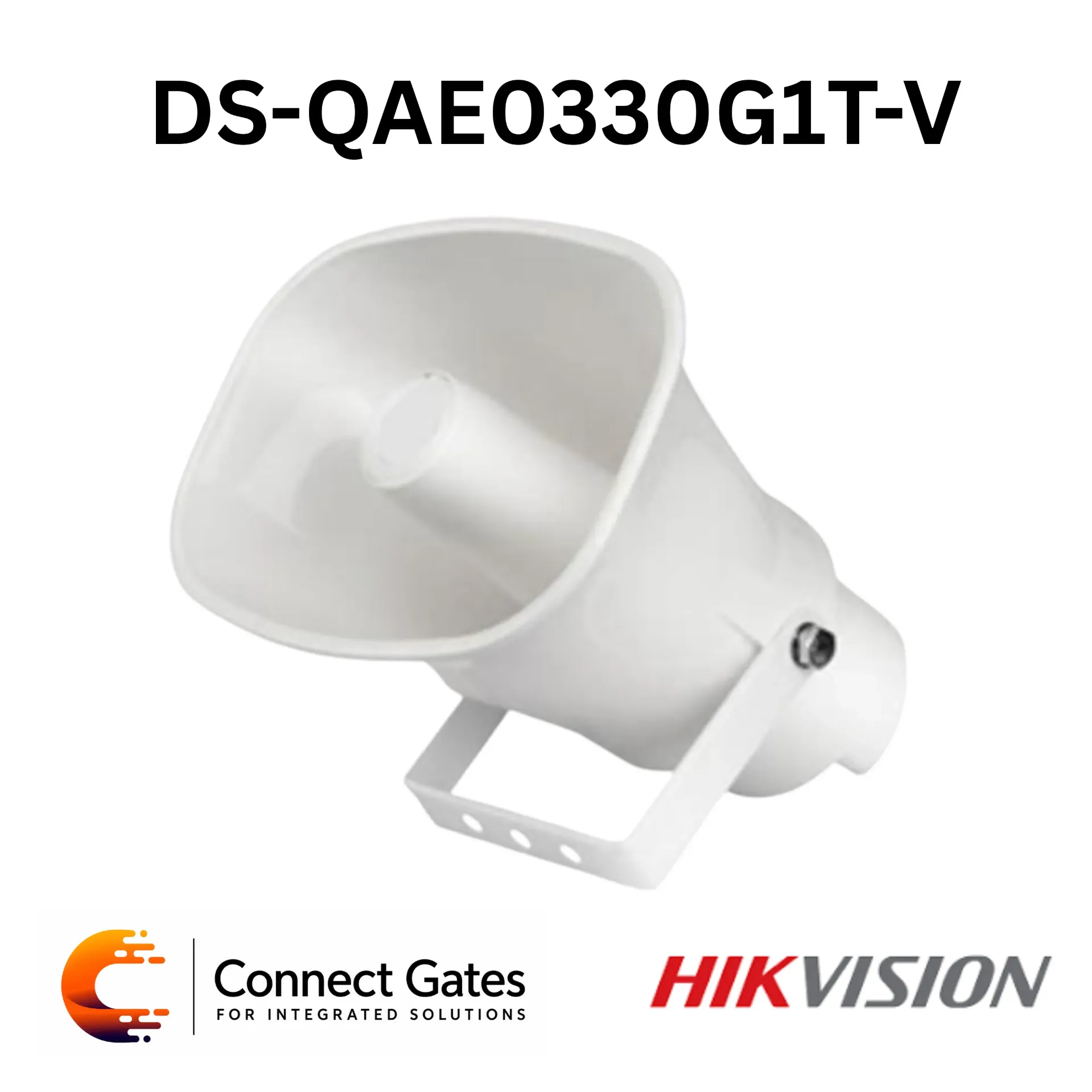

Hikvision DS-QAE0330G1T-V – 30W Analog Horn Speaker with 70V / 100V Power Taps & IP65 Protection
Overview:
The Hikvision DS-QAE0330G1T-V is a 30W Analog Horn Speaker designed for professional public address, outdoor announcements, voice broadcasting, and long-distance audio transmission applications. It features high sensitivity, high sound output, multiple selectable power levels, and IP65 protection, making it suitable for outdoor and semi-outdoor PA system installations.
Key Features:
• 30W analog horn speaker
• Designed for long-distance sound transmission
• High sensitivity audio performance
• High sound output
• Supports multiple power levels
• Supports 70V constant voltage input
• Supports 100V constant voltage input
• 120dBSPL maximum acoustic pressure
• 108dB ±3dB sensitivity
• 250Hz to 8kHz frequency response
• Horizontal 75° coverage angle
• Vertical 90° coverage angle
• Durable ABS housing
• IP65 protection
• Suitable for outdoor PA applications
• White horn speaker design
Technical Specifications:
• Model: DS-QAE0330G1T-V
• Product Type: 30W Analog Horn Speaker
• Rated Power: 30W
• 70V Power Taps: 2.5W / 5W / 7.5W / 15W / 30W
• 100V Power Taps: 5W / 10W / 15W / 30W
• Sensitivity: 108dB ±3dB at 1m / 1W
• Max. Acoustic Pressure: 120dBSPL
• Frequency Response: 250Hz to 8kHz
• Speaker Unit: 34-core 2-inch mid-to-high dome resin film
• Coverage Angle: Horizontal 75°, Vertical 90°
• Material: ABS
• Protection: IP65
• Color: White
• Dimensions: 240 × 220 × 165 mm
• Weight: Approx. 1.48 kg
• Package Weight: Approx. 2.05 kg
• Operating Temperature: -20°C to 55°C
• Operating Humidity: <90%, non-condensing
• Available Model: DS-QAE0330G1T-V
• Packing List: Instructions ×1, Regulatory Compliance and Safety Information ×1
Applications:
• Public address systems
• Outdoor announcement systems
• Voice broadcasting systems
• Factories and warehouses
• Schools and universities
• Parking areas
• Gates and entrances
• Industrial areas
• Commercial buildings
• Emergency announcement points
• Long-distance audio transmission areas
Connect Gates Recommendation:
Recommended for projects that require a 30W analog horn speaker with high SPL, long-distance sound coverage, 70V / 100V power tap flexibility, and IP65 outdoor protection. Suitable for PA systems, industrial announcements, parking areas, gates, and outdoor voice broadcasting applications.
