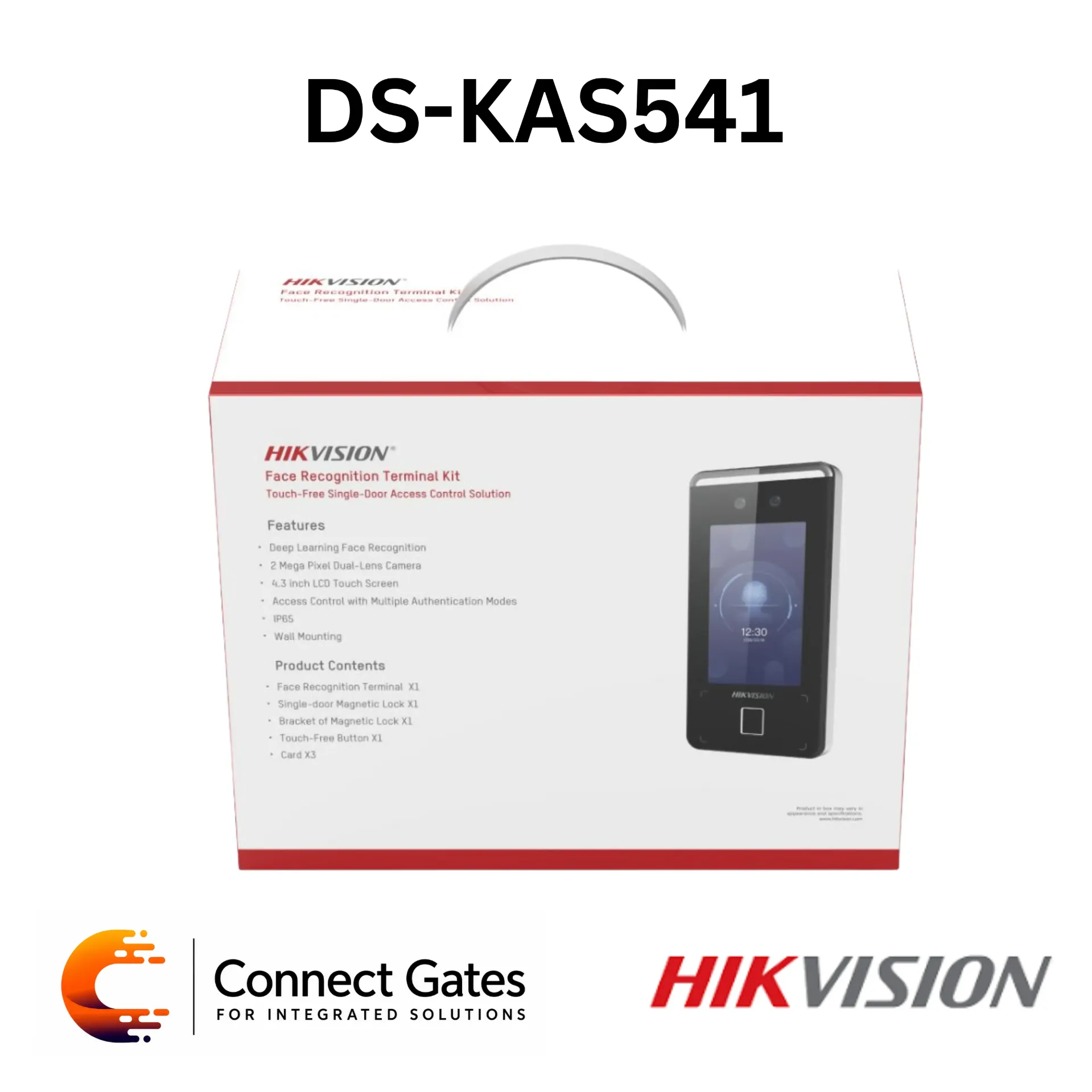

Hikvision DS-KAS541 – Face Recognition Terminal Kit
The Hikvision DS-KAS541 is a professional touch-free face recognition access control kit designed for single-door security and attendance management applications. The kit combines a face recognition terminal, magnetic lock, magnetic lock bracket, touchless exit button, and MIFARE smart cards into one integrated access control solution. Featuring deep learning face recognition, anti-spoofing technology, touch-free authentication, and Hik-Connect remote management, the DS-KAS541 is ideal for modern commercial and enterprise security environments.
Kit Components:
Included Devices:
• DS-K1T341CMF Face Recognition Terminal
• DS-K4H258S Magnetic Lock
• DS-K4H258-LZ Magnetic Lock Bracket
• DS-K7P03 Touch-Free Exit Button
• FM11RF08-M1 MIFARE Smart Cards
Provides a complete single-door access control solution.
DS-K1T341CMF Face Recognition Terminal
System Specifications:
• Operating System:
- Linux
Display:
• 4.3-inch Capacitive Touch LCD Screen
• Resolution:
- 480 × 800
Camera:
• Dual Lens Design
• 2 MP Camera
Face Recognition Performance:
Face Recognition Distance:
• 0.3 m to 1.5 m
Recognition Speed:
• ＜ 0.2 Seconds/User
Recognition Accuracy:
• ≥ 99%
Face Anti-Spoofing:
• Supported
Face Mask Detection:
• Face mask wearing alert
• Forced mask wearing mode support
Provides secure and intelligent touch-free authentication.
Capacity & Storage:
Face Capacity:
• 1,500 Faces
Card Capacity:
• 1,500 Cards
Fingerprint Capacity:
• 1,500 Fingerprints
Event Capacity:
• 150,000 Events
Supports professional attendance and access management.
Authentication Methods:
• Face Recognition
• Fingerprint Authentication
• M1 Card Authentication
• Multi-authentication support
Communication & Interface:
Network:
• 10/100/1000 Mbps Self-Adaptive Ethernet
Interfaces:
• Network Interface ×1
• Lock Control ×1
• Exit Button ×1
• Door Contact Input ×1
• TAMPER ×1
• RS-485 ×1
• Wiegand ×1
• USB ×1
Supports professional access control integration.
Smart Features:
• QR code recognition support
• Audio prompt support
• Time synchronization support
• Capture linkage & captured image storage
• Local device management support
• USB import/export support
• Stand-alone operation support
• Web client configuration support
• Hik-Connect remote door opening & live view
Supports ISAPI and ISUP 5.0 protocols.
Attendance Management:
Supported Attendance Status:
• Check In
• Check Out
• Break In
• Break Out
• Overtime In
• Overtime Out
Provides professional attendance management functionality.
Language Support:
Supported Languages:
• English
• Spanish
• Arabic
• Thai
• Indonesian
• Russian
• Vietnamese
• Portuguese (Brazil)
• Korean
Suitable for international deployment environments.
Environmental Specifications:
Working Temperature:
• -30°C to +60°C
Working Humidity:
• 0% to 90% (No Condensing)
Protection Level:
• IP65
Suitable for indoor and outdoor professional installations.
Physical Specifications:
Terminal Dimensions:
• 172.5 × 83.2 × 22.7 mm
Installation:
• Surface Mounting
DS-K4H258S Magnetic Lock
Unlock Method:
• Current Interruption
Maximum Holding Force:
• 280 kg Linear Thrust (617.4 Lbs)
Power Supply:
• 12 VDC, 340 mA
Indicator:
• Green LED Work Status
Suitable Doors:
• Wooden Doors
• Glass Doors
• Metal Doors
• Fireproof Doors
Features:
• Anti-residual magnetism design
• Abrasion-proof materials
• Hard anodized electroplated shell
• Eco-friendly nickel electroplating
Provides reliable electromagnetic locking performance.
DS-K4H258-LZ Magnetic Lock Bracket
Material:
• Aldural Material
Features:
• Hard anodizing electroplating
• L-bracket for lock body
• Z-bracket for armature plate
Suitable Doors:
• Wooden Doors
• Metal Doors
Weight:
• 0.77 kg
Provides stable magnetic lock mounting support.
DS-K7P03 Touch-Free Exit Button
Operation Type:
• Touch-Free Exit Operation
Output Contact:
• NO / NC / COM Contact
Power Supply:
• 12 VDC
Working Current:
• 40 mA (Standby)
• 70 mA (Working)
Detection Range:
• Adjustable:
- 40 mm to 120 mm
Time Delay:
• Adjustable:
- 1 to 25 Seconds
LED Indicator:
• Green / Red LED Status
Material:
• Stainless Steel Panel
Aging Test:
• Passed 1 Million Operations
Suitable Doors:
• All kinds of narrow doorframes
Provides hygienic and professional touchless exit control.
FM11RF08-M1 Smart Card
Card Type:
• M1 Contactless Smart Card
Frequency:
• 13.56 MHz
RAM:
• 1 KB
Function:
• Read / Write
Reading Distance:
• ≤ 10 cm
Material:
• PVC
Card Property:
• Thin Card
Provides reliable smart card authentication support.
Key Features:
• Complete touch-free access control solution
• Face recognition with anti-spoofing technology
• Touch-free exit button included
• Face mask detection support
• 1500 face / fingerprint / card capacity
• Remote management via Hik-Connect
• QR code recognition support
• IP65 protection level
• Attendance management functionality
• Professional magnetic lock system included
Applications:
• Office buildings
• Commercial facilities
• Factories
• Educational institutions
• Smart building entrances
• Enterprise security projects
• Attendance management systems
• Modern touch-free access control environments
Connect Gates Professional Opinion:
The DS-KAS541 is a powerful all-in-one touch-free access control solution designed for modern enterprise security environments. Its advanced face recognition technology, anti-spoofing capability, remote management support, and complete magnetic lock package make it ideal for businesses requiring secure, hygienic, and intelligent access management systems.
