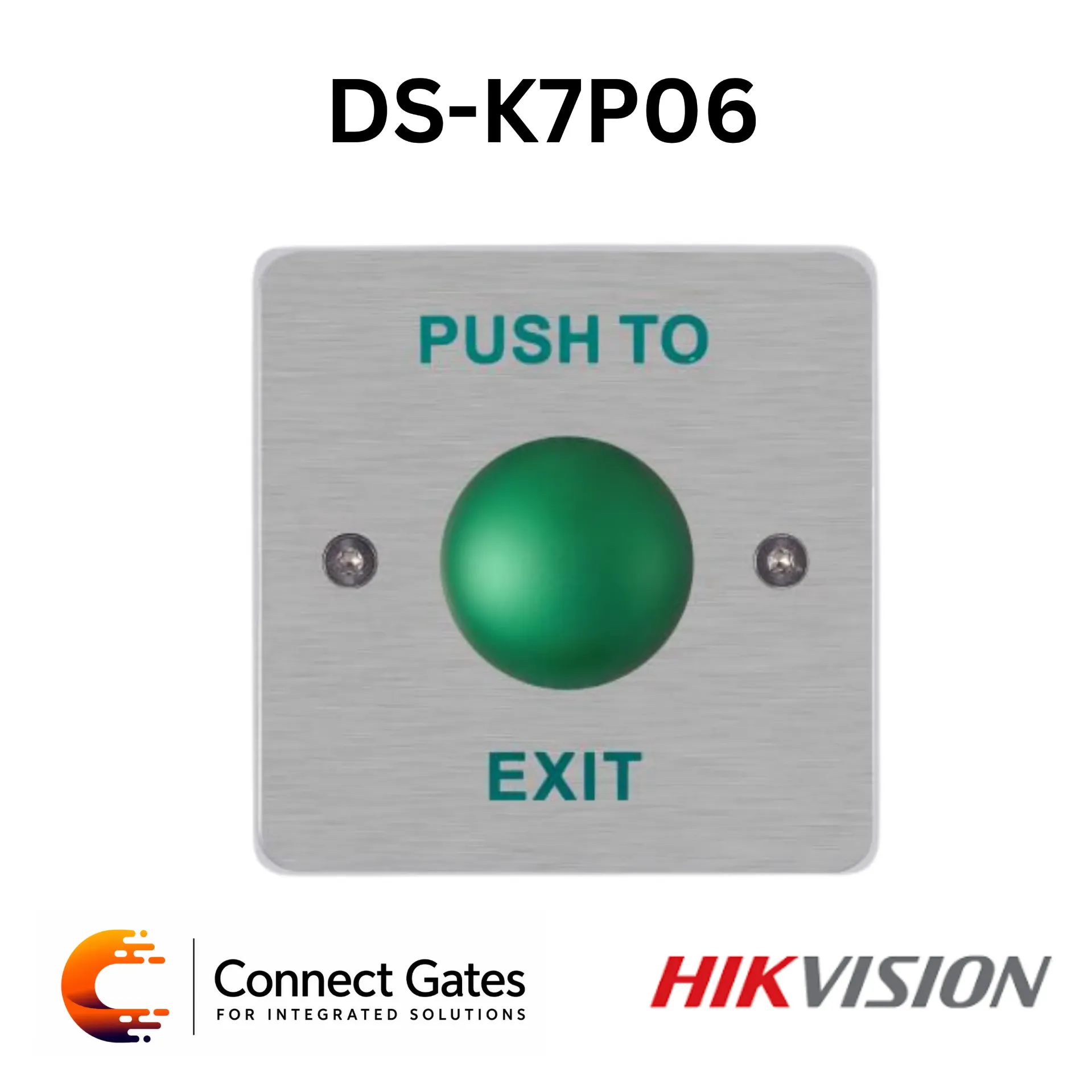

Hikvision DS-K7P06 – Heavy-Duty Metal Exit & Emergency Button
The Hikvision DS-K7P06 is a professional heavy-duty exit and emergency button designed for reliable access control and door release applications. Featuring a stainless steel panel, durable metal push button, and metal bottom case with polished zinc alloy construction, the device provides stable and long-lasting performance for commercial and enterprise security systems. Supporting NO/NC/COM contact output and tested for over 500,000 operations, the DS-K7P06 is suitable for all types of doors in professional access control environments.
Technical Specifications:
System Type:
• Type: Exit & Emergency Button
• Model: DS-K7P06
Signal Output:
Output Contact:
• NO / NC / COM Contact
Supports professional access control and emergency release integration.
Power & Electrical:
Power Supply:
• Maximum:
- 36 VDC, 3 A
Provides stable operation for access control systems.
Material & Construction:
Panel Material:
• Stainless steel panel
Button Material:
• Metal button
Bottom Case Material:
• Polished zinc alloy with chromium electroplating
Provides durability, corrosion resistance, and heavy-duty performance.
Door Compatibility:
Suitable for:
• All kinds of doors
Supports universal access control installations.
Durability & Performance:
Aging Test:
• Passed:
- 500,000 operation aging test
Designed for long-term professional use.
Environmental Specifications:
Working Temperature:
• -10°C to +55°C
Working Humidity:
• 0% to 95% Relative Humidity
Suitable for indoor professional security environments.
Physical Specifications:
Dimensions:
• 87.7 × 87.7 × 44 mm
Weight:
• 0.23 kg (0.51 lb)
(Page 2 includes detailed technical specifications.)
Installation Features:
• Wall-mounted heavy-duty exit button
• Professional access control integration
• Durable metal push button structure
• Stable and reliable switching mechanism
• Suitable for universal door installations
Available Model:
• DS-K7P06
Key Features:
• Professional heavy-duty exit button
• Stainless steel panel construction
• Durable metal push button
• Zinc alloy bottom case with chromium plating
• NO/NC/COM output support
• Supports up to 36V DC / 3A
• Passed 500,000 operation test
• Suitable for all door types
• Professional access control integration
Applications:
• Access control systems
• Emergency door release systems
• Office buildings
• Commercial facilities
• Enterprise security projects
• Industrial access control systems
• Smart building installations
• Professional entrance management systems
Connect Gates Professional Opinion:
The DS-K7P06 is a durable and heavy-duty exit button solution designed for professional access control environments requiring robust construction and reliable long-term operation. Its stainless steel and zinc alloy construction make it ideal for commercial, industrial, and high-traffic security installations.
