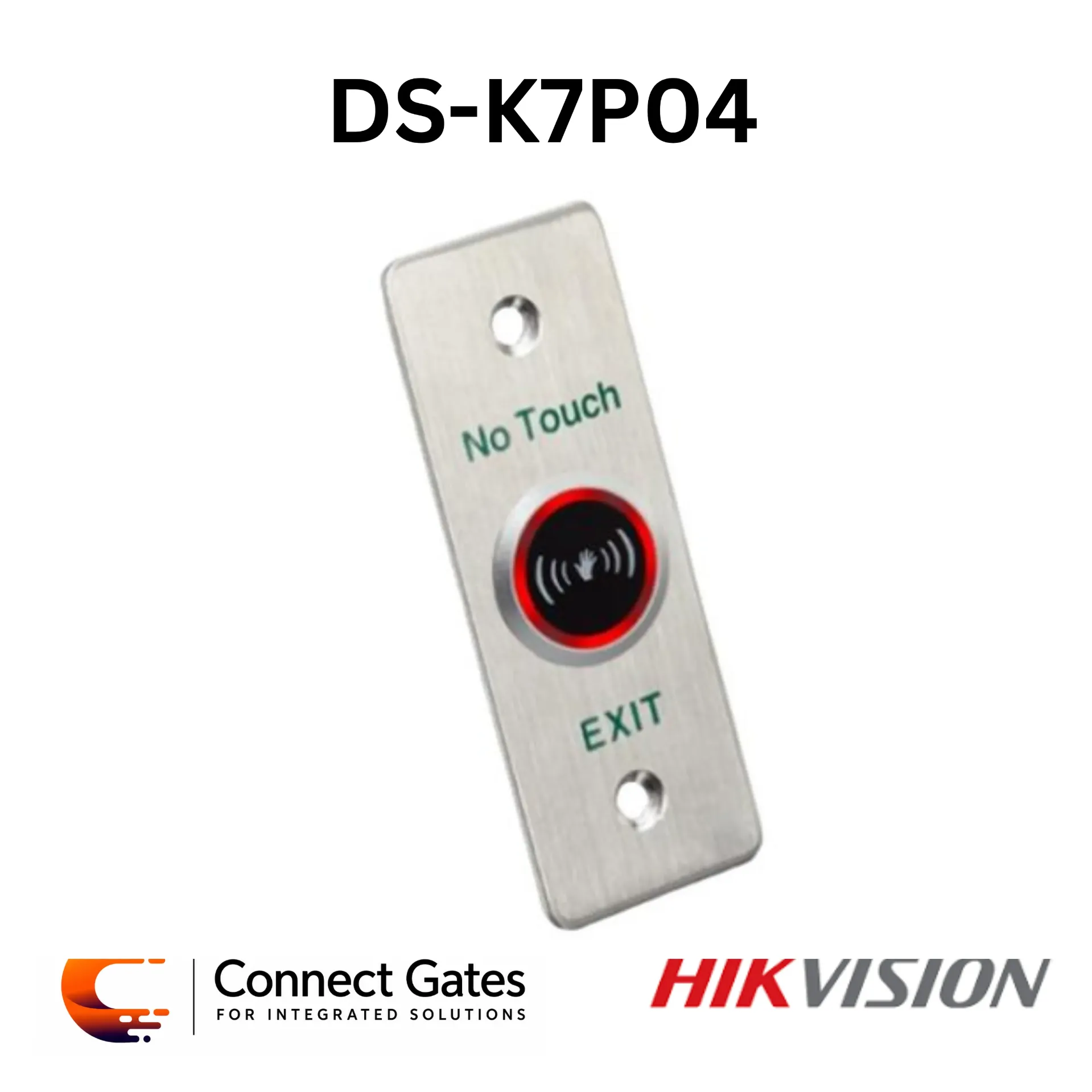

Hikvision DS-K7P04/T – Narrow Touchless Exit & Emergency Button
The Hikvision DS-K7P04/T is a professional narrow-type touchless exit and emergency button designed for modern access control and door release applications. Featuring a stainless steel panel, touch-free operation, and durable construction, the device provides hygienic, reliable, and long-lasting performance for commercial and enterprise security systems. Supporting NO/NC/COM contact output and tested for over 1 million operations, the DS-K7P04/T is ideal for narrow doorframe installations and high-traffic environments.
Technical Specifications:
System Type:
• Type: Narrow Touchless Exit & Emergency Button
• Model: DS-K7P04/T
Operation Features:
• Touchless exit operation
• Emergency release functionality
Provides hygienic and user-friendly access control operation.
Signal Output:
Output Contact:
• NO / NC / COM Contact
Supports professional access control integration.
Power & Electrical:
Power Supply:
• 30 VDC, 1 A
Current Rating:
• 1 A @ 30 VDC
Provides stable operation for professional access control systems.
Material & Construction:
Panel Material:
• Stainless steel panel
Provides durability, corrosion resistance, and professional appearance.
Door Compatibility:
Suitable for:
• All kinds of narrow doorframes
Designed specifically for slim-frame access control installations.
Durability & Performance:
Aging Test:
• Passed:
- 1 Million operation aging test
Designed for long-term professional use.
Environmental Specifications:
Working Temperature:
• -20°C to +50°C
Working Humidity:
• 0% to 95% Relative Humidity
Suitable for indoor professional security environments.
Physical Specifications:
Dimensions:
• 90 × 35 × 37.7 mm
Weight:
• 0.18 kg (0.40 lb)
(Page 2 includes detailed technical specifications.)
I
nstallation Features:
• Narrow wall-mounted touchless exit button
• Professional access control integration
• Stable and reliable touch-free operation
• Suitable for narrow-frame installations
• Professional emergency release solution
Available Model:
• DS-K7P04/T
Key Features:
• Professional narrow touchless exit button
• Stainless steel panel construction
• Touch-free hygienic operation
• NO/NC/COM output support
• Supports 30V DC / 1A
• Passed 1 million operation test
• Slim narrow-frame design
• Professional access control integration
• Durable and reliable construction
Applications:
• Access control systems
• Touchless door release systems
• Narrow aluminum doorframes
• Office buildings
• Commercial facilities
• Hospitals & healthcare facilities
• Enterprise security projects
• Smart building installations
• High-traffic entrance management systems
Connect Gates Professional Opinion:
The DS-K7P04/T is an ideal touchless exit solution for modern commercial and enterprise environments requiring hygienic operation and compact installation design. Its slim stainless steel structure and 1 million operation lifespan make it perfect for narrow aluminum frame doors and professional high-traffic access control applications.
