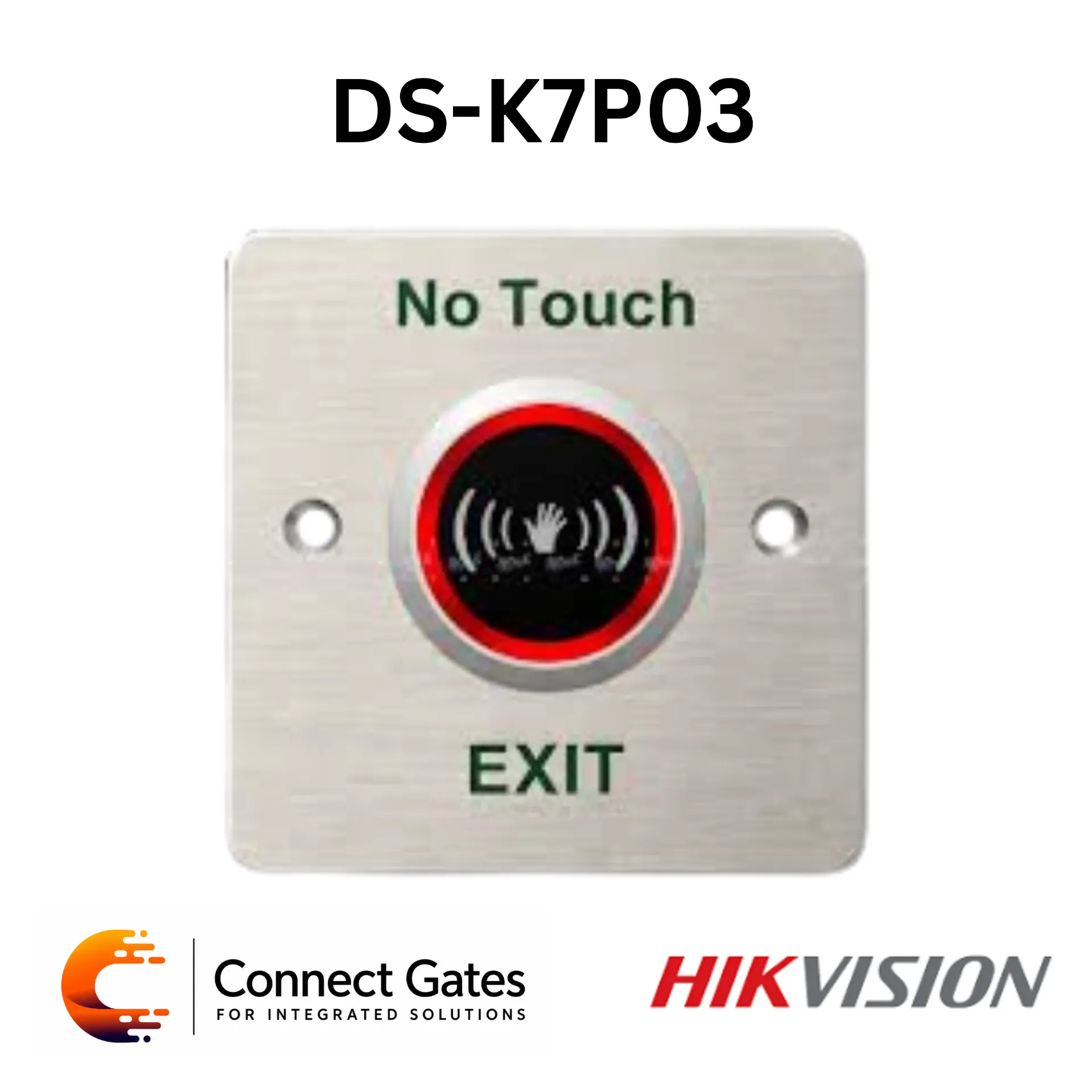

Hikvision DS-K7P03/T – Touchless Exit & Emergency Button with LED Indicator
The Hikvision DS-K7P03/T is a professional touchless exit and emergency button designed for modern access control and door release applications. Featuring a stainless steel panel, LED indicator, and touch-free operation, the device provides hygienic, reliable, and long-lasting performance for commercial and enterprise security systems. Supporting NO/NC/COM contact output and tested for over 1 million operations, the DS-K7P03/T is ideal for high-traffic environments and narrow doorframe installations.
Technical Specifications:
System Type:
• Type: Touchless Exit & Emergency Button
• Model: DS-K7P03/T
Operation Features:
• Touchless exit operation
• LED status indicator
Provides hygienic and user-friendly door release functionality.
Signal Output:
Output Contact:
• NO / NC / COM Contact
Supports professional access control integration.
Power & Electrical:
Power Supply:
• 30 VDC, 1 A
Provides stable operation for access control systems.
Material & Construction:
Panel Material:
• Stainless steel panel
Provides durability, corrosion resistance, and professional appearance.
Door Compatibility:
Suitable for:
• All kinds of narrow doorframes
Ideal for narrow-frame access control installations.
Durability & Performance:
Aging Test:
• Passed:
- 1 Million operation aging test
Designed for long-term professional use.
Environmental Specifications:
Working Temperature:
• -20°C to +50°C
Working Humidity:
• 0% to 95% Relative Humidity
Suitable for indoor professional security environments.
Physical Specifications:
Dimensions:
• 86 × 86 × 25.7 mm
Weight:
• 0.2 kg (0.44 lb)
(
Page 2 includes detailed technical specifications.)
Installation Features:
• Wall-mounted touchless exit button
• Professional access control integration
• LED status indication support
• Stable and reliable touch-free operation
• Suitable for narrow-frame installations
Available Model:
• DS-K7P03/T
Key Features:
• Professional touchless exit button
• Stainless steel panel construction
• LED status indicator
• NO/NC/COM output support
• Touch-free hygienic operation
• Supports 30V DC / 1A
• Passed 1 million operation test
• Suitable for narrow doorframes
• Professional access control integration
• Access control systems
• Touchless door release systems
• Office buildings
• Commercial facilities
• Hospitals & healthcare facilities
• Enterprise security projects
• Smart building installations
• High-traffic entrance management systems
Connect Gates Professional Opinion:
The DS-K7P03/T is an excellent modern touchless exit solution for professional access control environments requiring hygienic operation and high durability. Its stainless steel construction, LED indicator, and 1 million operation lifespan make it ideal for commercial buildings, healthcare facilities, and high-traffic enterprise applications.
