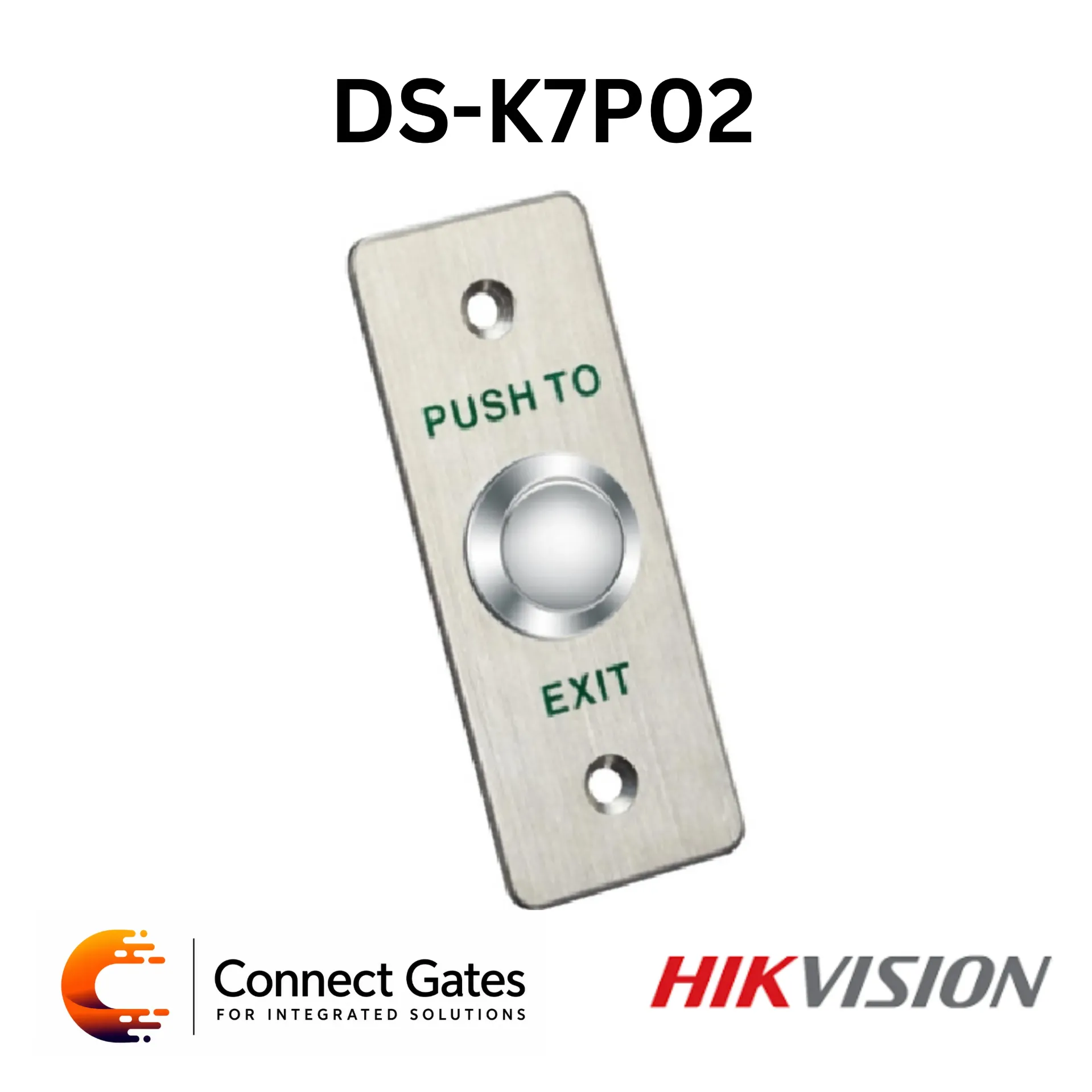

Hikvision DS-K7P02 – Narrow Metal Exit Button with Aluminum Alloy Panel
The Hikvision DS-K7P02 is a professional narrow-type exit button designed for access control and door release applications. Featuring a slim aluminum alloy panel with sandblast finish and durable metal push button construction, the device provides stable and reliable operation for commercial and enterprise security systems. Supporting NO/NC/COM contact output and tested for over 500,000 operations, the DS-K7P02 is ideal for narrow doorframe installations and professional access control environments.
Technical Specifications:
System Type:
• Type: Narrow Exit Button
• Model: DS-K7P02
Signal Output:
Output Contact:
• NO / NC / COM Contact
Supports professional access control and door release integration.
Power & Electrical:
Power Supply:
• Maximum:
- 36 VDC, 3 A
Provides stable operation for access control systems.
Material & Construction:
Panel Material:
• Aluminum alloy panel with sandblast finish
Button Material:
• Metal button
Provides durability, professional appearance, and long-term reliability.
Door Compatibility:
Suitable for:
• Hollow Doorframes
• Embedded Electric Boxes
Designed specifically for narrow frame installations.
Durability & Performance:
Aging Test:
• Passed:
- 500,000 operation aging test
Designed for long-term professional use.
Environmental Specifications:
Working Temperature:
• -10°C to +55°C
Working Humidity:
• 0% to 95% Relative Humidity
Suitable for indoor professional security environments.
Physical Specifications:
Dimensions:
• 90 × 35 × 28.9 mm
(Page 2 includes detailed technical specifications.)
Installation Features:
• Narrow wall-mounted exit button
• Professional access control integration
• Durable metal push button structure
• Stable and reliable switching mechanism
• Ideal for slim doorframe applications
Available Model:
• DS-K7P02
Key Features:
• Professional narrow exit button
• Aluminum alloy sandblast panel
• Durable metal push button
• Slim narrow-frame design
• NO/NC/COM output support
• Supports up to 36V DC / 3A
• Passed 500,000 operation test
• Professional access control integration
• Stable and durable construction
Applications:
• Access control systems
• Door release systems
• Narrow doorframe installations
• Office buildings
• Commercial facilities
• Enterprise security projects
• Smart building installations
• Professional entrance management systems
Connect Gates Professional Opinion:
The DS-K7P02 is an excellent narrow-type exit button for professional access control systems requiring compact installation design without compromising durability. Its slim structure and reliable metal button construction make it ideal for aluminum frame doors and modern commercial security installations.
