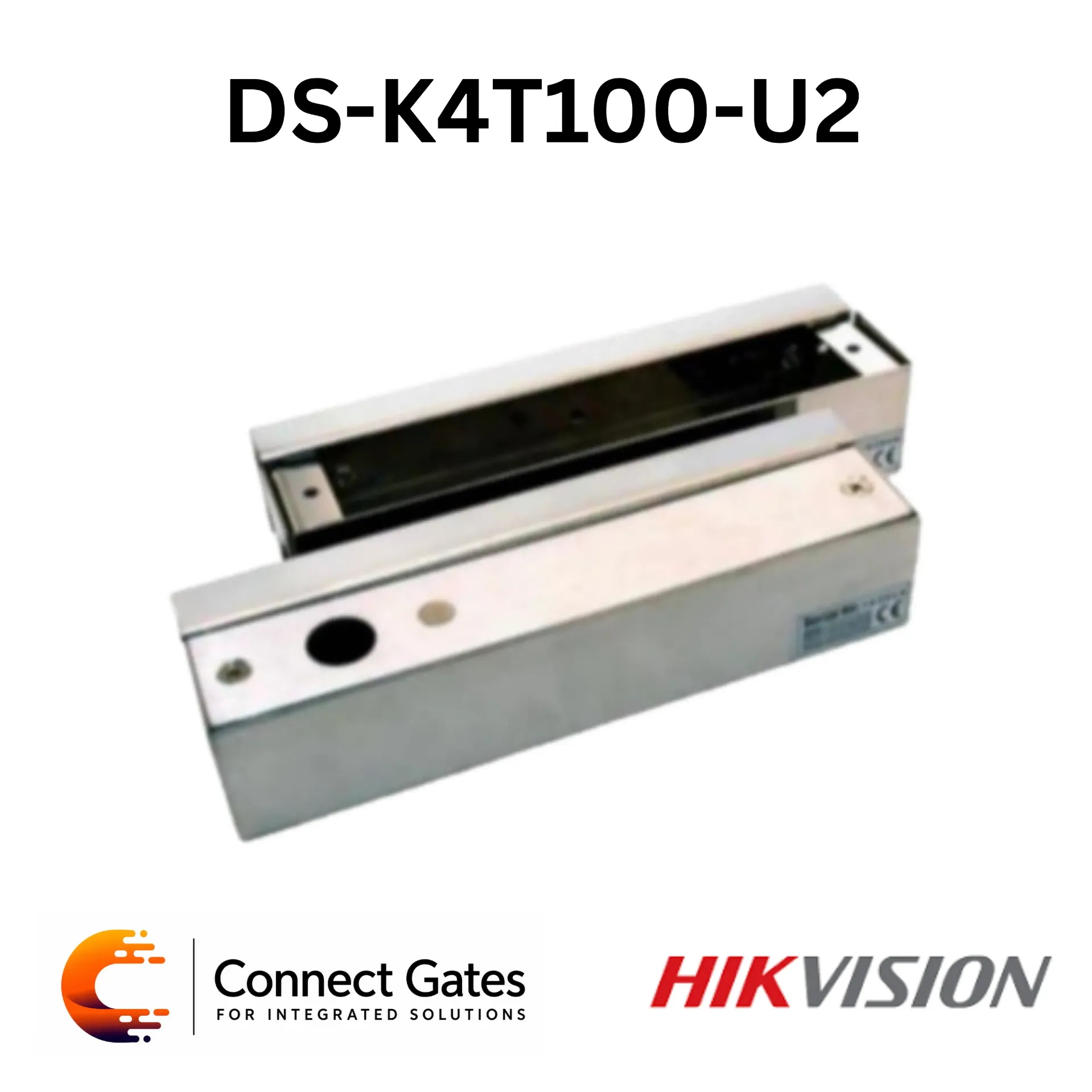

Hikvision DS-K4T100-U2 – Upper & Lower U-Bracket for DS-K4T100 Electric Bolt Lock
The Hikvision DS-K4T100-U2 is a professional upper and lower U-bracket set designed specifically for the DS-K4T100 electric bolt lock. Manufactured from durable aluminum alloy, the bracket provides stable and secure mounting support for frameless glass door installations. Designed for professional access control systems, the DS-K4T100-U2 supports double-side door opening up to 180° and is suitable for glass thicknesses ranging from 10 mm to 15 mm.
Technical Specifications:
System Type:
• Type: Upper & Lower U-Bracket for Electric Bolt Lock
• Model: DS-K4T100-U2
Compatibility:
Compatible Electric Bolt Lock:
• DS-K4T100
Designed for Hikvision electric bolt lock installations.
Bracket Structure:
• Upper U-bracket
• Lower U-bracket
Provides complete mounting support for frameless glass door applications.
Material & Construction:
Material:
• Aluminum alloy construction
Provides durability and professional installation stability.
Door Compatibility:
Suitable for:
• Frameless Glass Doors
• Wooden Doors
• Metal Doors
Supported Glass Thickness:
• 10 mm to 15 mm
Supports professional frameless glass door installations.
Door Opening Support:
• Supports opening from both sides
• Door opening angle:
- 180°
Provides flexible access control installation capability.
Physical Specifications:
Dimensions:
• 205 × 58 × 46 mm
Weight:
• 1.3 kg
(Page 1 includes product overview and specifications.)
Installation Features:
• Complete upper & lower mounting bracket system
• Designed for frameless glass door electric bolt installations
• Stable and secure mounting support
• Professional access control installation solution
Available Model:
• DS-K4T100-U2
Key Features:
• Professional upper & lower U-bracket set
• Compatible with DS-K4T100 electric bolt lock
• Aluminum alloy construction
• Designed for frameless glass doors
• Supports 10–15 mm glass thickness
• Supports 180° double-side door opening
• Stable and secure mounting support
• Professional access control installation solution
Applications:
• Frameless glass door installations
• Electric bolt lock systems
• Access control systems
• Office buildings
• Commercial facilities
• Enterprise security projects
• Smart building installations
Connect Gates Professional Opinion:
The DS-K4T100-U2 is an ideal professional mounting solution for frameless glass door electric bolt lock installations. Its upper and lower bracket structure provides enhanced installation stability and secure support for DS-K4T100 electric bolt lock systems in commercial and enterprise access control projects.
