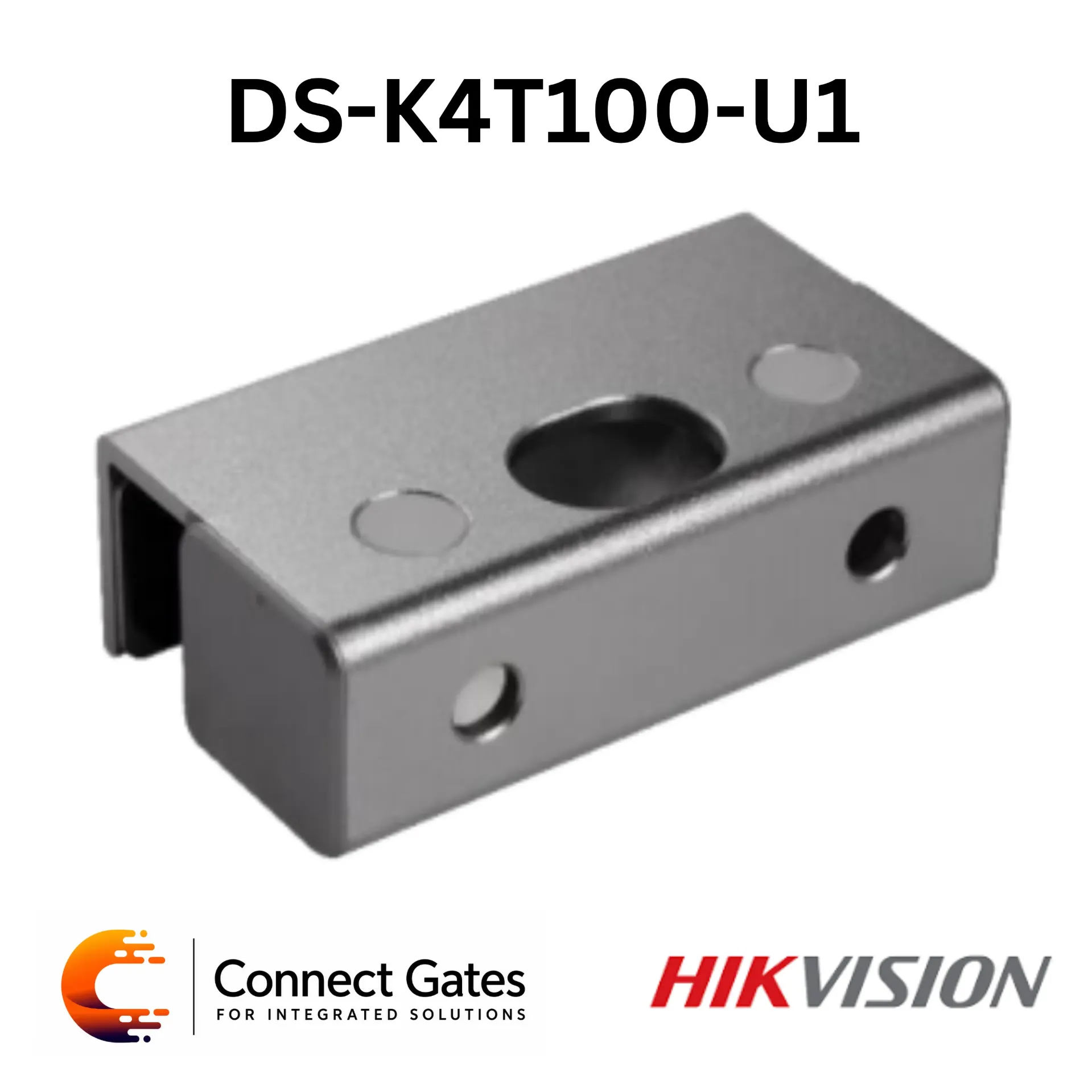

Hikvision DS-K4T100-U1 – Lower U-Bracket for DS-K4T100 Electric Bolt Lock
The Hikvision DS-K4T100-U1 is a professional lower U-bracket designed specifically for the DS-K4T100 electric bolt lock. Manufactured from durable aluminum alloy, the bracket is engineered for fully frameless glass door installations, providing stable and secure mounting support for professional access control systems. The DS-K4T100-U1 supports double-side door opening up to 180° and is suitable for glass thicknesses ranging from 10 mm to 15 mm.
Technical Specifications:
System Type:
• Type: Electric Bolt Lock Lower U-Bracket
• Model: DS-K4T100-U1
Compatibility:
Compatible Electric Bolt Lock:
• DS-K4T100
Designed for Hikvision Pro Series electric bolt lock installations.
Material & Construction:
Material:
• Aluminum alloy construction
Provides durability, corrosion resistance, and stable installation support.
Door Compatibility:
Suitable for:
• Fully Frameless Glass Doors
Supported Glass Thickness:
• 10 mm to 15 mm
Designed for professional frameless glass door access control systems.
Door Opening Support:
• Supports double-side door opening
• Door opening angle:
- 180°
Provides flexible glass door installation capability.
Physical Specifications:
Dimensions:
• 93 × 50 × 30 mm
Weight:
• 0.27 kg
(Page 1 includes installation diagrams and dimensional drawings.)
Installation Features:
• Lower U-bracket mounting structure
• Designed for frameless glass doors
• Stable electric bolt lock installation support
• Professional access control mounting solution
Installation Notes:
• Correct center line distance:
- Approximately 20 mm
Supports proper electric bolt alignment for reliable operation.
Available Model:
• DS-K4T100-U1
Key Features:
• Professional lower U-bracket for electric bolt lock
• Compatible with DS-K4T100 electric bolt lock
• Aluminum alloy construction
• Designed for frameless glass doors
• Supports 10–15 mm glass thickness
• Supports 180° door opening
• Stable and secure mounting support
• Professional access control installation solution
Applications:
• Frameless glass door installations
• Electric bolt lock systems
• Access control systems
• Office buildings
• Commercial facilities
• Enterprise security projects
• Smart building installations
Connect Gates Professional Opinion:
The DS-K4T100-U1 is an essential professional accessory for frameless glass door electric bolt installations. Its durable aluminum alloy construction and dedicated lower U-bracket design provide secure and reliable mounting support for DS-K4T100 electric bolt lock systems in commercial and enterprise projects.
