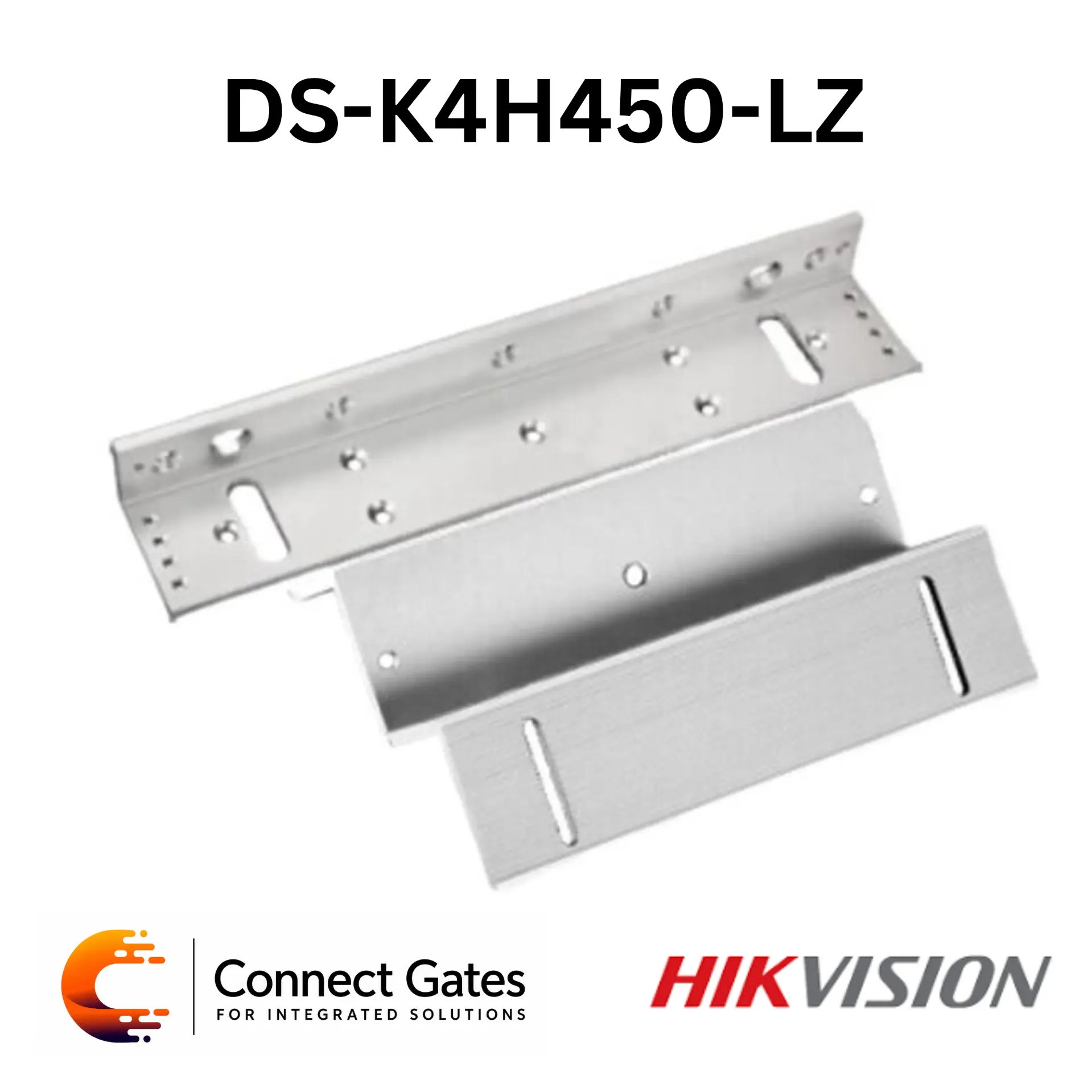

Hikvision DS-K4H450-LZ – Pro Series Magnetic Lock LZ Bracket
The Hikvision DS-K4H450-LZ is a professional LZ mounting bracket designed specifically for Hikvision Pro Series magnetic locks. Built with anodized aluminum and high-strength aluminum construction, the bracket provides stable and secure installation support for wooden doors, metal doors, and narrow trim doors. Designed for heavy-duty magnetic lock systems, the DS-K4H450-LZ ensures professional alignment and reliable mounting performance for enterprise access control installations.
Technical Specifications:
System Type:
• Type: Pro Series Magnetic Lock LZ Bracket
• Model: DS-K4H450-LZ
Compatibility:
Compatible Magnetic Lock:
• DS-K4H450S
Designed for Hikvision Pro Series heavy-duty magnetic lock installations.
Bracket Structure:
L Bracket:
• Used for magnetic lock body installation
Z Bracket:
• Used for armature plate installation
Provides stable and professional magnetic lock mounting support.
Material & Construction:
Shell Material:
• Anodized aluminum
Lock Body Material:
• High-strength aluminum with surface sandblast finish
Provides durability, corrosion resistance, and industrial-grade strength.
Door Compatibility:
Suitable for:
• Wooden Doors
• Metal Doors
• Narrow Trim Doors
Supports professional access control installations for various door types.
Physical Specifications:
L Bracket Dimensions:
• 265 × 72 × 45.2 mm
Z Bracket Dimensions:
• 185 × 70 × 61 mm
Weight:
• 1.3 kg
(Page 2 includes detailed specifications and accessory compatibility.)
Installation Features:
• Professional LZ mounting structure
• Stable magnetic lock installation support
• Suitable for heavy-duty magnetic lock systems
• Designed for enterprise access control projects
• Reliable lock body and armature alignment
Optional Accessories:
• DS-K4H450S
- Pro Series Magnetic Lock
(Page 2 includes compatible optional accessories.)
Available Model:
• DS-K4H450-LZ
Key Features:
• Professional LZ magnetic lock bracket
• Compatible with DS-K4H450S magnetic lock
• Anodized aluminum construction
• High-strength aluminum lock body support
• Surface sandblast finish
• Suitable for wooden, metal & narrow trim doors
• Stable and secure mounting support
• Heavy-duty access control installation solution
Applications:
• Heavy-duty magnetic lock installations
• Access control systems
• Office buildings
• Commercial facilities
• Enterprise security projects
• Industrial access control systems
• Smart building installations
Connect Gates Professional Opinion:
The DS-K4H450-LZ is a strong professional mounting solution for Hikvision heavy-duty magnetic locks. Its durable anodized aluminum construction and support for multiple door types make it ideal for enterprise and industrial access control installations requiring secure and stable magnetic lock mounting.
