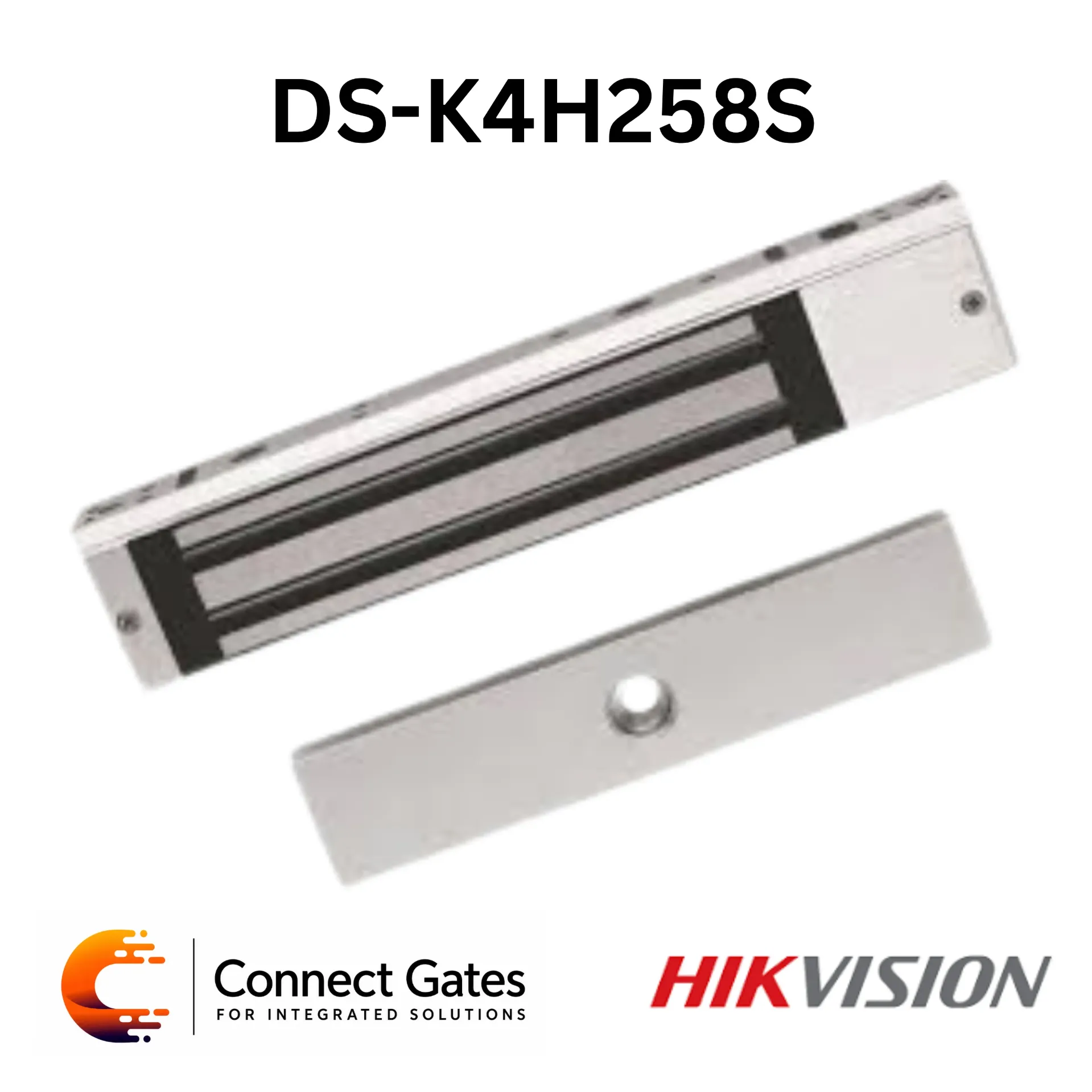

Hikvision DS-K4H258S – One-Door Magnetic Lock with 280kg Holding Force & LED Status Indicator
The Hikvision DS-K4H258S is a professional one-door magnetic lock designed for secure access control applications on wooden, glass, metal, and fireproof doors. With a static linear holding force of up to 280 kg (617 Lbs), the lock provides reliable electromagnetic locking performance for professional security systems. The built-in LED indicator displays door lock status, while the abrasion-resistant construction ensures long-term durability in demanding environments.
Technical Specifications:
System Type:
• Type: One-Door Magnetic Lock
• Model: DS-K4H258S
Lock Performance:
Holding Force:
• Maximum Static Linear Thrust:
- 280 kg (617 Lbs)
Provides strong and stable electromagnetic locking force.
Unlock Method:
• Current Interruption
The lock releases automatically when power is interrupted.
LED Status Indicator:
Indicator Status:
• Green:
- Working Status
Provides visual door lock operation indication.
Door Compatibility:
Suitable for:
• Wooden Doors
• Glass Doors
• Metal Doors
• Fireproof Doors
• Single Leaf Doors
• Double Leaf Doors
Supports flexible installation for multiple door types.
Power & Electrical:
Power Supply:
• 12V DC or 24V DC
(Default voltage: 12V DC)
Current Consumption:
• 340 mA × 2
Provides stable electromagnetic locking operation.
Material & Construction:
Housing Material:
• Hard anodizing electroplated shell
Material Treatment:
• Lock Body:
- Eco-friendly Nickel Electroplating Operated
• Armature Plate:
- Eco-friendly Zinc Electroplating Operated
Design Features:
• Abrasion-proof materials
Built for long-term professional use.
Environmental Specifications:
• Working Temperature:
- -10°C to +55°C
• Working Humidity:
- 0% to 95% Relative Humidity
Surface Temperature:
• ≤ Ambient Temperature +20°C
Suitable for indoor access control applications.
Physical Specifications:
Lock Body Dimensions:
• 238 × 45 × 25 mm
Armature Plate Dimensions:
• 182 × 38 × 12.5 mm
Weight:
• 2.1 kg
(Page 2 includes detailed specifications and accessory illustrations.)
Installation:
• Surface mounting for one-door access control systems
Optional Accessories:
• DS-K4H258-LZ
- Value Series Magnetic Lock Bracket
• DS-KAS261
- Fingerprint Terminal Kit
Available Model:
• DS-K4H258S
Key Features:
• Professional one-door magnetic lock
• 280 kg (617 Lbs) holding force
• LED working status indicator
• Supports 12V DC & 24V DC operation
• Compatible with wooden, glass, metal & fireproof doors
• Abrasion-resistant construction
• Reliable electromagnetic locking mechanism
• Eco-friendly electroplated materials
• Stable long-term performance
Applications:
• Office buildings
• Commercial facilities
• Glass door access systems
• Fireproof door security systems
• Enterprise access control projects
• Smart building security systems
• Professional access management installations
Connect Gates Professional Opinion:
The DS-K4H258S is a strong and reliable magnetic lock solution for professional access control systems requiring visual lock status indication and support for multiple door types, including fireproof doors. Its 280 kg holding force and durable construction make it ideal for commercial and enterprise security installations.
