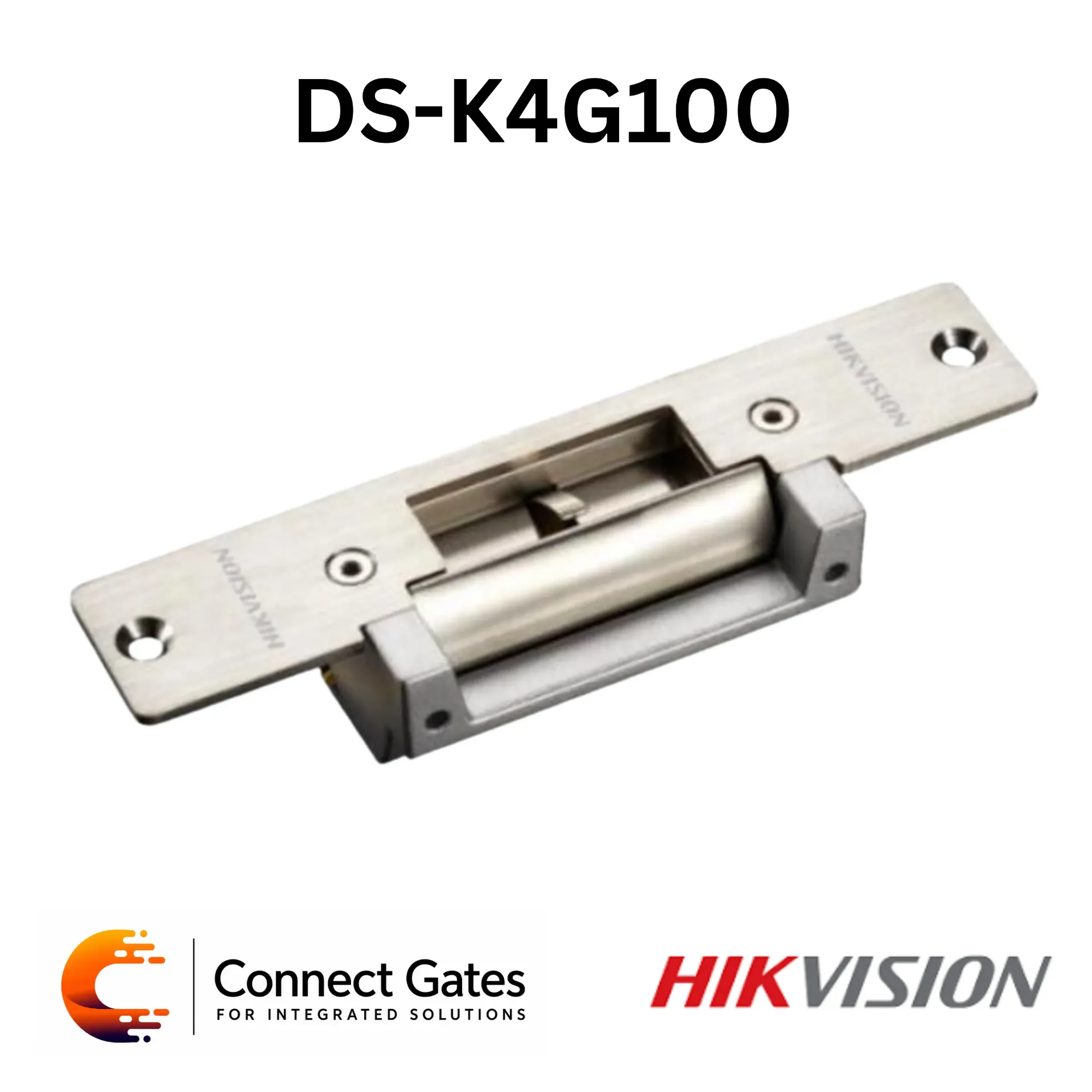

Hikvision DS-K4G100 – Electric Strike Lock with 800kg Holding Force & Fail-Safe / Fail-Secure Support
The Hikvision DS-K4G100 is a professional electric strike lock designed for secure access control applications on wooden, metal, and PVC doors. Built with stainless steel construction and strong electromagnetic holding capability, the lock supports both fail-safe and fail-secure operation modes for flexible security deployment. With up to 800 kg (1764 Lbs) holding force, dry contact signal output, and double insulation protection, the DS-K4G100 provides reliable and durable performance for commercial and enterprise access control systems.
Technical Specifications:
System Type:
• Type: Electric Strike Lock
• Model: DS-K4G100
Lock Performance:
Maximum Holding Force:
• 800 kg (1764 Lbs)
Provides powerful electromagnetic locking protection against forced opening.
Operating Modes:
• Fail-Secure Supported
• Fail-Safe Supported
Allows flexible security configuration based on project requirements.
Signal Output:
Door Status Output:
• Dry Contact Signal Output
Output Logic:
• NO Output while Locking
• NC Output while Unlocking
Supports integration with access control monitoring systems.
Power & Electrical:
Input Voltage:
• 12V DC / 320 mA
• 24V DC / 160 mA ±15%
Provides stable and efficient operation.
Lock Durability:
Electromagnetic Coil Lifetime:
• Supports up to 100,000 operations while powering on
Designed for reliable long-term use.
Lock Structure:
Latch Groove Depth:
• 15 mm
Provides secure latch locking performance.
Material & Construction:
Latch Material:
• US304 Stainless Steel
Plate Surface:
• Wire-drawing surface treatment
Protection:
• Double Insulation Design
Built for professional security durability and electrical safety.
Door Compatibility:
Suitable for:
• Wooden Doors
• Metal Doors
• PVC Doors
Supports various professional access control installations.
Environmental Specifications:
• Working Temperature:
- -10°C to +55°C
• Working Humidity:
- 0% to 95% (Non-condensing)
Suitable for indoor professional security environments.
Physical Specifications:
Lock Body Dimensions:
• 165 × 43.7 × 35 mm
Weight:
• 0.4 kg
(Page 2 includes detailed dimensions and wiring diagrams.)
Circuit Board Wiring:
5-PIN Color Wiring:
• Red:
- Positive (+)
• Black:
- Negative (-)
• White:
- COM
• Yellow:
- NC
• Green:
- NO
Supports flexible professional access control wiring integration.
Installation:
• Suitable for metal door frames
• Suitable for wooden door frames
(Page 3 includes installation illustrations for different door types.)
Available Model:
• DS-K4G100
Key Features:
• Professional electric strike lock
• 800 kg (1764 Lbs) holding force
• Supports fail-safe & fail-secure operation
• US304 stainless steel latch
• Dry contact signal output
• Strong anti-forced-opening protection
• Double insulation protection
• Supports 12V DC & 24V DC operation
• Suitable for wooden, metal & PVC doors
• Professional access control integration support
Applications:
• Office buildings
• Commercial facilities
• Residential compounds
• Access-controlled doors
• Enterprise access control systems
• Smart building security systems
• Professional security installations
Connect Gates Professional Opinion:
The DS-K4G100 is a reliable professional electric strike lock for projects requiring flexible fail-safe/fail-secure configuration and strong anti-forced-entry protection. Its stainless steel construction and high holding force make it suitable for commercial and enterprise security applications.
