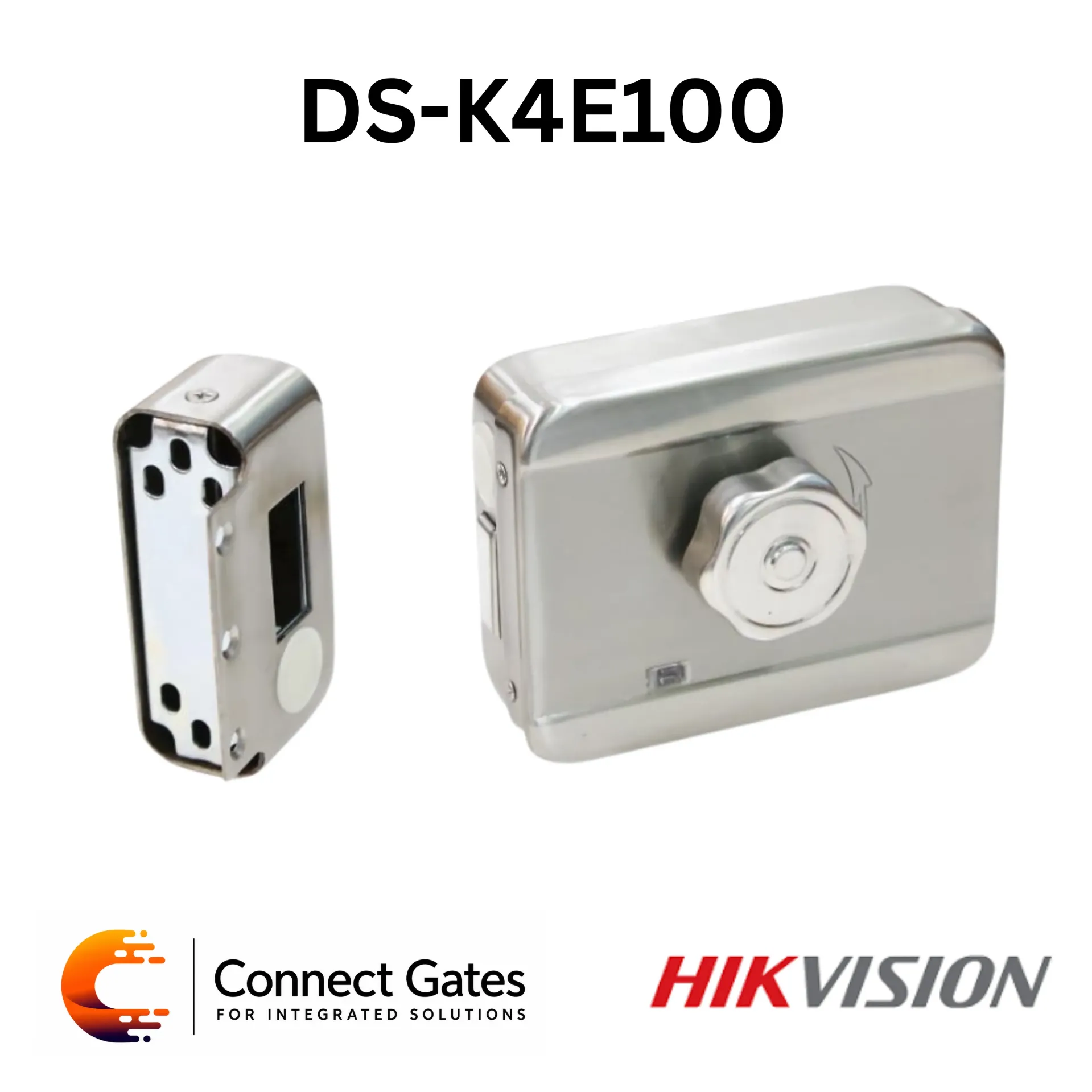

Hikvision DS-K4E100 – Intelligent Electric Lock with Auto-Locking & Door Status Detection
The Hikvision DS-K4E100 is an intelligent electric lock designed for professional access control and video intercom applications. Featuring automatic locking functionality, door status detection, and intelligent lock monitoring, the lock provides secure and reliable operation for residential, commercial, and enterprise security systems. With low power consumption, high switch sensitivity, and a lifespan exceeding 500,000 operations, the DS-K4E100 delivers stable long-term performance for modern smart access control environments.
Technical Specifications:
System Type:
• Type: Intelligent Electric Lock
• Model: DS-K4E100
Smart System Integration:
• Works cooperatively with:
- Video Intercom Systems
- Access Control Systems
Provides intelligent integration for smart building security systems.
Intelligent Lock Features:
Auto-Locking:
• Door automatically locks after 9 seconds if no person enters
Improves access security and automation.
Door Status Detection:
Lock Status Monitoring:
• Lock status detection supported
Lock Testing Logic:
• Unlocked Status:
- Lock tongue does not come out
- NC and COM connected
- NO and COM disconnected
• Locked Status:
- NC and COM connected
- NO and COM disconnected
Door Contact Detection:
• Door Open:
- Door contact remains open
• Door Closed:
- Door contact remains closed
Provides intelligent monitoring for professional access control systems.
Power & Electrical:
Power Supply:
• DC 12V ±10%
Current Consumption:
• Working Current:
- 350 mA
• Standby Current:
- 25 mA
Unlock Time:
• 1 Second
Provides low power consumption and efficient operation.
Lock Performance:
Mechanical Lifetime:
• ≥ 500,000 operations
Designed for long-term reliable use.
Lock Structure:
Lock Tongue Length:
• 20 mm
Material:
• Stainless Steel
Provides durable locking performance.
Door Compatibility:
Suitable for:
• Left Opening Doors
• Right Opening Doors
• Interior Doors
• Exterior Doors
• Various Door Types
Supports flexible installation environments.
Environmental Specifications:
• Working Temperature:
- -20°C to +50°C
Suitable for indoor and outdoor protected installations.
Physical Specifications:
Dimensions:
• 130 × 100 × 61.25 mm
Weight:
• 1.45 kg
(Page 2 includes detailed appearance drawings and dimensions.)
Installation:
• Compatible with multiple door opening directions
• Suitable for intelligent access control systems
Available Model:
• DS-K4E100
Key Features:
• Intelligent electric lock
• Automatic re-locking after 9 seconds
• Door status detection support
• Works with video intercom systems
• Works with access control systems
• Stainless steel construction
• Low standby power consumption
• High switch sensitivity
• Supports ≥ 500,000 operations
• Professional smart locking solution
Applications:
• Smart buildings
• Residential compounds
• Video intercom systems
• Commercial facilities
• Enterprise access control systems
• Apartment entrances
• Office buildings
• Intelligent security projects
Connect Gates Professional Opinion:
The DS-K4E100 is an excellent intelligent electric lock for projects requiring integration with video intercom and smart access systems. Its automatic locking functionality, intelligent status monitoring, and low power consumption make it ideal for modern residential and commercial security environments.
