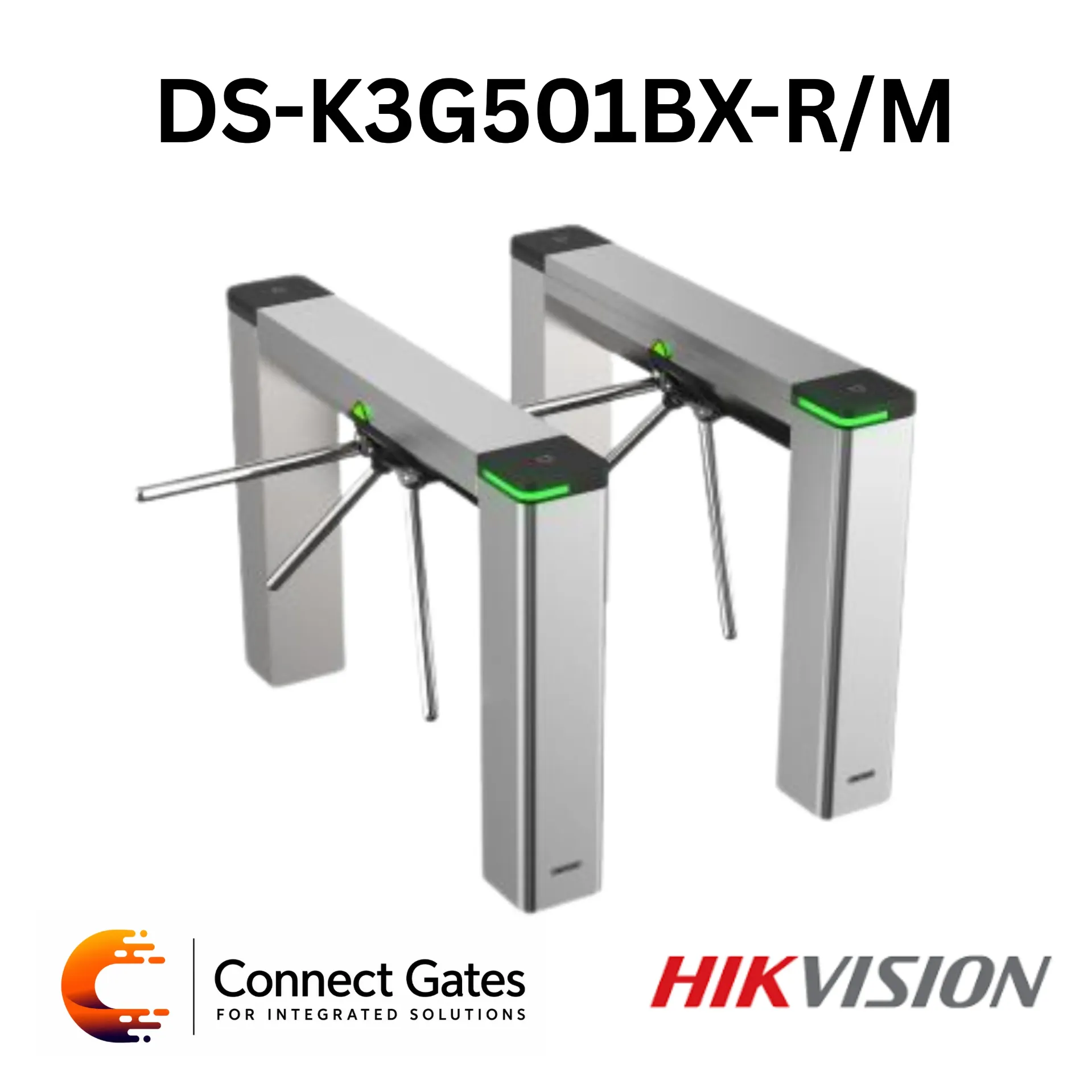

Hikvision DS-K3G501BX-R/M – Pro Tripod Turnstile, Smart Network Access Control Barrier, Built-in Controller, SUS304
Overview:
• The DS-K3G501BX is a professional tripod turnstile designed for advanced access control with built-in network capabilities
• Integrates access control, monitoring, and authentication in one device without the need for external controller
• Supports card-based authentication and seamless system integration via network protocols
• Designed for high-traffic environments requiring reliability and centralized management
• Ideal for factories, corporate buildings, stadiums, and public access points
Key Features:
• Built-in access controller (No external panel required)
• Network connectivity (10/100 Mbps Ethernet) for centralized management
• Bi-directional passage control (Entry / Exit)
• Automatic arm drop when fire alarm is triggered for emergency evacuation
• Configurable passing duration with automatic permission cancellation
• Remote control support (433 MHz / 868 MHz keyfob)
• Supports audio prompt with customizable voice messages (MP3)
• Web-based configuration via PC and mobile
Technical Specifications:
System Performance:
• MCBF: ≥ 3 million cycles
• Throughput: 30 to 60 persons per minute
Network & Interface:
• Network Interface: 1 × Ethernet (10/100 Mbps)
• RS-485: 4
• RS-232: 2
• Wiegand: 2
• Alarm Output: 2
• Exit Button: 2
• Fire Alarm Input: 1
Capacity & Authentication:
• Card Capacity: 500,000
• Event Capacity: 500,000
• Card Types:
- EM Card
- M1 Card
- DESFire Card
Mechanical & Structure:
• Type: Pro Tripod Turnstile
• Lane Width: 550 mm
• Barrier Material: 1.2 mm Stainless Steel Pipe
• Body Material: SUS304 Stainless Steel (1.5 mm thickness)
Electrical:
• Power Supply: 100 ~ 240 VAC / 50-60Hz
• Power Consumption:
- Standby: 20W
- Working: 35W
- Peak: 45W
Environment:
• Operating Temperature: -20°C ~ 65°C
• Humidity: 0% ~ 95% RH
• Protection Level: IPX4
• Installation: Indoor / Outdoor
Dimensions & Weight:
• Size: 232 × 960 × 1208 mm
• Weight:
- Net: 41.78 kg
- Gross: 51.45 kg
Integration & Expansion:
• Built-in access control system (no external controller required)
• Supports centralized management via network
• Compatible with Hikvision ecosystem and third-party systems
• Supports remote configuration and monitoring
Applications:
• Factories & Industrial Sites
• Corporate Buildings
• Stadiums & Events
• Public Transportation Areas
• Government Facilities
Connect Gates Recommendation:
DS-K3G501BX is a professional-grade tripod turnstile that combines smart access control and barrier functionality, making it ideal for projects requiring centralized management, reliability, and high throughput.
