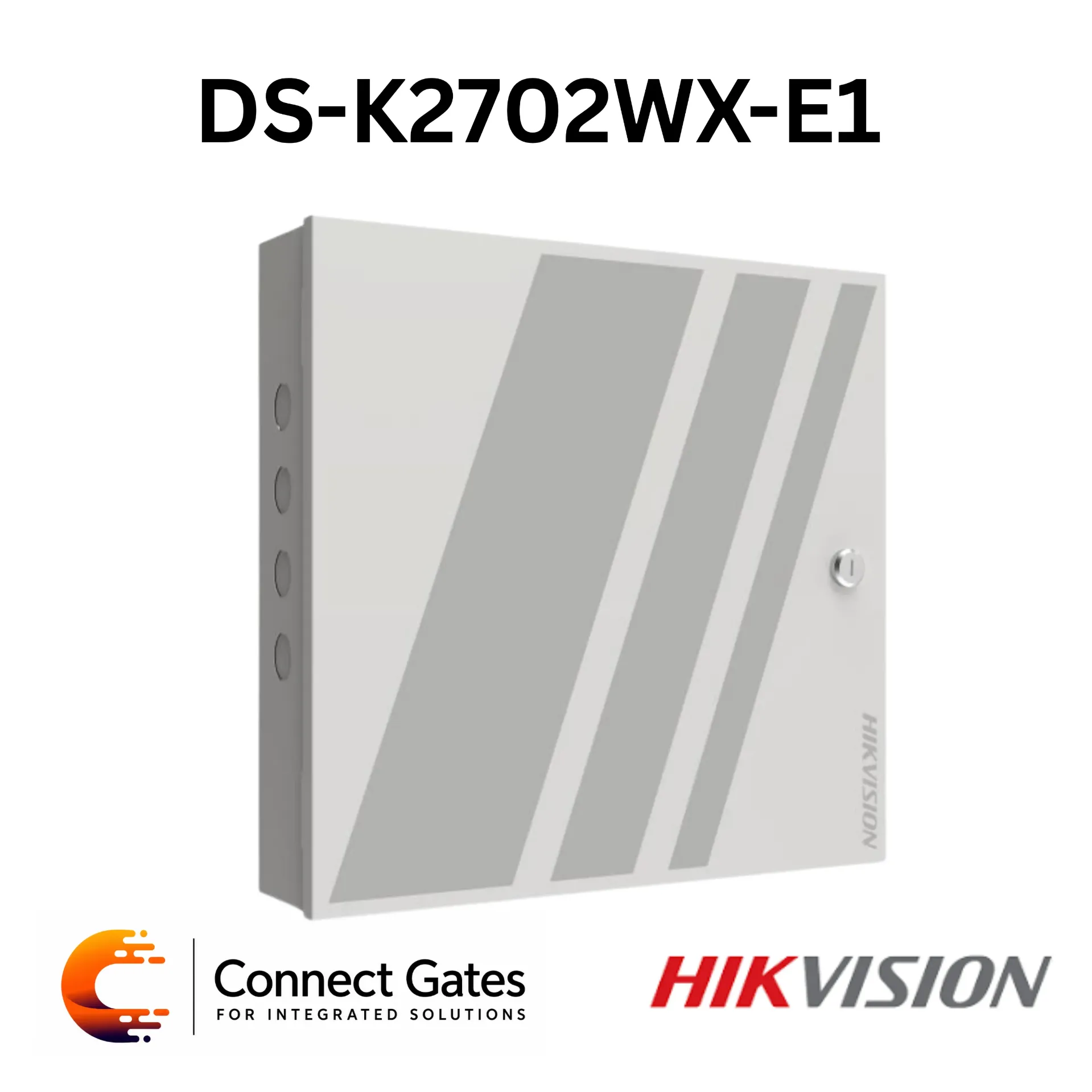

Hikvision DS-K2702WX-E1 – Advanced Scalable Access Controller
• The Hikvision DS-K2702WX-E1 is a high-end access control panel designed for scalable and enterprise-level security systems
• Supports web-based configuration without the need for dedicated software
• Capable of controlling up to 126 doors when expanded via RS-485 access modules
• Designed for large-scale deployments such as airports, banks, metro stations, and enterprise facilities
Key Features
• Supports 2 Doors (Expandable up to 126 Doors)
• Web-Based Configuration without Software Installation
• Advanced RS-485 Redundant Communication Design
• Supports Anti-passback and Multi-door Interlocking
• Multi-factor Authentication Support
• First Person Authentication Mode
• Supports Backup Battery with Charging and Discharging
• Built-in Status Indicators for System Monitoring
• Supports PoE Power Supply and Wi-Fi Connectivity
Technical Specifications
System
• Operating System: Linux
Network
• Wired Network: 10/100/1000 Mbps Self-Adaptive
• Wi-Fi: 2.4 GHz (802.11 b/g/n)
Interfaces
• Network Interface: 1
• Lock Control: 2
• Exit Button: 2
• Door Contact Input: 2
• Alarm Input: 4
• Alarm Output: 4
• Tamper Input: 1
• RS-485: 7
– 2 for Card Readers
– 5 for Access Modules (including redundancy support)
• Wiegand Interface: 4 (Supports W26/W34 and custom formats)
• USB: 1 (USB 2.0)
• PoE: Supported
• Fire Interface: 1
Capacity
• User Capacity: 100,000
• Fingerprint Capacity: 10,000
• Card Capacity: 200,000
• Event Storage: 600,000 Logs
• Door Capacity:
– Native: 2 Doors
– Expanded: Up to 126 Doors
• Reader Capacity:
– 4 RS-485 Readers (OSDP)
– 4 Wiegand Readers
Authentication
• Fingerprint Recognition Time: < 1 Second
General
• Power Supply: 100 ~ 240 VAC / PoE
• Power Consumption: ≤ 72W
• Battery: Supports Charge and Discharge
• Indicators: 11 Status Indicators (Power, Network, Wi-Fi, RS-485, Doors)
Environment
• Operating Temperature: -10°C to 55°C
• Working Humidity: 0% to 90% (Non-condensing)
Installation
• Wall Mounting
Applications
• Airports and transportation hubs
• Banks and financial institutions
• Government and enterprise facilities
• Industrial complexes and large factories
• Large-scale multi-door access control systems
System Integration
• Works with:
– Access Modules (DS-K2M002X)
– Card Readers and Biometric Readers
– Exit Buttons and Locks
• Supports large-scale RS-485 loop architecture with redundancy
According to the system architecture diagram on page 3, the controller can manage large distributed access systems with multiple modules and redundant communication loops for high reliability
Connect Gates Recommendation
The DS-K2702WX-E1 is a true enterprise-grade solution for projects requiring large-scale access control with high reliability, scalability, and advanced communication architecture. It is ideal for clients who need centralized management of multiple locations and doors with future expansion capability.
