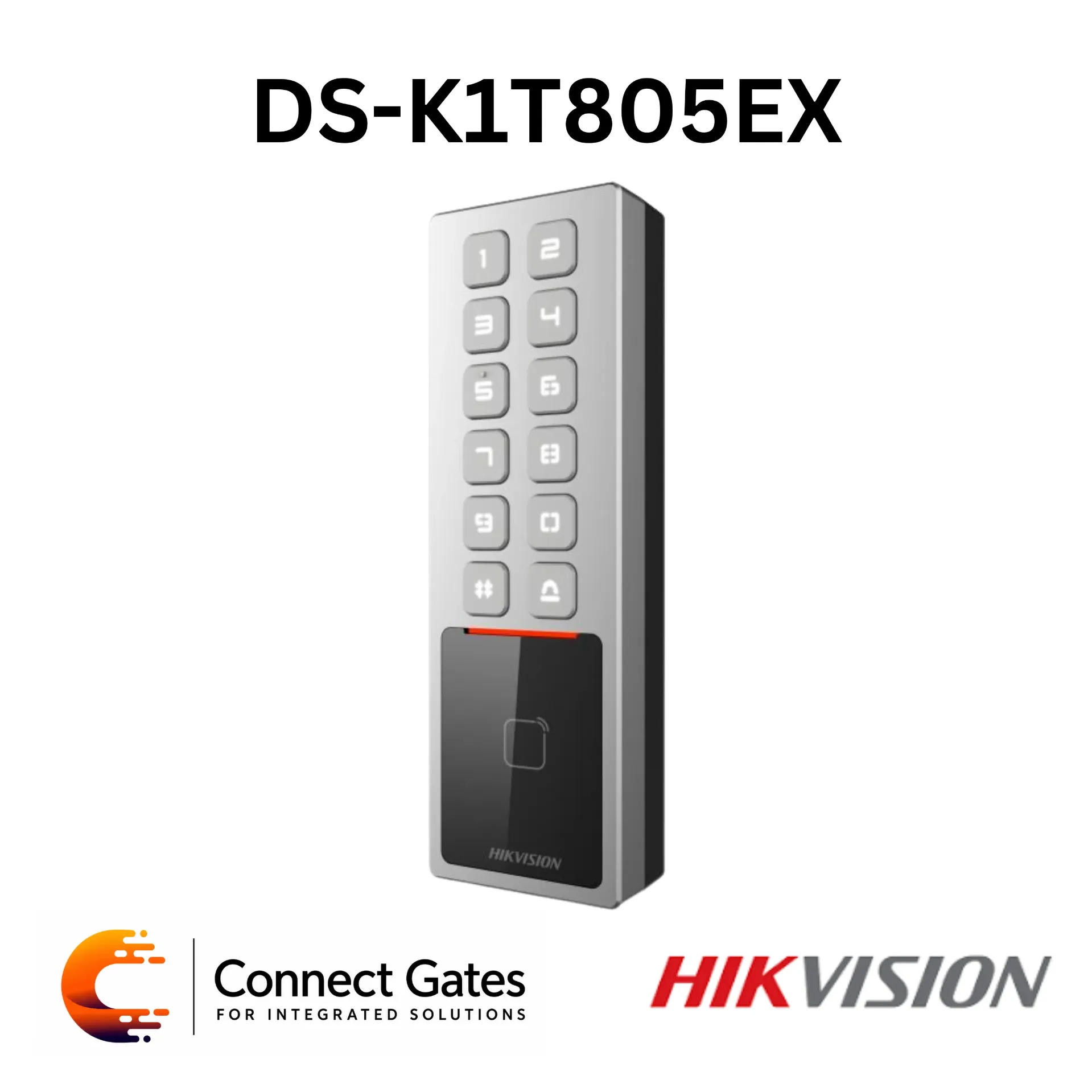

Hikvision DS-K1T805EX – Outdoor Metal Access Control Terminal
• The Hikvision DS-K1T805EX is a high-protection access control terminal designed for outdoor and harsh environments
• Features a slim metal body with durable construction for long-term reliability
• Supports card and PIN authentication for secure access control
• Ideal for external doors, gates, and industrial applications
Key Features
• High Protection Level: IP65 and IK08
• Slim Metal Design for Outdoor Installation
• Capacity: 10,000 Cards and 100,000 Events
• Built-in EM Card Reader
• Supports Mobile App Operation
• Web-Based Configuration via PC and Mobile
• Supports Card and PIN Authentication
• Stable Operation in Harsh Environments
Technical Specifications
System
• Operating System: Linux
Audio
• Built-in Buzzer
Network
• Wired Network: 10/100 Mbps Self-Adaptive
Interfaces
• Network Interface: 1
• RS-485 Interface: 1 (Supports OSDP)
• Wiegand Interface: W26/W34
• Lock Control: 1
• Exit Button: 1
• Door Contact Input: 1
• Alarm Input: 2
• Alarm Output: 1
• Tamper Input: 1
Capacity
• Card Capacity: 10,000
• Event Storage: 100,000
Authentication
• Card Type: EM Card
• Card Reading Distance: 0 – 1 cm
• Recognition Speed: < 1 Second
Functions
• Mobile App Support
• Web Configuration via PC and Mobile Browser
Power & General
• Power Supply: 12 VDC / 1 A
• Power Consumption: ≤ 12 W
• Working Temperature: -30°C to 60°C
• Working Humidity: 0% to 90% (Non-condensing)
Physical
• Dimensions: 57.7 × 177 × 34.6 mm
Applications
• Outdoor access control points
• Industrial sites and factories
• Building entrances and gates
• Harsh environment installations
System Integration
• Works as standalone or network access control device
• Compatible with controllers via RS-485 and Wiegand
• Integrates with locks, sensors, and exit devices
• Supports remote management via web and mobile
According to the datasheet (page 1), the device is designed with IP65 and IK08 protection levels, making it highly suitable for outdoor and heavy-duty environments
Connect Gates Recommendation
The DS-K1T805EX is an excellent choice for outdoor installations where durability and reliability are critical. Its compact metal design, high protection rating, and flexible control options make it ideal for demanding environments that require stable and secure access control.
