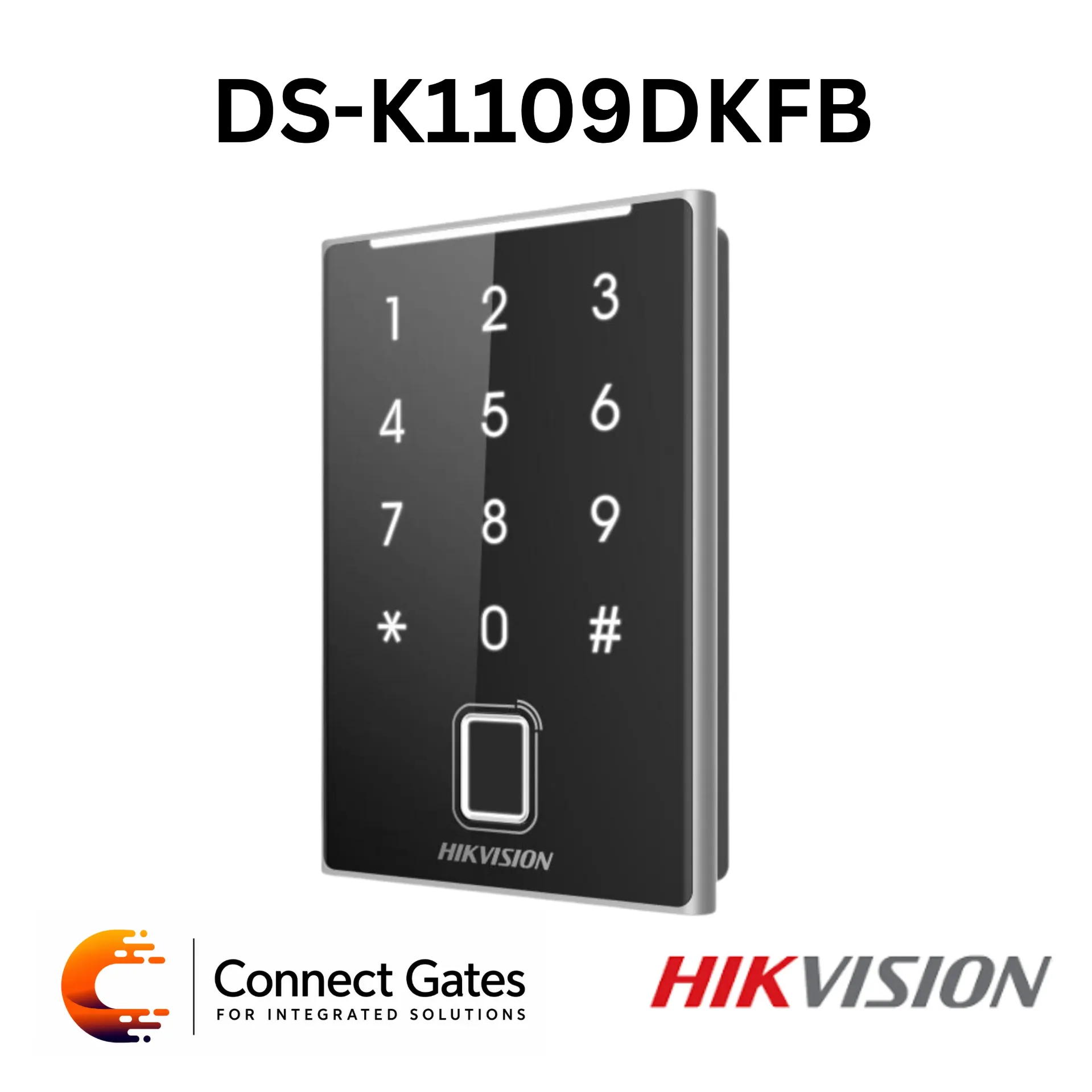

Hikvision DS-K1109DKFB – Multi-Authentication Card Reader with Fingerprint, Bluetooth, DESfire & Felica Support
The Hikvision DS-K1109DKFB is a professional multi-authentication access control reader designed for high-security environments requiring advanced authentication flexibility. The device supports DESfire, Felica, and M1 cards, along with fingerprint recognition, keypad authentication, and Bluetooth connectivity. With RS-485 and Wiegand communication support, IP65 weatherproof protection, and a modern slim design, the reader is ideal for enterprise-grade indoor and outdoor access control systems.
Technical Specifications:
System Type:
• Type: Multi-Authentication Access Control Reader
• Model: DS-K1109DKFB
Authentication Methods:
• RFID Card Authentication
• Fingerprint Authentication
• Password Authentication
• Bluetooth Authentication
Supports multiple authentication combinations for enhanced security.
Supported Card Types:
• M1 Card
• DESfire Card
• Felica Card
Provides enterprise-grade secure credential support.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
Wiegand:
• W26 / W34 Protocol
Supports integration with professional access control systems.
Smart Features:
• Bluetooth module support
• Tamper-proof protection
• Built-in buzzer
Provides modern mobile access functionality and enhanced operational security.
Keypad & Fingerprint:
• Built-in keypad
• Built-in fingerprint authentication module
Supports secure multi-factor authentication.
Power & Electrical:
• Power Supply:
- 12V DC
Power Consumption:
• With Load:
- ≤ 14W
• Without Load:
- ≤ 4W
Environmental Protection:
Protection Level:
• IP65
Suitable for indoor and outdoor installations.
Environmental Specifications:
• Working Temperature:
- -40°C to +65°C
• Working Humidity:
- 0% to 90% (Non-condensing)
Designed for harsh environmental conditions.
Physical Specifications:
• Dimensions:
- 125 × 84.5 × 18 mm
• Weight:
- ≤ 1 kg
(Page 2 includes detailed dimensions and installation drawings.)
Installation:
• Wall mounting installation
Available Model:
• DS-K1109DKFB
Key Features:
• Multi-authentication access reader
• Supports fingerprint, card, password & Bluetooth access
• Supports DESfire, Felica & M1 cards
• RS-485 & Wiegand communication
• Built-in keypad
• Bluetooth mobile authentication support
• Tamper-proof protection
• Built-in buzzer
• IP65 weatherproof design
• Slim modern appearance
• Enterprise-grade security solution
Applications:
• Enterprise buildings
• Government facilities
• Financial institutions
• High-security offices
• Commercial facilities
• Smart access systems
• Outdoor access control projects
• Turnstile integration systems
Connect Gates Professional Opinion:
The DS-K1109DKFB is one of Hikvision’s most advanced multi-authentication readers, combining biometric verification, secure RFID technologies, keypad access, and Bluetooth authentication in a single professional device. It is ideal for enterprise and high-security projects requiring maximum authentication flexibility and modern smart access control capabilities.
