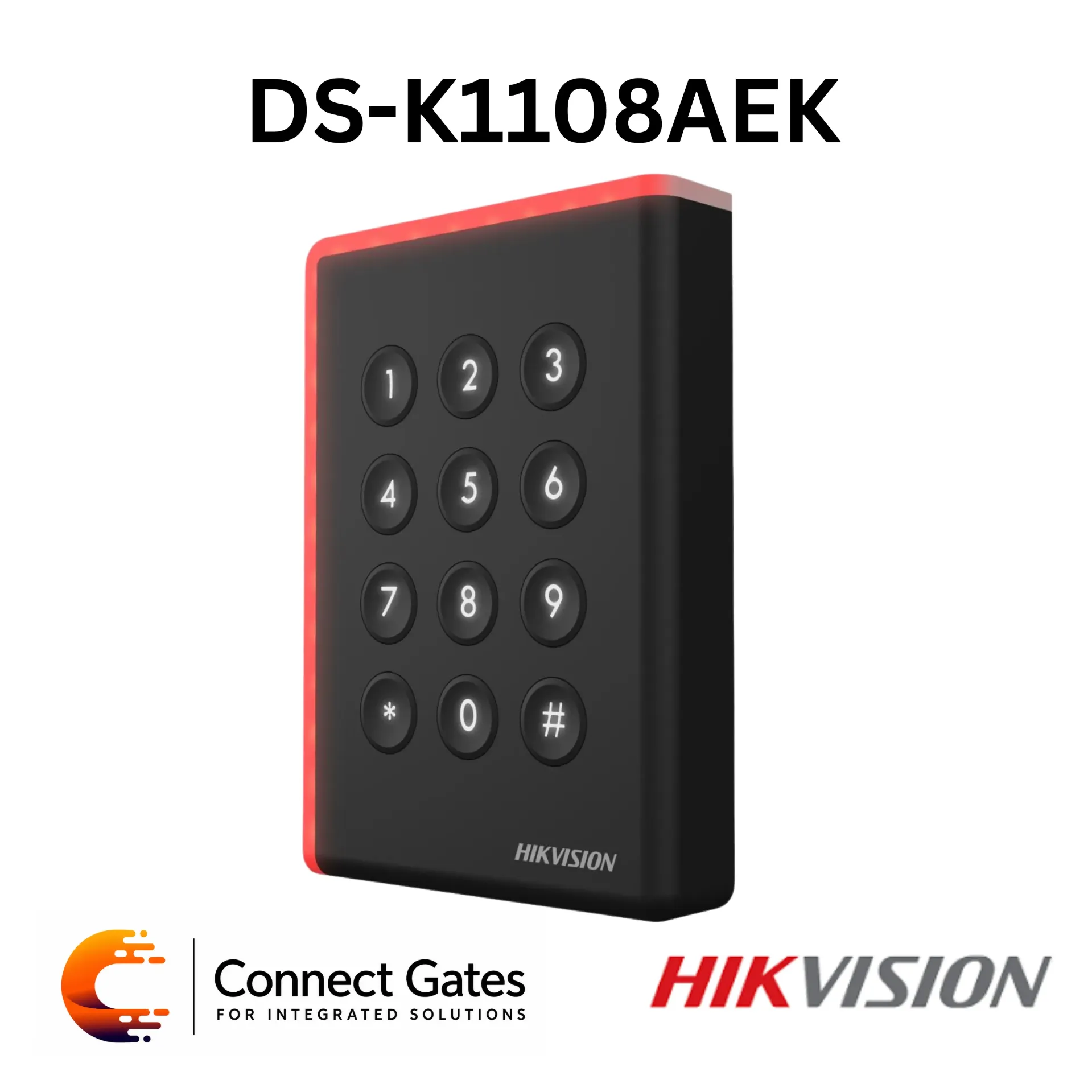

Hikvision DS-K1108AEK – Pro EM Card Reader with Keypad, RS-485, OSDP & IP65 Protection
The Hikvision DS-K1108AEK is a professional EM card reader with integrated keypad, designed for secure and reliable access control applications. The device supports RS-485 communication with OSDP protocol, Wiegand compatibility, and IP65 protection for stable indoor and outdoor operation. Its professional wall-mounted design and keypad authentication make it ideal for enterprise access control and turnstile integration systems.
Technical Specifications:
System Type:
• Type: Professional Access Control Card Reader with Keypad
• Model: DS-K1108AEK
Authentication:
Supported Card Type:
• EM Card
Card Reading Frequency:
• 125 KHz
Supports reliable EM RFID authentication.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
• Supports OSDP Protocol
Supported Baud Rates:
• 9600
• 19200
• 38400
Wiegand:
• W26 / W34 Protocol
Provides stable and secure communication with professional access controllers.
Keypad:
• Built-in Keypad
Supports secure card + PIN authentication.
Reader Features:
• Built-in buzzer for status indication
• Tamper-proof function
• ID settings via DIP switch
Ensures secure operation and flexible system configuration.
Power & Electrical:
• Power Supply:
- 12V DC
• Power Consumption:
- ≤ 2W
Environmental Protection:
Protection Level:
• IP65
Suitable for indoor and outdoor installations.
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (Non-condensing)
Physical Specifications:
• Dimensions:
- 123 × 88 × 21 mm
• Net Weight:
- 0.14 kg
• Gross Weight:
- 0.37 kg
(Page 2 and page 3 include detailed specifications and dimensional drawings.)
Installation:
• Wall mounting installation
Available Models in the Series:
• DS-K1108AE
• DS-K1108AEK
• DS-K1108AM
• DS-K1108AMK
• DS-K1108AD
• DS-K1108ADK
Key Features:
• Professional EM card reader with keypad
• RS-485 with OSDP support
• Wiegand W26 / W34 compatibility
• Built-in keypad for PIN authentication
• Built-in buzzer for status indication
• Tamper-proof protection
• IP65 weatherproof design
• Professional wall-mounted construction
• Stable and secure communication
Applications:
• Office buildings
• Commercial facilities
• Residential compounds
• Enterprise access control systems
• Outdoor access systems
• Turnstile integration projects
• Security gate systems
Connect Gates Professional Opinion:
The DS-K1108AEK is a strong professional EM keypad reader for projects requiring secure card + PIN authentication with stable communication protocols. Its IP65 protection and OSDP support make it suitable for both indoor and outdoor enterprise access control installations.
