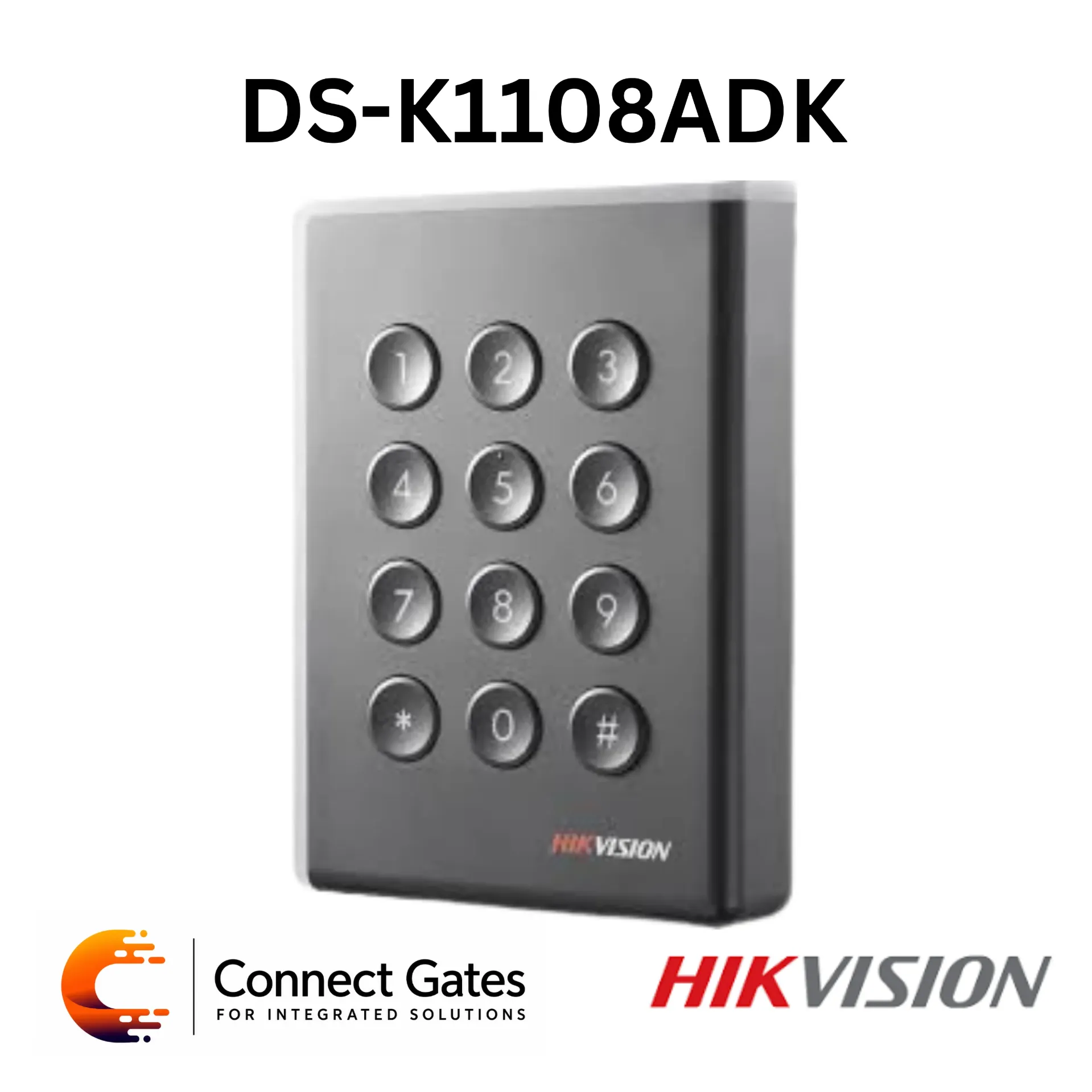

Hikvision DS-K1108ADK – Pro Desfire & Felica Card Reader with Keypad, RS-485, OSDP & IP65 Protection
The Hikvision DS-K1108ADK is a professional high-security card reader with integrated keypad, designed for enterprise-grade access control applications. The reader supports Desfire, Felica, and M1 card technologies, offering advanced authentication capabilities with RS-485, OSDP, and Wiegand communication support. With IP65 weatherproof protection and a modern wall-mounted design, the device is ideal for secure indoor and outdoor installations requiring higher-level credential security.
Technical Specifications:
System Type:
• Type: Professional High-Security Access Control Card Reader with Keypad
• Model: DS-K1108ADK
Authentication:
Supported Card Types:
• M1 Card
• Desfire Card
• Felica Card
Card Reading Frequency:
• 13.56 MHz
Card Radio Frequency Standard:
• ISO 14443-A
Supports advanced secure RFID authentication technologies.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
• Supports OSDP Protocol
Supported Baud Rates:
• 9600
• 19200
• 38400
Wiegand:
• W26 / W34 Protocol
Provides stable and secure integration with enterprise access control systems.
Keypad:
• Built-in Keypad
Supports secure card + PIN authentication.
Reader Features:
• Built-in buzzer for status indication
• Tamper-proof function
• ID settings via DIP switch
Ensures secure operation and easy system configuration.
Power & Electrical:
• Power Supply:
- 12V DC
• Power Consumption:
- ≤ 2W
Environmental Protection:
Protection Level:
• IP65
Suitable for indoor and outdoor professional installations.
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (Non-condensing)
Physical Specifications:
• Dimensions:
- 123 × 88 × 21 mm
• Net Weight:
- 0.14 kg
• Gross Weight:
- 0.37 kg
(Page 2 and page 3 include detailed specifications and dimensional drawings.)
Installation:
• Wall mounting installation
Available Models in the Series:
• DS-K1108AE
• DS-K1108AEK
• DS-K1108AM
• DS-K1108AMK
• DS-K1108AD
• DS-K1108ADK
Key Features:
• Professional Desfire & Felica card reader with keypad
• Supports M1, Desfire & Felica cards
• RS-485 with OSDP support
• Wiegand W26 / W34 compatibility
• Built-in keypad for PIN authentication
• Built-in buzzer for status indication
• Tamper-proof protection
• IP65 weatherproof design
• Professional wall-mounted construction
• Secure enterprise-grade authentication
Applications:
• Enterprise security systems
• Government facilities
• Financial institutions
• High-security buildings
• Commercial facilities
• Turnstile integration projects
• Outdoor access systems
Connect Gates Professional Opinion:
The DS-K1108ADK is one of the most advanced readers in the 1108A Series, designed for projects requiring higher credential security and enterprise-grade authentication technologies such as Desfire and Felica. Combined with OSDP communication and keypad authentication, it delivers excellent security performance for professional installations.
