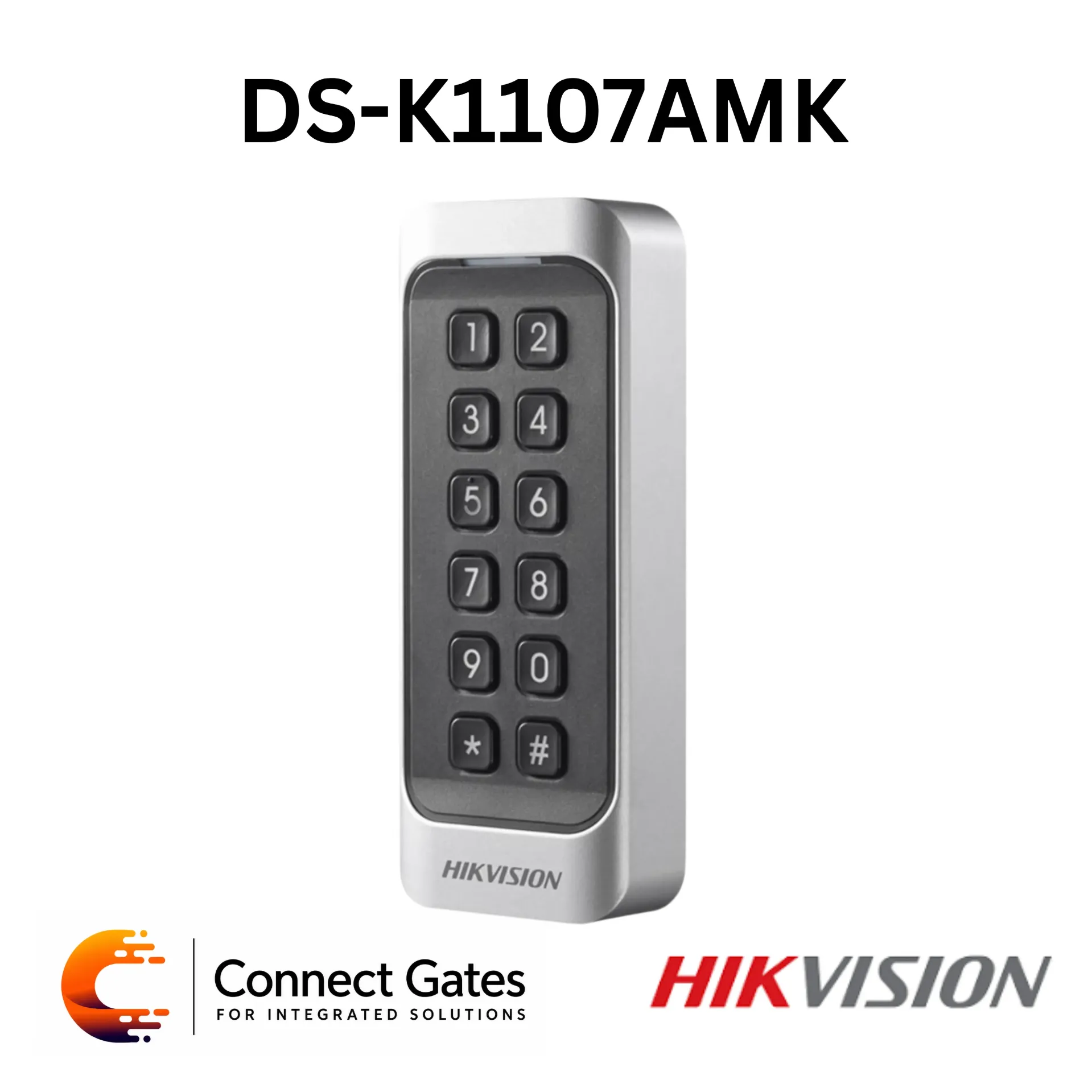

Hikvision DS-K1107AMK – Mifare Card Reader with Keypad, RS-485, OSDP & IP65 Protection
The Hikvision DS-K1107AMK is a professional Mifare card reader with integrated keypad, designed for secure access control applications in indoor and outdoor environments. Equipped with a 32-bit high-speed processor, RS-485 communication with OSDP support, and Wiegand compatibility, the reader delivers stable and secure operation for enterprise security systems. Its IP65-rated housing and watchdog self-repair design ensure long-term reliability in demanding installations.
Technical Specifications:
System Type:
• Type: Professional Access Control Card Reader with Keypad
• Model: DS-K1107AMK
Authentication:
Supported Card Type:
• M1 Card
Card Reading Frequency:
• 13.56 MHz
Built-in Mifare card reading module for secure RFID authentication.
Processor & Performance:
• Equipped with 32-bit High-Speed Processor
Ensures fast and stable access authentication performance.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
• Supports OSDP Protocol
• Baud Rate:
- 19200
Wiegand:
• W26 / W34 Protocol
• Configurable via DIP Switch
Provides secure integration with professional access control systems.
Keypad:
• Built-in 12-Key Keypad
Keypad Includes:
• Numeric keys (0–9)
• * Key
• # Key
Supports secure card + PIN authentication.
Reader Features:
• Built-in audible buzzer
• Tamper-proof alarm support
• Online firmware upgrade function
• Watchdog self-repair design
The watchdog mechanism automatically restores operation in case of abnormal conditions, ensuring long-term reliability.
Power & Electrical:
• Power Supply:
- 12V DC
• Power Consumption:
- ≤ 2W
Environmental Protection:
Protection Level:
• IP65
Suitable for indoor and outdoor installations.
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (Non-condensing)
Physical Specifications:
• Dimensions:
- 115 × 44 × 22 mm
• Net Weight:
- 0.16 kg
• Gross Weight:
- 0.25 kg
(Page 2 contains detailed technical specifications.)
Installation:
• Wall mounting with screws
• Does not support gang box installation
Available Models:
• DS-K1107AMK
• DS-K1107AMK/CANADA INC.
• DS-K1107AMK/subassembly
• DS-K1107AMK/subassembly/USA
• DS-K1107AMK/CANADA INC/USA
Key Features:
• Professional Mifare card reader with keypad
• 32-bit high-speed processor
• RS-485 with OSDP support
• Wiegand W26 / W34 compatibility
• Built-in keypad for PIN authentication
• Built-in audible buzzer
• Tamper alarm support
• Online firmware upgrade
• Watchdog self-repair design
• IP65 weatherproof protection
• Compact industrial design
Applications:
• Office buildings
• Commercial facilities
• Residential compounds
• Factories
• Outdoor access control systems
• Turnstile integration systems
• Enterprise security projects
Connect Gates Professional Opinion:
The DS-K1107AMK is an ideal solution for projects requiring higher authentication security through card + PIN verification in outdoor environments. With IP65 protection, OSDP communication, and self-recovery capability, it provides reliable long-term performance for professional access control systems.
