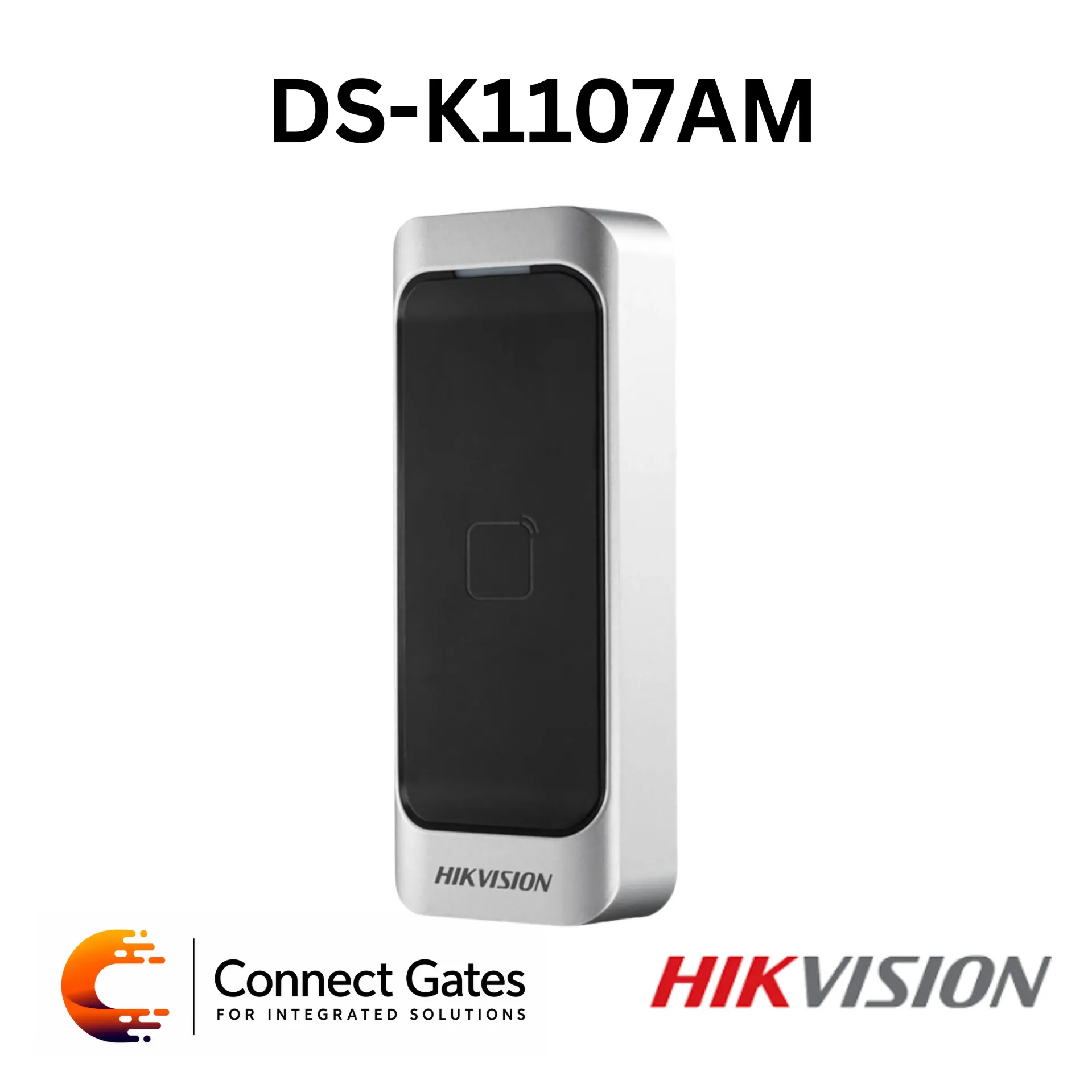

Hikvision DS-K1107AM – Mifare Card Reader with RS-485, OSDP, Wiegand & IP65 Protection
The Hikvision DS-K1107AM is a professional Mifare card reader designed for secure and reliable access control applications. Equipped with a 32-bit high-speed processor, the reader supports RS-485 communication with OSDP protocol, Wiegand compatibility, and IP65 weatherproof protection for stable indoor and outdoor operation. Its compact industrial design and watchdog self-repair function make it ideal for long-term professional security projects.
Technical Specifications:
System Type:
• Type: Professional Access Control Card Reader
• Model: DS-K1107AM
Authentication:
Supported Card Type:
• M1 Card
Card Reading Frequency:
• 13.56 MHz
Card Reading Distance:
• ≤ 50 mm
Built-in Mifare card reading module for secure RFID authentication.
Processor & Performance:
• Equipped with 32-bit High-Speed Processor
Provides fast and stable card reading performance.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
• Supports OSDP Protocol
• Baud Rate:
- 19200
Wiegand:
• W26 / W34 Protocol
• Configurable via DIP Switch
Ensures reliable integration with professional access control systems.
Reader Features:
• Built-in audible buzzer
• Power indicator
• Status indicator
• Tamper-proof alarm support
• Online firmware upgrade function
• Watchdog self-repair design
The watchdog mechanism helps restore operation automatically in case of abnormal conditions, ensuring long-term stable performance.
Power & Electrical:
• Power Supply:
- 12V DC
• Power Consumption:
- ≤ 2W
Environmental Protection:
Protection Level:
• IP65
Suitable for indoor and outdoor installations.
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (Non-condensing)
Physical Specifications:
• Dimensions:
- 115 × 44 × 22 mm
(Page 2 contains detailed specifications and dimensions.)
Installation:
• Wall mounting with screws
• Does not support gang box installation
Available Models:
• DS-K1107AM
• DS-K1107AM (USA-STD)
• DS-K1107AM/AMETA
• DS-K1107AM/subassembly
Key Features:
• Professional Mifare card reader
• 32-bit high-speed processor
• RS-485 with OSDP support
• Wiegand W26 / W34 compatibility
• Built-in audible buzzer
• Power & status indicators
• Tamper alarm support
• Online firmware upgrade
• Watchdog self-repair design
• IP65 weatherproof protection
• Compact industrial design
Applications:
• Office buildings
• Commercial facilities
• Factories
• Residential compounds
• Outdoor access control systems
• Turnstile integration systems
• Enterprise security projects
Connect Gates Professional Opinion:
The DS-K1107AM is a compact and reliable professional Mifare reader designed for projects requiring secure communication and outdoor durability. With OSDP support, IP65 protection, and self-recovery capability, it delivers higher stability and reliability compared to conventional entry-level readers.
