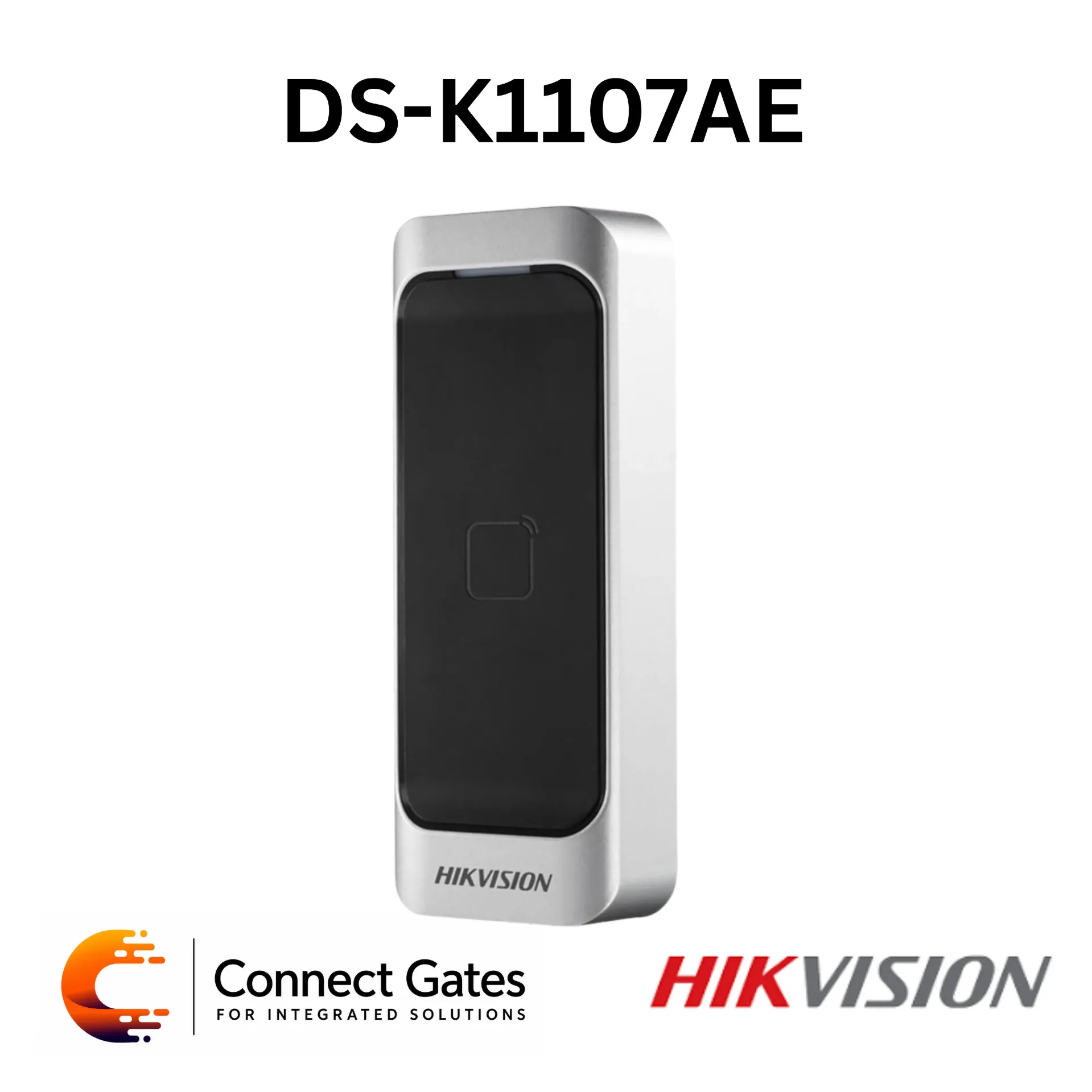

Hikvision DS-K1107AE – EM Card Reader with RS-485, OSDP, Wiegand & IP65 Protection
The Hikvision DS-K1107AE is a professional access control card reader designed for reliable and secure authentication in indoor and outdoor environments. Equipped with a 32-bit high-speed processor, the reader supports EM card technology, RS-485 communication with OSDP support, and Wiegand protocol compatibility. Its IP65-rated housing and watchdog self-repair design ensure stable long-term performance in demanding security applications.
Technical Specifications:
System Type:
• Type: Professional Access Control Card Reader
• Model: DS-K1107AE
Authentication:
Supported Card Type:
• EM Card
Card Reading Frequency:
• 125 KHz
Built-in EM card reading module for reliable RFID authentication.
Processor & Performance:
• Equipped with 32-bit High-Speed Processor
Ensures fast and stable card reading performance.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
• Supports OSDP Protocol
• Baud Rate:
- 19200
Wiegand:
• W26 / W34 Protocol
• Configurable via DIP Switch
Provides flexible integration with professional access control systems.
Reader Features:
• Built-in audible buzzer
• Tamper-proof alarm support
• Online upgrade function
• Watchdog self-repair design
The watchdog mechanism automatically restores the device operation in case of abnormal system behavior, ensuring long service life.
Power & Electrical:
• Power Supply:
- 12V DC
• Power Consumption:
- ≤ 2W
Environmental Protection:
Protection Level:
• IP65
Suitable for indoor and outdoor installations.
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (Non-condensing)
Physical Specifications:
• Dimensions:
- 115 × 44 × 22 mm
• Net Weight:
- 0.13 kg
• Gross Weight:
- 0.24 kg
(Page 2 contains detailed dimensions and specifications.)
Installation:
• Wall mounting with screws
• Does not support gang box installation
Key Features:
• Professional EM card reader
• 32-bit high-speed processor
• RS-485 with OSDP support
• Wiegand W26 / W34 compatibility
• Built-in audible buzzer
• Tamper alarm support
• Online firmware upgrade
• Watchdog self-repair design
• IP65 weatherproof protection
• Compact and slim industrial design
Applications:
• Office buildings
• Factories
• Residential compounds
• Commercial buildings
• Outdoor access control systems
• Turnstile systems
• Enterprise security projects
Connect Gates Professional Opinion:
The DS-K1107AE is an excellent compact outdoor reader for professional access control projects requiring stable operation and weatherproof protection. Its watchdog self-repair mechanism and OSDP support provide higher reliability and communication security compared to standard entry-level readers.
