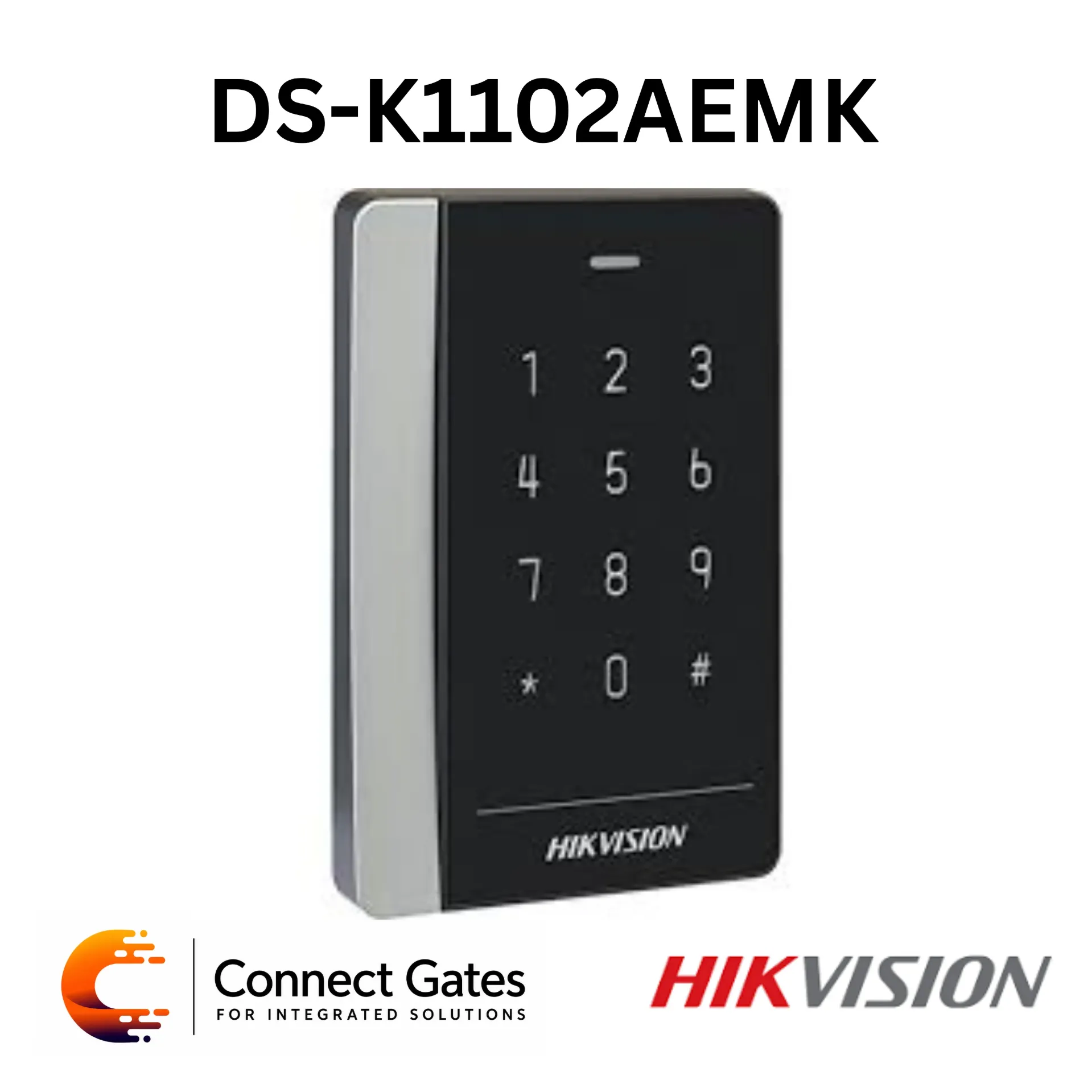

Hikvision DS-K1102AEMK – Dual-Frequency Card Reader with Keypad, RS-485, OSDP & Wiegand Support
The Hikvision DS-K1102AEMK is a professional dual-frequency access control card reader designed for secure and flexible authentication in modern security systems. It supports both EM and M1 cards, features RS-485 communication with OSDP support, and includes Wiegand compatibility for seamless integration with professional access control systems. The built-in keypad enables secure card + PIN authentication for higher security applications.
Technical Specifications:
System Type:
• Type: Professional Access Control Card Reader
• Model: DS-K1102AEMK
Authentication:
Supported Card Types:
• EM Card
• M1 Card
Card Reading Frequencies:
• 125 KHz (EM)
• 13.56 MHz (M1)
Supports dual-frequency RFID authentication for maximum compatibility.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
• Supports OSDP Protocol
Supported Baud Rates:
• 9600
• 19200
• 38400
Wiegand Protocol:
• W26
• W34
Provides secure and stable communication with access controllers.
Keypad:
• Built-in 12-Key Keypad
Keypad Includes:
• Numeric keys (0–9)
• * Key
• # Key
Supports card + PIN authentication for enhanced security.
Reader Features:
• Built-in audible beeper
• Tamper-proof alarm
• ID settings via DIP switch
Ensures secure operation and easy configuration.
Power & Electrical:
• Power Supply:
- 12V DC / 500mA
• Power Consumption:
- ≤ 2W
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (Non-condensing)
Physical Specifications:
• Dimensions:
- 121 × 86.5 × 14 mm
• Weight:
- ≤ 0.14 kg
(Page 2 includes detailed dimensions and specifications.)
Installation:
• Supports:
- 86 Gang Box
- 120 Gang Box
Included Accessories:
• DS-K3G200X
• DS-K3B411SX
(Accessories shown in the datasheet.)
Key Features:
• Dual-frequency RFID card reader
• Supports EM & M1 cards
• Built-in keypad for PIN authentication
• RS-485 with OSDP support
• Wiegand W26 / W34 compatibility
• Built-in audible buzzer
• Tamper alarm support
• Slim and modern design
• Easy configuration via DIP switch
• Stable and secure communication
Applications:
• Office buildings
• Commercial facilities
• Residential compounds
• Factories
• Schools & universities
• Enterprise access control systems
• Turnstile access systems
Connect Gates Professional Opinion:
The DS-K1102AEMK is one of the most flexible readers in the 1102A Series thanks to its dual-frequency support and keypad authentication. It is ideal for projects that require compatibility with both EM and Mifare cards while maintaining secure communication through OSDP and RS-485.
