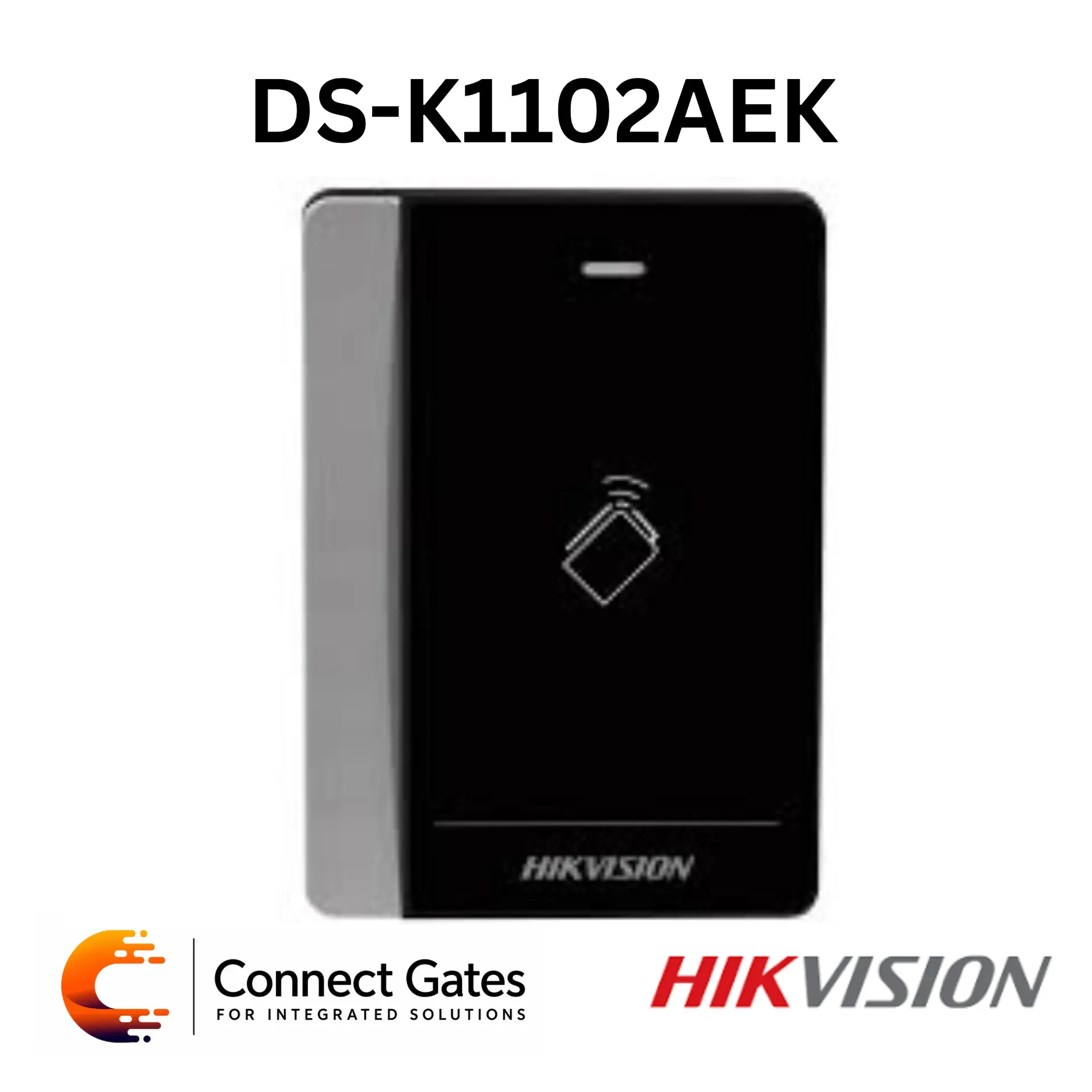

Hikvision DS-K1102A Series – Pro Card Reader with RS-485, OSDP, Wiegand & Optional Keypad
The Hikvision DS-K1102A Series is a professional access control card reader designed for secure and reliable authentication in modern security systems. The series supports both EM and M1 cards, features RS-485 communication with OSDP support, and includes Wiegand compatibility for flexible integration with professional access control systems. Optional keypad versions provide additional PIN authentication for enhanced security.
Available Models:
EM Card Models:
• DS-K1102AE
• DS-K1102AEK
Mifare Card Models:
• DS-K1102AM
• DS-K1102AMK
Dual-Frequency Models:
• DS-K1102AEM
• DS-K1102AEMK
Technical Specifications:
System Type:
• Type: Professional Access Control Card Reader
• Series: DS-K1102A
Authentication:
Supported Card Frequencies:
EM Card Support:
• 125 KHz
Supported Models:
• DS-K1102AE
• DS-K1102AEK
• DS-K1102AEM
• DS-K1102AEMK
M1 Card Support:
• 13.56 MHz
Supported Models:
• DS-K1102AM
• DS-K1102AMK
• DS-K1102AEM
• DS-K1102AEMK
Provides flexible support for multiple RFID technologies.
Communication & Interfaces:
RS-485:
• 1 × RS-485 Interface
• Supports OSDP Protocol
• Baud Rates:
- 9600
- 19200
- 38400
Wiegand Protocol:
• W26
• W34
Ensures secure and flexible communication with access controllers.
Keypad Versions:
Without Keypad:
• DS-K1102AE
• DS-K1102AM
• DS-K1102AEM
With 12-Key Keypad:
• DS-K1102AEK
• DS-K1102AMK
• DS-K1102AEMK
Keypad Includes:
• Numeric keys (0–9)
• * Key
• # Key
Reader Features:
• Built-in audible beeper
• Tamper-proof alarm
• ID settings via DIP switch
Provides enhanced operational security and easy configuration.
Power & Electrical:
• Power Supply:
- 12V DC / 500mA
• Power Consumption:
- ≤ 2W
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (Non-condensing)
Physical Specifications:
• Dimensions:
- 121 × 86.5 × 14 mm
• Weight:
- ≤ 0.14 kg
(Page 2 includes detailed dimensions and specifications.)
Installation:
• Supports:
- 86 Gang Box
- 120 Gang Box
Included Accessories:
• DS-K3G200X
• DS-K3B411SX
(Accessories shown on page 2 of the datasheet.)
Key Features:
• Professional RFID access reader
• Supports EM & M1 cards
• RS-485 with OSDP support
• Wiegand W26 / W34 compatibility
• Optional keypad for PIN authentication
• Built-in audible buzzer
• Tamper alarm support
• Slim and modern design
• Flexible multi-frequency models
Applications:
• Office buildings
• Commercial facilities
• Residential compounds
• Factories
• Schools & universities
• Enterprise access control systems
• Turnstile integration systems
Connect Gates Professional Opinion:
The DS-K1102A Series is an excellent professional-grade reader family offering strong compatibility and flexibility. The availability of EM, Mifare, and dual-frequency models makes it suitable for a wide range of access control projects while maintaining reliable RS-485 and OSDP communication.
