Hikvision DS-K1101 Series – Pro Card Reader with RS-485, Wiegand & Optional Keypad
The Hikvision DS-K1101 Series is a professional access control card reader designed for secure and reliable authentication in modern security systems. It supports M1 and EM cards, features both RS-485 and Wiegand communication interfaces, and includes optional keypad versions for card + PIN authentication. With IP64 protection and a premium PMMA front panel design, the device is ideal for commercial and enterprise access control projects.
Technical Specifications:
System Type:
• Type: Professional Access Control Card Reader
• Series: DS-K1101
Authentication:
Supported Card Types:
• M1 Card
• EM Card
Card Reading Frequency:
• 13.56 MHz
Supports secure RFID authentication.
Communication & Interfaces:
• RS-485 Interface
• Wiegand Interface
Allows flexible integration with various access controllers.
Keypad Versions:
Without Keypad:
• DS-K1101M

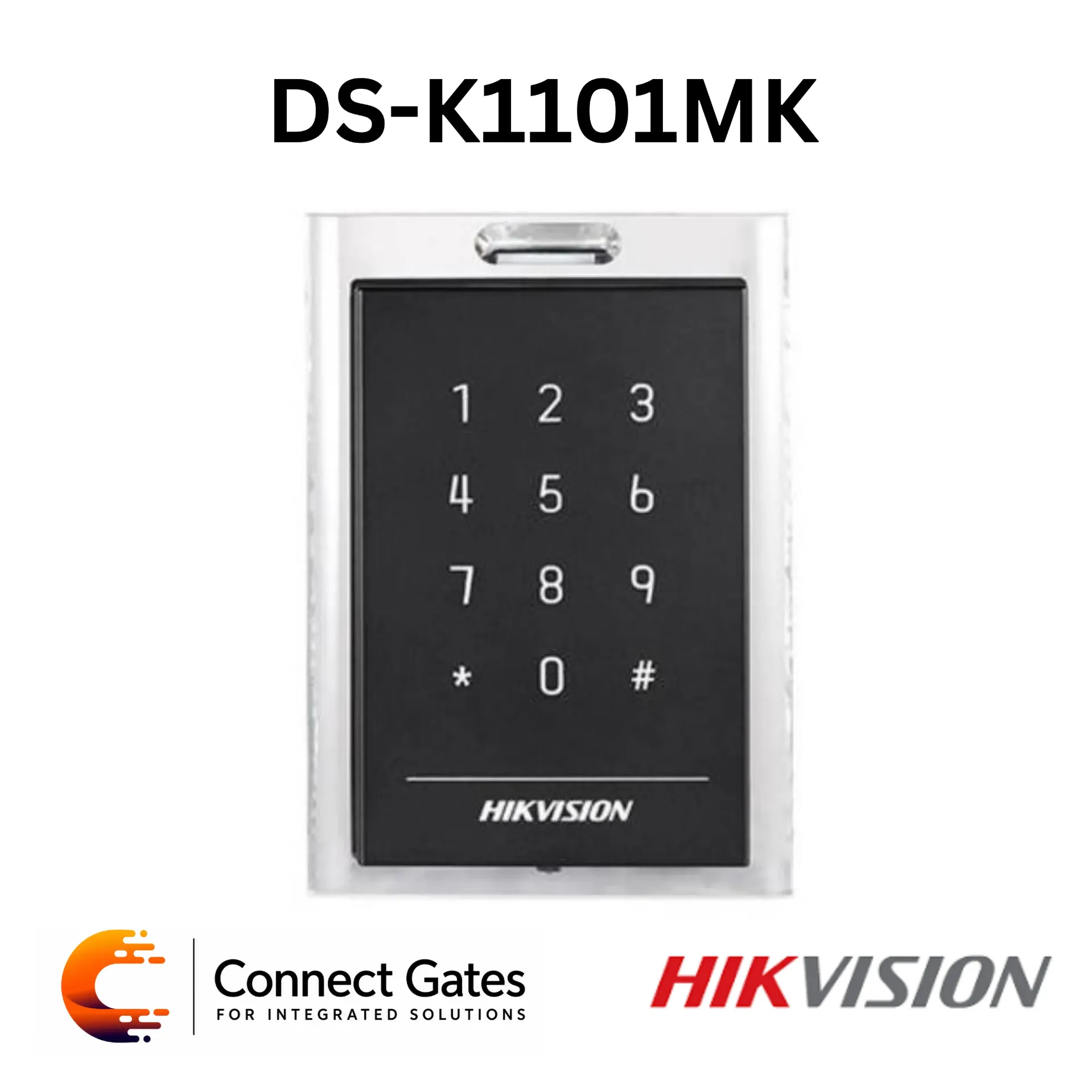

With 12-Key Keypad:
• DS-K1101MK
Keypad Includes:
• Numeric keys (0–9)
• * Key
• # Key
Reader Features:
• Built-in audible beeper
• ID settings via DIP switch
Provides easy configuration and operation.
Design & Construction:
Housing Material:
• PC + ABS shell
• PMMA front panel design
Offers enhanced durability with a premium modern appearance.
Environmental Protection:
• Protection Level:
- IP64
Suitable for indoor and semi-outdoor installations.
Power & Electrical:
• Power Supply:
- 12V DC ≤ 500mA
• Power Consumption:
- ≤ 2W
Environmental Specifications:
• Working Temperature:
- -20°C to +65°C
• Working Humidity:
- 10% to 90% (non-condensing)
Physical Specifications:
• Dimensions:
- 132 × 92.3 × 20.5 mm
• Weight:
- ≤ 0.14 kg
(Page 2 contains detailed dimensions and installation information.)
Installation:
• Designed for 120 Gang Box installation only
Available Models:
• DS-K1101M
• DS-K1101MK
Key Features:
• Professional M1 / EM card reader
• RS-485 + Wiegand communication
• Optional keypad for PIN authentication
• Built-in audible buzzer
• IP64 protection level
• Premium PMMA panel design
• Easy ID configuration via DIP switch
• Stable and reliable operation
Applications:
• Office buildings
• Commercial facilities
• Residential compounds
• Factories
• Schools & universities
• Enterprise access control systems
Connect Gates Professional Opio:
nThe DS-K1101 Series is a more professional-grade solution compared to value series readers. The addition of RS-485 communication and premium panel design makes it ideal for enterprise projects requiring stable communication, modern appearance, and enhanced reliability.
