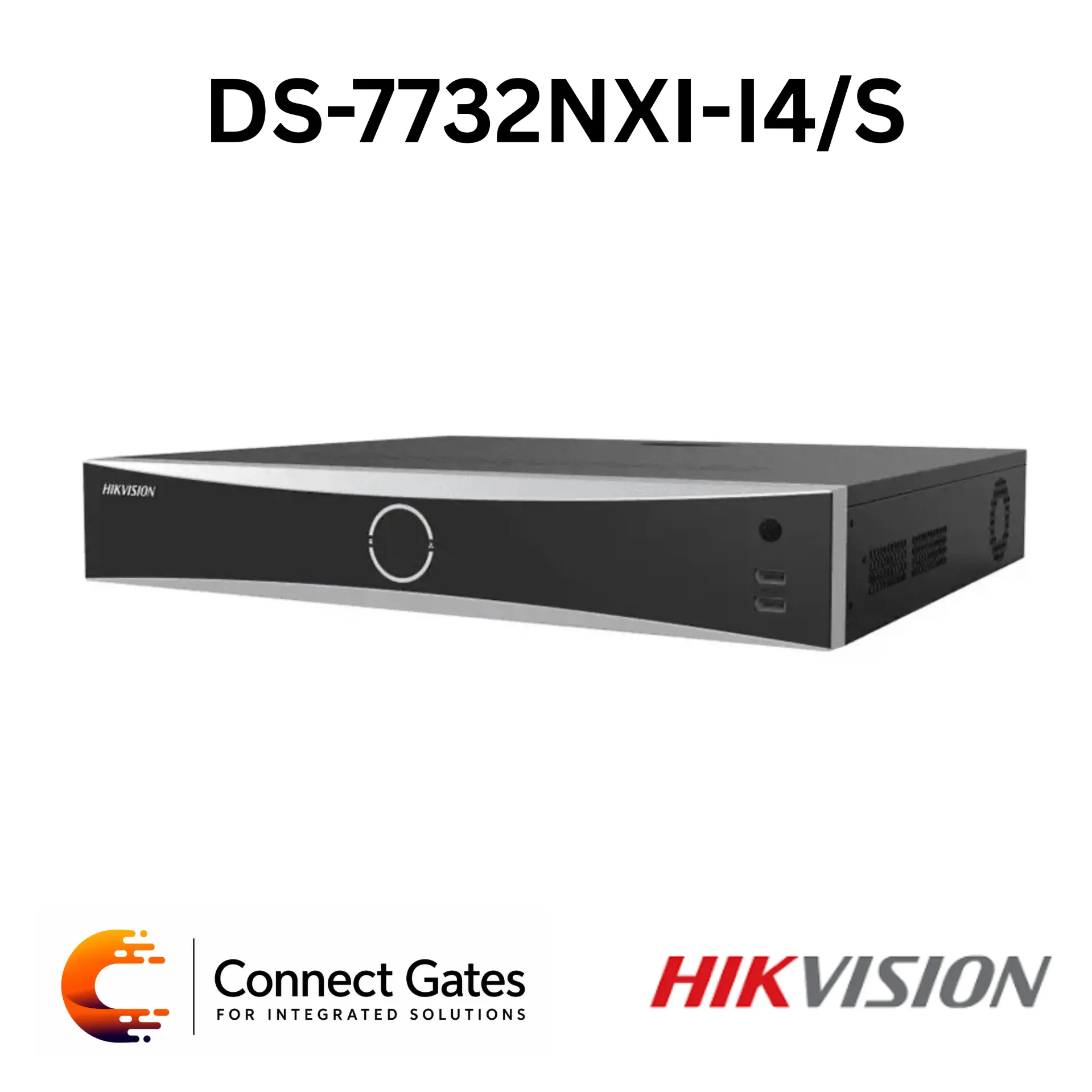

Hikvision DS-7732NXI-I4/S – 32-Channel AcuSense 4K NVR with Deep Learning AI, 4 SATA Bays, 4K HDMI Output, Dual Gigabit LAN & Up to 64TB HDD Support
Overview:
• The Hikvision DS-7732NXI-I4/S is a 32-channel 1U AcuSense 4K Network Video Recorder designed for professional smart IP surveillance systems requiring advanced AI analytics, high-resolution recording, strong display output, and flexible storage capacity.
• It supports H.265+, H.265, H.264+, H.264, and MPEG4 video formats for efficient recording and broad camera compatibility.
• The NVR supports intelligent analytics based on deep learning algorithms, including perimeter protection, facial recognition, Motion Detection 2.0, ANPR, people counting, video structuralization, and VCA by compatible cameras.
• It supports up to 4-channel perimeter protection, up to 4-channel facial recognition for video stream, and up to 8-channel facial recognition for face picture depending on the model version.
• HDMI output supports up to 4K resolution, with HDMI/VGA output options for professional local monitoring.
• It includes 4 SATA interfaces, with selected versions supporting up to 16TB per HDD, giving up to 64TB total storage capacity.
• The device also supports up to 8 IP speakers, POS information overlay, POS-triggered recording and alarm, dual Gigabit LAN, eSATA, alarm input/output, and Hik-Connect/DDNS for easy network management.
Key Features:
• 32-Channel IP Camera Input: Supports up to 32 IP camera inputs depending on model version.
• AcuSense Deep Learning AI: Provides intelligent analytics based on deep learning algorithms.
• Motion Detection 2.0: Supports human and vehicle recognition to reduce false alarms.
• Perimeter Protection: Supports up to 4 channels by device with human and vehicle recognition.
• Facial Recognition: Supports face picture comparison, human face capture, and face picture search.
• Face Picture Library: Supports up to 16 face picture libraries, with capacity depending on model version.
• ANPR Support: Supports ANPR by compatible cameras, including Egypt among supported regions.
• Vehicle & Plate Attributes: Supports vehicle brand, vehicle color, vehicle type, plate number, plate color, and plate type with compatible cameras.
• H.265+ Compression: Reduces storage space by up to 75%.
• 4K HDMI Output: HDMI output supports up to 4K resolution.
• Dual HDMI Output: Supports HDMI1 and HDMI2 output modes.
• 16-Channel Synchronous Playback: Supports simultaneous playback for up to 16 channels.
• Up to 32-Channel 1080p Decoding: Selected versions support up to 32-channel 1080p decoding when AI by NVR is disabled.
• 4 SATA Interfaces: Supports up to 4 HDDs for extended recording storage.
• Hot-Plug Storage Support: Selected versions support SATA hot-plug.
• Dual Gigabit LAN: Includes 2 RJ45 10/100/1000Mbps self-adaptive Ethernet interfaces.
• POS Function: Supports POS information overlay on live view and playback, plus POS-triggered recording and alarm.
• IP Speaker Support: Supports connection of up to 8 IP speakers.
• Professional Interfaces: Supports eSATA, RS-485, RS-232, keyboard interface, alarm input/output, USB 2.0, and USB 3.0.
• Hik-Connect & DDNS: Enables easy network management and remote access.
Technical Specifications:
• Brand: Hikvision
• Model: DS-7732NXI-I4/S
• Available Model Family: DS-7732NXI-I4/S Series
• Product Type: 32-Channel AcuSense 4K Network Video Recorder
• Series: 1U AcuSense 4K NVR
• Video Compression: H.265+, H.265, H.264+, H.264, MPEG4
• AI by Device: Facial recognition, perimeter protection, Motion Detection 2.0
• AI by Camera: Facial recognition, perimeter protection, video structuralization, throwing objects from building, Motion Detection 2.0, ANPR, people counting, VCA
• AI Engine: 1 engine, adjustable engine mode
• Facial Detection & Analytics: Face picture comparison, human face capture, face picture search
• Face Attributes: Wearing glasses, wearing a mask, facial expression, body temperature
• Face Picture Library: Up to 16 libraries; up to 10,000 face pictures for standard versions, up to 50,000 face pictures for selected E versions
• Face Picture Comparison: Up to 4-channel face picture comparison alarm; up to 8-channel for selected E versions
• Facial Detection Performance: 1-channel human face capture up to 4MP for standard versions; 4-channel human face capture up to 2MP for selected E versions
• Motion Detection 2.0 by Device: 16 channels for standard versions; all channels for selected E versions with Hikvision cameras
• Motion Detection 2.0 by Camera: All channels
• Perimeter Protection by Device: Up to 4 channels, 2MP, H.264/H.265 video analysis for human and vehicle recognition; up to 12 rules in total
• Perimeter Protection by Camera: All channels
• ANPR by Camera: All channels
• ANPR Supported Regions: Includes Egypt, UAE, Saudi Arabia, Kuwait, Qatar, Oman, Jordan, Bahrain, and other listed countries
• Vehicle Attributes: Vehicle brand, vehicle color, vehicle type
• Plate Attributes: Plate number, license plate color, license plate type
• IP Video Input: Up to 32 channels depending on model version
• Supported Camera Resolution: Up to 12MP; 32MP and 24MP supported on selected channels/modes
• Incoming Bandwidth: 160Mbps for standard versions; up to 256Mbps for selected E versions
• Outgoing Bandwidth: 256Mbps
• HDMI 1 Output: 4K 3840 × 2160 @ 60Hz, 4K 3840 × 2160 @ 30Hz, 2K 2560 × 1440 @ 60Hz, 1920 × 1080 @ 60Hz
• HDMI 2 Output: 1920 × 1080 @ 60Hz
• VGA Output: 1 channel, 1920 × 1080 @ 60Hz
• Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output: 1-channel BNC, PAL 704 × 576 / NTSC 704 × 480
• Audio Output: 1-channel RCA
• Two-Way Audio: 1-channel RCA
• Recording Resolution: 32MP / 24MP / 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF depending on model version
• Synchronous Playback: 16 channels
• Live View Window Division: 1 / 2 / 4 / 6 / 8 / 9 / 16, with selected versions supporting 25 / 32 / 36
• Aux Port Window Division: 1 / 2 / 4 / 6 / 8 / 9 / 16
• Decoding Capability: 16-ch @ 1080p for standard versions; up to 20-ch @ 1080p with AI by NVR enabled and 32-ch @ 1080p with AI by NVR disabled for selected E versions
• Dual-Stream Recording: Supported
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, MP2L2, AAC, PCM depending on model version
• Network Interface: 2 × RJ45 10/100/1000Mbps self-adaptive Ethernet interfaces
• Remote Connection: 128
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF Version 2.2, OTAP
• API: ONVIF Profile S/G, SDK, ISAPI
• Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or above
• Camera Access Protocol: ONVIF Version 2.5, RTSP
• Serial Interface: RS-485 half-duplex, RS-232, Keyboard; selected versions include 2 × RS-485 and 1 × RS-232
• SATA Interface: 4 SATA interfaces, hot-plug supported on selected versions
• HDD Capacity: Up to 16TB per disk for DS-7732NXI-I4/S, up to 10TB per disk for selected C/standard regional versions, up to 14TB per disk for selected E versions
• Maximum Total HDD Capacity: Up to 64TB using 4 × 16TB HDDs
• eSATA Interface: 1 eSATA interface
• Alarm In/Out: 16 inputs / 4 outputs; selected versions support 16 inputs / 9 outputs
• USB Interface: Front panel: 2 × USB 2.0 / Rear panel: 1 × USB 3.0
• Ctrl 12V: Supported on selected E versions
• DC 12V: 12VDC, 1A power output on selected versions
• GUI Languages: Includes English, Arabic, French, German, Italian, Spanish, Portuguese, Turkish, Japanese, Korean, Thai, Ukrainian, Hebrew, and other languages
• Power Supply: 100 to 240VAC, 50 to 60Hz
• Power Consumption: ≤30W without HDD
• Working Temperature: -10°C to 55°C
• Working Humidity: 10% to 90%
• Chassis: 19-inch rack-mounted 1.5U chassis
• Dimensions: 440 × 389 × 75mm for DS-7732NXI-I4/S; other versions vary up to 445 × 400 × 75mm
• Weight: ≤5.6kg without HDD for DS-7732NXI-I4/S; selected E versions ≤3.6kg without HDD
• Certifications: CE, CB, REACH, WEEE, UKCA, LOA
• Physical Interfaces: eSATA, LAN 1 and LAN 2, audio input/output, HDMI 1 and HDMI 2, VGA and RS-232, USB 3.0 and Video Out, Alarm In/Out, RS-485, Ctrl 12V, DC 12V, GND, AC power supply, power switch
Applications:
• Smart 32-camera IP CCTV systems
• Commercial and industrial surveillance projects
• Factories and warehouses
• Schools, universities, and administrative buildings
• Hospitals and medical facilities
• Retail chains and large showrooms
• Residential compounds and large villas
• Projects requiring facial recognition and face picture search
• Projects requiring ANPR and vehicle attribute recognition
• Sites requiring POS overlay and POS-triggered recording
• Control rooms requiring 4K HDMI display output
• Projects requiring long recording duration with 4 HDD bays
• Rack-mounted CCTV installations
• Projects using separate PoE switches or external camera power
Connect Gates Recommendation:
• Recommended for professional Hikvision smart IP surveillance projects that require AcuSense analytics, facial recognition, ANPR, POS functions, dual Gigabit LAN, and 4 SATA storage expansion.
• Suitable when the project needs advanced event filtering, smart search, smart playback, face database functions, and up to 64TB storage depending on HDD selection.
• Compared with DS-7732NXI-K4, this I4/S model offers stronger advanced analytics options such as POS function, IP speaker support, expanded face comparison options, ANPR attributes, and improved decoding options in selected versions.
• Since this model does not include built-in PoE ports, cameras should be powered using a separate PoE switch or external power source.
