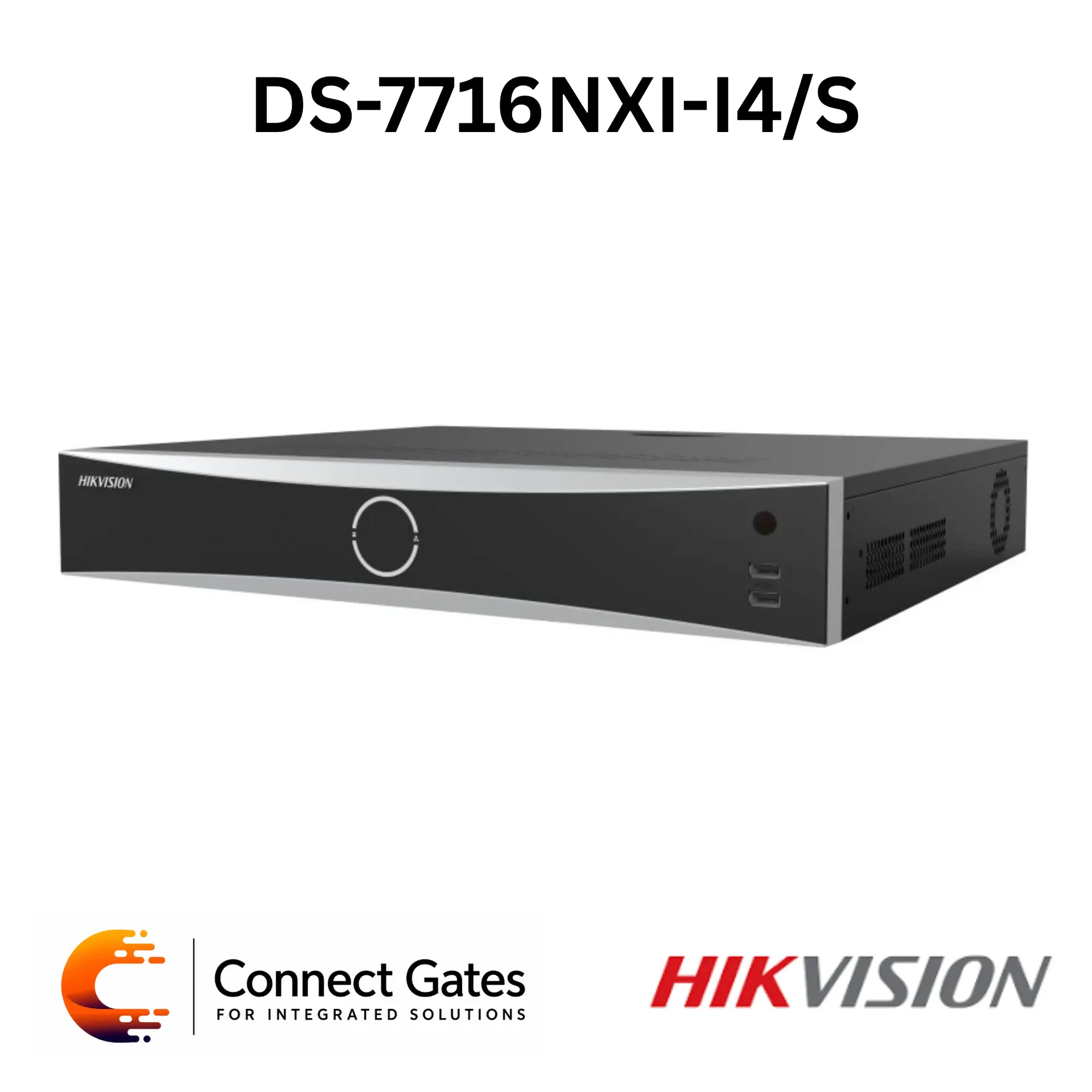

Hikvision DS-7716NXI-I4/S – 16-Channel AcuSense 4K NVR with AI Analytics, 4 SATA Bays, Dual LAN & H.265+
Overview:
The Hikvision DS-7716NXI-I4/S is a professional 16-channel 1.5U AcuSense 4K NVR designed for smart IP CCTV systems requiring AI analytics, high storage capacity, dual LAN connection and 4K display output. It supports 16 IP camera inputs, H.265+ compression, deep learning analytics, AcuSearch, perimeter protection, facial recognition, Motion Detection 2.0, 16-channel synchronous playback, 4 SATA HDD bays, 1 eSATA interface, 2 Gigabit LAN interfaces, and up to 8 IP speakers.
Key Features:
• 16-channel AcuSense 4K NVR
• Supports H.265+, H.265, H.264+ and H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Supports AI by NVR: facial recognition, perimeter protection, Motion Detection 2.0 and AcuSearch
• Supports AI by Camera: facial recognition, perimeter protection, ANPR, people counting and VCA
• Supports AcuSearch by camera up to 172,800 targets/day
• Up to 4-channel perimeter protection
• Up to 4-channel facial recognition for video stream
• Up to 8-channel facial recognition for face picture
• Supports face picture comparison, human face capture and face picture search
• Supports up to 16 face picture libraries
• Supports up to 10,000 face pictures in total
• Supports Motion Detection 2.0
• Supports ANPR by camera
• Supports vehicle and plate attributes
• Supports up to 16 IP camera inputs
• Supports cameras up to 12MP resolution
• Supports 32MP / 24MP on channel 1 when Ultra HD mode is enabled
• 160 Mbps incoming bandwidth
• 256 Mbps outgoing bandwidth
• HDMI 1 output up to 4K 3840 × 2160 at 60Hz
• Supports HDMI1/VGA simultaneous output and HDMI2/VGA independent output
• Supports 16-channel synchronous playback
• Advanced decoding up to 2-ch 32MP / 4-ch 16MP / 16-ch 4MP with AI disabled
• Supports smart search and smart playback
• Supports POS overlay on live view and playback
• Supports 4 SATA interfaces with hot-plug support
• Supports up to 16 TB per HDD
• Supports 1 eSATA interface
• Supports 2 Gigabit LAN interfaces
• Supports 16 alarm inputs / 4 alarm outputs
• Rack-mounted 1.5U chassis
Technical Specifications:
• Model: DS-7716NXI-I4/S
• Product Type: 16-ch 1.5U AcuSense 4K NVR
• IP Video Input: 16 channels
• Camera Resolution: Up to 12MP, with 32MP / 24MP on channel 1 in Ultra HD mode
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 256 Mbps
• Video Compression: H.265+, H.265, H.264+, H.264, MPEG4
• Recording Resolution: 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback: 16 channels
• Decoding Capability AI Disabled: 2-ch@32MP / 4-ch@16MP / 16-ch@4MP
• Decoding Capability AI Enabled: 8-ch@5MP / 16-ch@3MP
• Live View Window Division: 1 / 2 / 4 / 6 / 8 / 9 / 16
• Dual-Stream Recording: Supported
• Stream Type: Video, Video & Audio
• HDMI 1 Output: Up to 4K 3840 × 2160 at 60Hz
• HDMI 2 Output: Up to 1920 × 1080 at 60Hz
• VGA Output: Up to 1920 × 1080 at 60Hz
• Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output: 1-channel BNC
• Audio Output: 1-channel RCA
• Two-Way Audio: 1-channel RCA
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, MP2L2
• AI by NVR: Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch
• AI by Camera: Facial recognition, perimeter protection, video structuralization, throwing objects from building, Motion Detection 2.0, ANPR, people counting, VCA
• AcuSearch: All channels by camera, up to 172,800 targets/day
• Perimeter Protection by NVR: 4-ch, 2MP human and vehicle recognition
• Perimeter Rules: Up to 12 rules in total
• Facial Recognition: Face picture comparison, human face capture, face picture search
• Face Attributes: Glasses, mask, facial expression, body temperature
• Face Picture Library: Up to 16 libraries, up to 10,000 face pictures total
• Face Picture Comparison: 4-channel face picture comparison alarm
• Facial Detection Performance: 1-ch human face capture, up to 4MP
• Motion Detection 2.0 by NVR: 16 channels
• ANPR by Camera: All channels
• Network Interface: 2 × RJ45 10/100/1000 Mbps Ethernet ports
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP
• Camera Access Protocol: ONVIF, RTSP
• API: ONVIF Profile S/G, SDK, ISAPI
• Serial Interface: RS-485 half-duplex, RS-232, keyboard
• SATA: 4 SATA interfaces with hot-plug support
• eSATA: 1 eSATA interface
• HDD Capacity: Up to 16 TB per disk
• Alarm In/Out: 16 inputs / 4 outputs
• USB Interface: 2 × USB 2.0 front, 1 × USB 3.0 rear
• Ctrl 12V: 12V DC, 0.5A controllable output
• DC 12V Output: 12V DC, 1A
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Power Consumption: ≤ 30 W without HDD
• Working Temperature: -10°C to 55°C
• Working Humidity: 10% to 90%
• Chassis: 19-inch rack-mounted 1.5U chassis
• Dimensions: 445 × 400 × 75 mm
• Weight: ≤ 5.6 kg without HDD
Applications:
• Medium and large CCTV systems
• Factories and warehouses
• Commercial buildings
• Hotels and compounds
• Schools and universities
• Retail branches
• Administrative buildings
• Projects requiring 16 IP camera recording
• Systems requiring AcuSense smart detection
• Installations requiring facial recognition and perimeter protection
• Projects requiring larger storage capacity with 4 HDD bays
• Systems requiring dual LAN connection
• Systems requiring 4K display output and smart playback
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-7716NXI-I4/S for projects that need a smart 16-channel AcuSense NVR with AI analytics, AcuSearch, 4 SATA HDD bays, dual Gigabit LAN, 4K output, and H.265+ compression. It is a strong choice for factories, warehouses, commercial buildings, schools and medium-to-large CCTV systems where smart event filtering, larger storage capacity and stable network performance are required.
