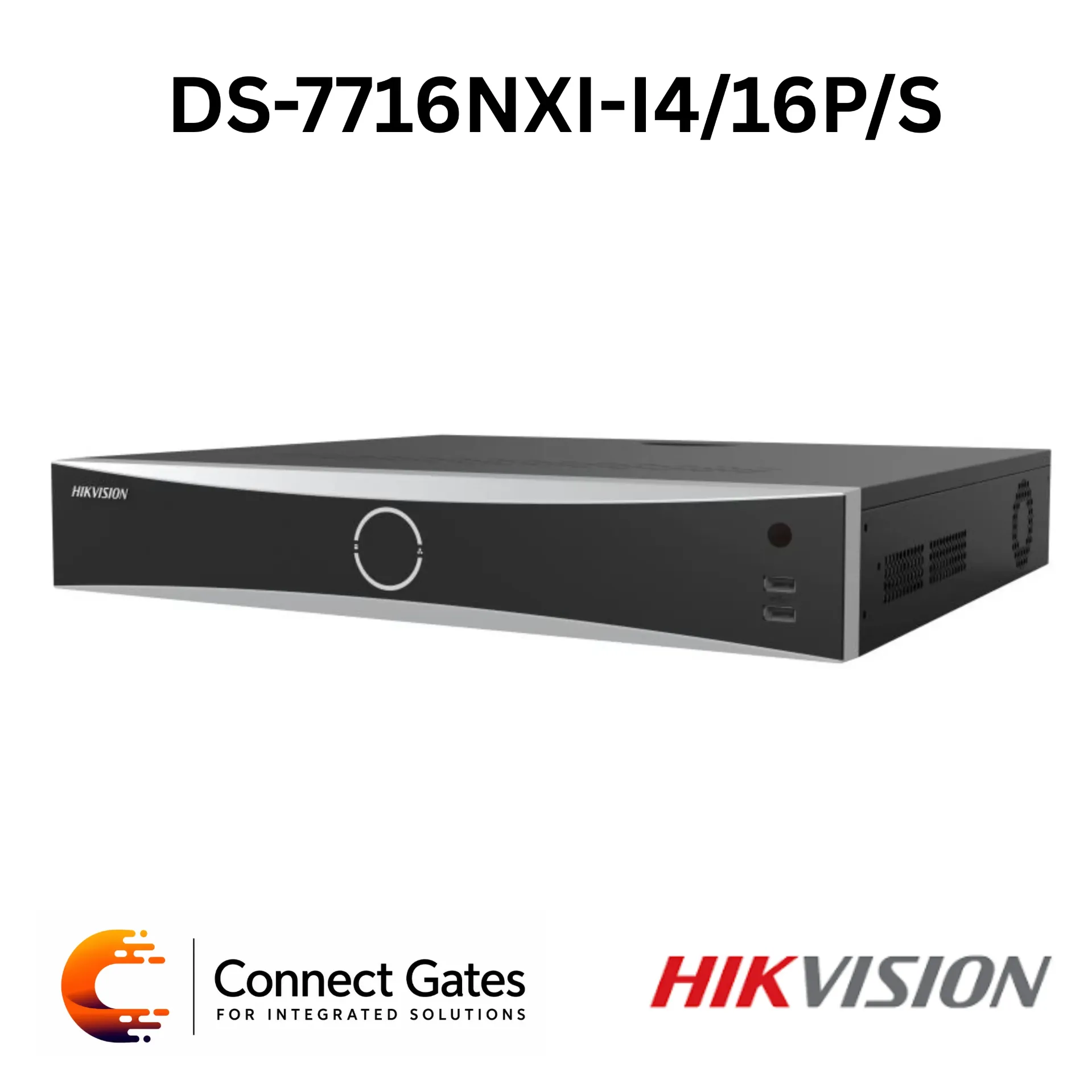

Hikvision DS-7716NXI-I4/16P/S – 16-Channel AcuSense 4K NVR with 16 PoE Ports, AI Analytics, 4 SATA Bays & H.265+
Overview:
The Hikvision DS-7716NXI-I4/16P/S is a professional 16-channel 1.5U AcuSense 4K NVR with built-in 16 PoE ports, designed for smart IP CCTV systems requiring direct PoE camera connection, AI analytics, high storage capacity and 4K display output. It supports 16 IP camera inputs, H.265+ compression, deep learning analytics, perimeter protection, facial recognition, Motion Detection 2.0, 16-channel synchronous playback, 4 SATA HDD bays, 1 eSATA interface, and up to 8 IP speakers.
Key Features:
• 16-channel AcuSense 4K NVR
• 16 built-in PoE ports for direct IP camera connection
• Supports H.265+, H.265, H.264+ and H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Supports AI by NVR: facial recognition, perimeter protection and Motion Detection 2.0
• Supports AI by Camera: facial recognition, perimeter protection, ANPR, people counting and VCA
• Up to 4-channel perimeter protection
• Up to 4-channel facial recognition for video stream
• Up to 8-channel facial recognition for face picture
• Supports face picture comparison, human face capture and face picture search
• Supports up to 16 face picture libraries
• Supports Motion Detection 2.0
• Supports ANPR by camera
• Supports vehicle and plate attributes
• Supports up to 16 IP camera inputs
• Supports cameras up to 12MP resolution
• 160 Mbps incoming bandwidth
• 256 Mbps outgoing bandwidth
• HDMI output up to 4K resolution
• Supports HDMI1/VGA simultaneous output and HDMI2/VGA independent output
• Supports up to 32-channel 1080p decoding when AI by NVR is disabled
• Supports 16-channel synchronous playback
• Supports smart search and smart playback
• Supports POS overlay on live view and playback
• Supports 4 SATA interfaces with hot-plug support
• Supports up to 16 TB per HDD
• Supports 1 eSATA interface
• Supports Hik-Connect and DDNS
• Supports 16 alarm inputs / 4 alarm outputs
• Rack-mounted 1.5U chassis
Technical Specifications:
• Model: DS-7716NXI-I4/16P/S
• Product Type: 16-ch 1.5U 16 PoE AcuSense 4K NVR
• IP Video Input: 16 channels
• Camera Resolution: Up to 12MP
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 256 Mbps
• Video Compression: H.265+, H.265, H.264+, H.264, MPEG4
• Recording Resolution: 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback: 16 channels
• Decoding Capability: 16-ch @ 1080p
• Enhanced Decoding Version: Up to 20-ch@1080p with AI by NVR enabled / 32-ch@1080p with AI by NVR disabled
• Live View Window Division: 1 / 2 / 4 / 6 / 8 / 9 / 16
• Dual-Stream Recording: Supported
• Stream Type: Video, Video & Audio
• HDMI 1 Output: Up to 4K 3840 × 2160 at 60Hz
• HDMI 2 Output: Up to 1920 × 1080 at 60Hz
• VGA Output: Up to 1920 × 1080 at 60Hz
• Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output: 1-channel BNC
• Audio Output: 1-channel RCA
• Two-Way Audio: 1-channel RCA
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, MP2L2
• AI by NVR: Facial recognition, perimeter protection, Motion Detection 2.0
• AI by Camera: Facial recognition, perimeter protection, video structuralization, ANPR, people counting, VCA
• Perimeter Protection by NVR: Up to 4-ch, 2MP human and vehicle recognition
• Perimeter Rules: Up to 12 rules in total
• Facial Recognition: Face picture comparison, human face capture, face picture search
• Face Picture Library: Up to 16 libraries, up to 10,000 face pictures total
• Face Picture Comparison: 4-channel face picture comparison alarm
• Facial Detection Performance: 1-ch human face capture, up to 4MP
• Motion Detection 2.0 by NVR: 16 channels
• ANPR by Camera: All channels
• Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet port
• PoE Interface: 16 × RJ45 10/100 Mbps PoE ports
• PoE Power Budget: ≤ 200 W
• PoE Standard: IEEE 802.3af/at
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP
• Camera Access Protocol: ONVIF, RTSP
• API: ONVIF Profile S/G, SDK, ISAPI
• Serial Interface: RS-485 half-duplex, RS-232, keyboard
• SATA: 4 SATA interfaces with hot-plug support
• eSATA: 1 eSATA interface
• HDD Capacity: Up to 16 TB per disk
• Alarm In/Out: 16 inputs / 4 outputs
• USB Interface: 2 × USB 2.0 front, 1 × USB 3.0 rear
• Ctrl 12V: 12V DC, 0.5A controllable output
• DC 12V Output: 12V DC, 1A
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Total Power: ≤ 360 W
• Power Consumption: ≤ 30 W without HDD
• Working Temperature: -10°C to 55°C
• Working Humidity: 10% to 90%
• Chassis: 19-inch rack-mounted 1.5U chassis
• Dimensions: 445 × 400 × 75 mm
• Weight: ≤ 7 kg without HDD
Applications:
• Medium and large CCTV systems
• Factories and warehouses
• Commercial buildings
• Hotels and compounds
• Schools and universities
• Retail branches
• Administrative buildings
• Projects requiring 16 IP camera recording
• Projects requiring direct PoE camera connection
• Systems requiring AcuSense smart detection
• Installations requiring facial recognition and perimeter protection
• Projects requiring larger storage capacity with 4 HDD bays
• Systems requiring 4K display output and smart playback
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-7716NXI-I4/16P/S for projects that need a smart 16-channel AcuSense NVR with 16 PoE ports, AI analytics, 4 SATA HDD bays, 4K output, and H.265+ compression. It is a strong choice for factories, warehouses, commercial buildings, schools and medium-to-large CCTV systems where direct PoE connection, smart event filtering and larger storage capacity are required.
