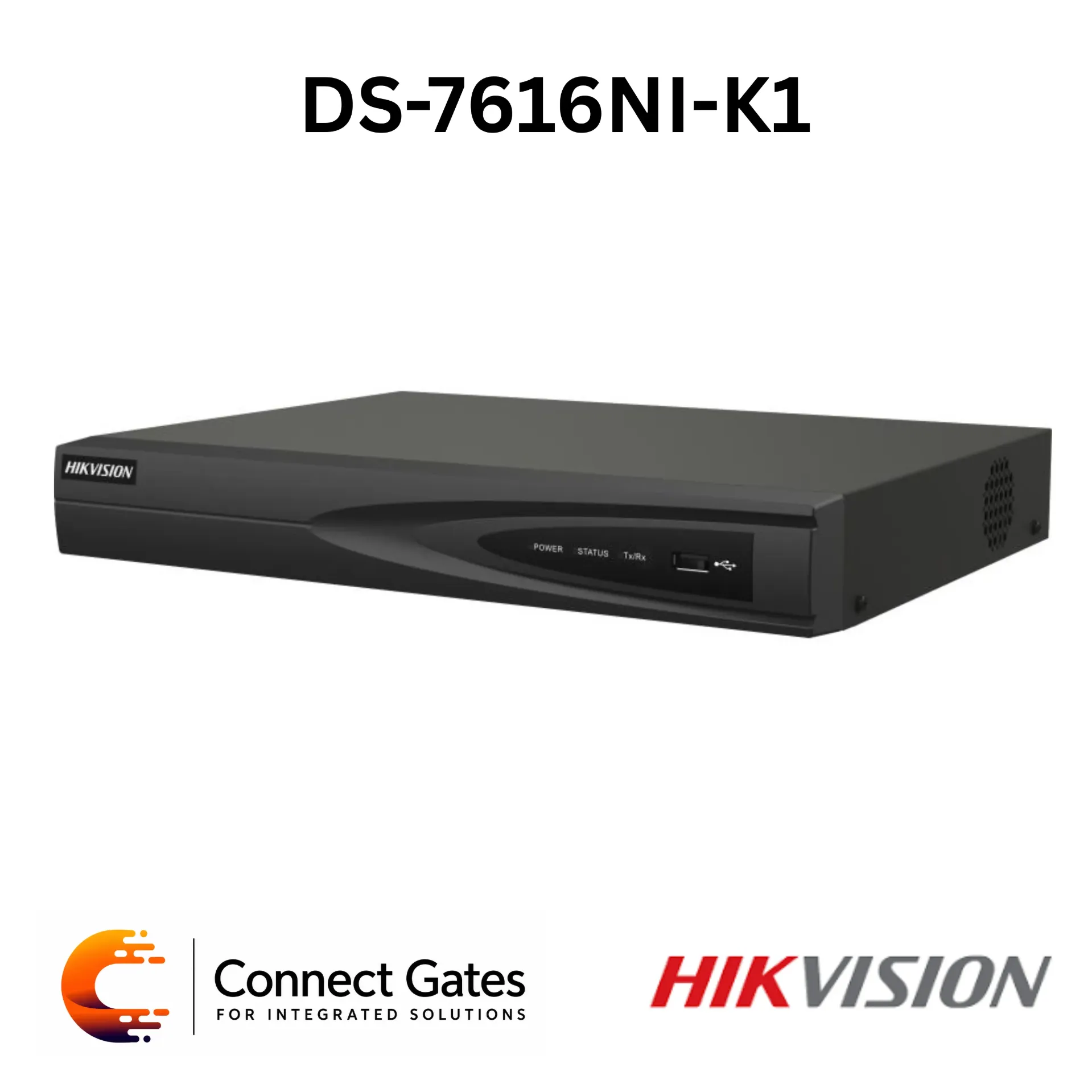

Hikvision DS-7616NI-K1 – 16-Channel K Series 4K NVR with 160 Mbps Bandwidth, 1 SATA Bay, Motion Detection 2.0 & H.265+
Overview:
The Hikvision DS-7616NI-K1 is a compact 16-channel K Series NVR designed for small and medium IP CCTV systems that require reliable recording, 4K display output and efficient storage. It supports up to 16 IP camera inputs, 160 Mbps incoming bandwidth, 80 Mbps outgoing bandwidth, H.265+ compression, 4K HDMI output, HDMI and VGA simultaneous output, 16-channel synchronous playback, 1 SATA HDD bay, and Motion Detection 2.0 with human/vehicle analysis for up to 4 channels.
Key Features:
• 16-channel IP camera input
• Supports H.265+, H.265, H.264+ and H.264 video formats
• 160 Mbps incoming bandwidth
• 80 Mbps outgoing bandwidth
• 4K HDMI video output
• HDMI and VGA simultaneous output
• Supports Motion Detection 2.0
• 4-channel human/vehicle analysis
• Supports multiple VCA events
• Supports configurable smart camera functions such as motion detection, line crossing and intrusion detection
• H.265+ compression helps reduce storage space by up to 75%
• Supports smart search and smart playback
• Supports up to 16-channel synchronous playback
• Decoding up to 1-ch 8MP / 3-ch 4MP / 6-ch 1080p
• 1 SATA interface for HDD installation
• Supports up to 8 TB HDD capacity
• 1 Gigabit LAN interface
• Supports Hik-Connect for easy remote management
• Optional 4 alarm inputs / 1 alarm output on /ALARM model
• Compact design suitable for small and medium installations
Technical Specifications:
• Model: DS-7616NI-K1
• Product Type: 16-Channel K Series NVR
• IP Video Input: 16 channels
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 80 Mbps
• Video Compression: H.265+, H.265, H.264+, H.264
• Recording Resolution: 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback: 16 channels
• Decoding Capability: 1-ch@8MP / 3-ch@4MP / 6-ch@1080p
• Stream Type: Video, Video & Audio
• HDMI Output: Up to 4K 4096 × 2160 at 30Hz / 3840 × 2160 at 30Hz
• VGA Output: Up to 1920 × 1080 at 60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Audio Output: 1-channel RCA
• Two-Way Audio: 1-channel RCA
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726
• Motion Detection 2.0: 4-channel human/vehicle analysis
• Remote Connection: 32
• Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet port
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
• SATA: 1 SATA interface
• HDD Capacity: Up to 8 TB per disk
• USB Interface: 2 × USB 2.0
• Alarm In/Out: N/A, optional 4 inputs / 1 output for /ALARM model
• Power Supply: 12V DC, 1.5A
• Power Consumption: ≤ 10 W without HDD
• Working Temperature: -10°C to 55°C
• Working Humidity: 10% to 90%
• Dimensions: 320 × 240 × 48 mm
• Weight: ≤ 1 kg without HDD
Applications:
• Small and medium CCTV systems
• Offices and administrative buildings
• Shops and retail branches
• Clinics and schools
• Villas and residential buildings
• Small warehouses
• Restaurants and cafés
• Projects requiring 16 IP camera recording
• Installations requiring 4K display output
• Cost-effective IP surveillance systems
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-7616NI-K1 for small and medium IP CCTV projects that need a reliable 16-channel NVR with 160 Mbps bandwidth, 4K HDMI output, H.265+ compression, and Motion Detection 2.0. It is suitable for offices, shops, villas, clinics, schools and small warehouses where stable recording and cost-effective performance are required.
