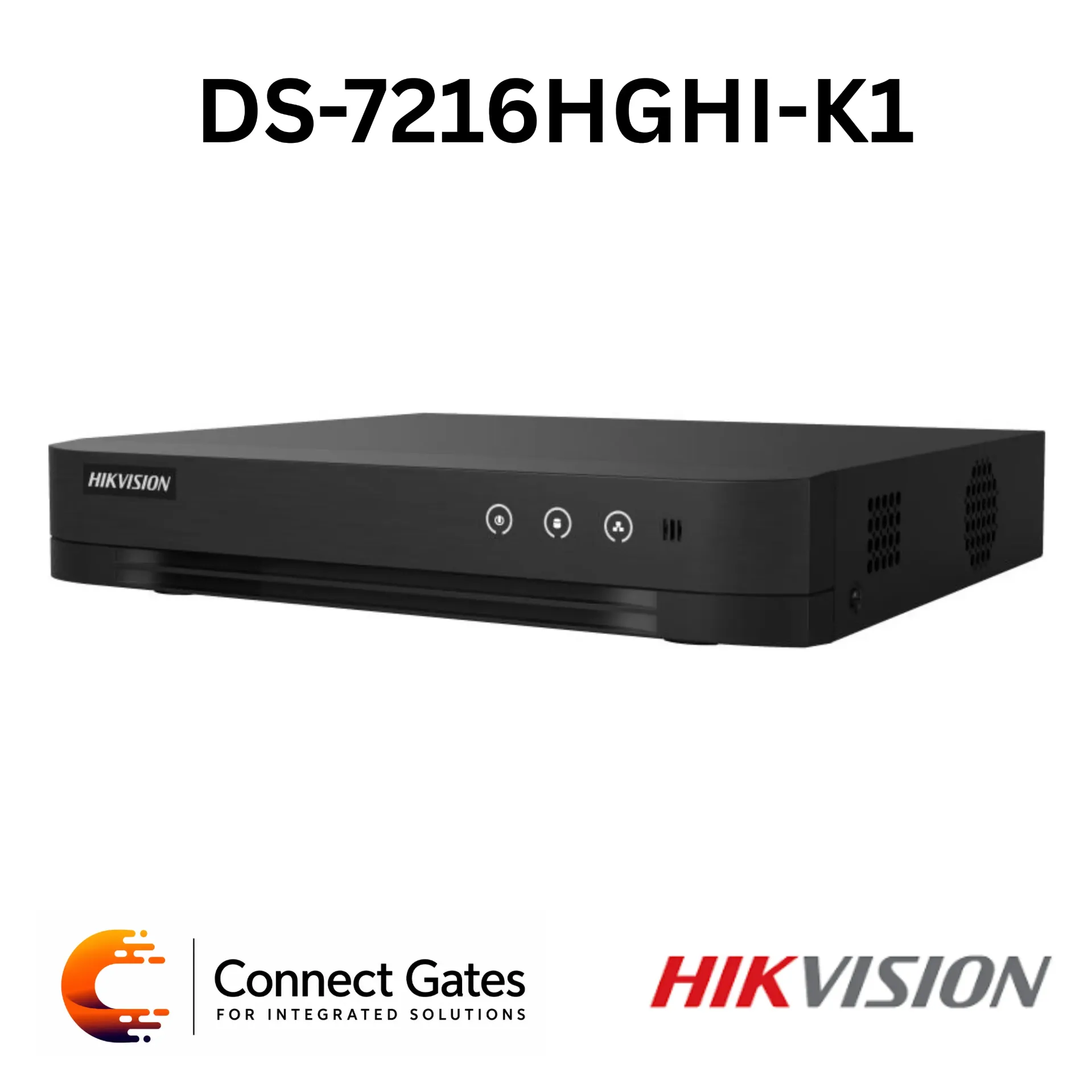

Hikvision DS-7216HGHI-K1 – 16-Channel Turbo HD DVR with 1080p Lite Recording, Motion Detection 2.0 & 1 SATA HDD Bay
Overview:
• The Hikvision DS-7216HGHI-K1 is a 16-channel Turbo HD DVR designed for medium CCTV surveillance systems.
• It supports HDTVI, AHD, CVI, CVBS, and IP video input, making it suitable for analog CCTV systems and hybrid upgrade projects.
• The DVR supports 16 analog BNC channels and up to 18 IP camera inputs with resolution up to 5MP.
• It uses H.265 Pro+ video compression to improve encoding efficiency and reduce storage costs.
• The device supports 1080p Lite recording on all channels, Motion Detection 2.0 with human and vehicle classification, smart search, and audio via coaxial cable.
• With 1 SATA HDD bay up to 10TB, HDMI/VGA output, Hik-Connect support, and 16-channel synchronous playback, it is a reliable DVR solution for medium CCTV installations.
Key Features:
• 16-Channel DVR: Supports 16 analog video inputs through BNC interface.
• 5-in-1 Hybrid Support: Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras.
• IP Camera Expansion: Supports up to 18 IP camera inputs.
• Up to 5MP IP Camera Support: Allows IP camera input resolution up to 5MP.
• 1080p Lite Recording: Supports 1080p Lite recording on all channels.
• Advanced Compression: Supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264.
• Motion Detection 2.0: Deep learning-based human and vehicle classification on all analog channels.
• Smart Search: Supports quick search by object or event type for efficient playback.
• Audio via Coaxial Cable: Supports up to 16-channel audio through coaxial cable.
• Long-Distance HDTVI Signal: Supports up to 1200 m transmission for 720p HDTVI signal.
• Synchronous Playback: Supports 16-channel synchronous playback.
• Remote Access: Supports Hik-Connect and DDNS for easy network management.
• Reliable Storage: Supports 1 SATA HDD up to 10TB.
Technical Specifications:
• Brand: Hikvision
• Model: DS-7216HGHI-K1
• Product Type: Turbo HD DVR / XVR
• Analog Video Inputs: 16 × BNC channels
• Video Format: HDTVI / AHD / CVI / CVBS / IP
• IP Video Input: 2 channels, up to 18 channels
• IP Camera Resolution: Up to 5MP
• Supported IP Compression: H.265+ / H.265 / H.264+ / H.264
• Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
• Encoding Resolution: 1080p Lite / 720p Lite / 720p / WD1 / 4CIF / VGA / CIF
• Encoding Capability: Up to 1080p Lite at 15 fps
• HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Supported
• HDMI Output: 1 channel, up to 1920 × 1080 / 60Hz
• VGA Output: 1 channel, up to 1920 × 1080 / 60Hz
• Video Output Mode: HDMI / VGA simultaneous output
• Audio Input: 1 × RCA, plus 16-channel audio via coaxial cable
• Audio Output: 1 × RCA
• Two-Way Audio: Supported by reusing the first audio input
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps
• Stream Type: Video, Video & Audio
• Video Bitrate: 32 Kbps to 4 Mbps
• Motion Detection 2.0: Human and vehicle classification on all analog channels
• Smart Search: Supported by object or event type
• Synchronous Playback: 16 channels
• Total Bandwidth: 96 Mbps
• Remote Connections: 128
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS
• Network Interface: 1 × RJ45 10/100 Mbps self-adaptive Ethernet interface
• Storage Interface: 1 × SATA interface
• HDD Capacity: Up to 10TB
• USB Interface: 2 × USB 2.0 rear panel
• Power Supply: 12V DC, 1.6A
• Power Consumption: ≤ 10W without HDD
• Working Temperature: -10°C to +55°C
• Working Humidity: 10% to 90%
• Dimensions: 260 × 222 × 45 mm
• Weight: ≤ 1.1 kg without HDD
Applications:
• Medium CCTV surveillance systems
• Shops and retail branches
• Offices and administrative buildings
• Villas and residential compounds
• Warehouses and storage areas
• Schools, clinics, and small facilities
• Upgrade projects from analog DVR systems to hybrid CCTV systems
• Projects requiring 16 analog channels with possible IP camera expansion
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-7216HGHI-K1 for medium CCTV projects that need a 16-channel DVR with reliable recording and smart detection features.
• It is suitable for offices, warehouses, retail branches, villas, and facilities using analog cameras with possible IP expansion.
• The DVR offers good value with H.265 Pro+ compression, 1080p Lite recording, Motion Detection 2.0, human/vehicle classification, and 16-channel synchronous playback.
• For best performance, Connect Gates recommends using a surveillance-grade HDD up to 10TB according to the required recording duration.
• For projects requiring higher recording resolution or long-term scalability, Connect Gates recommends choosing a higher DVR series or an NVR solution from the beginning.
