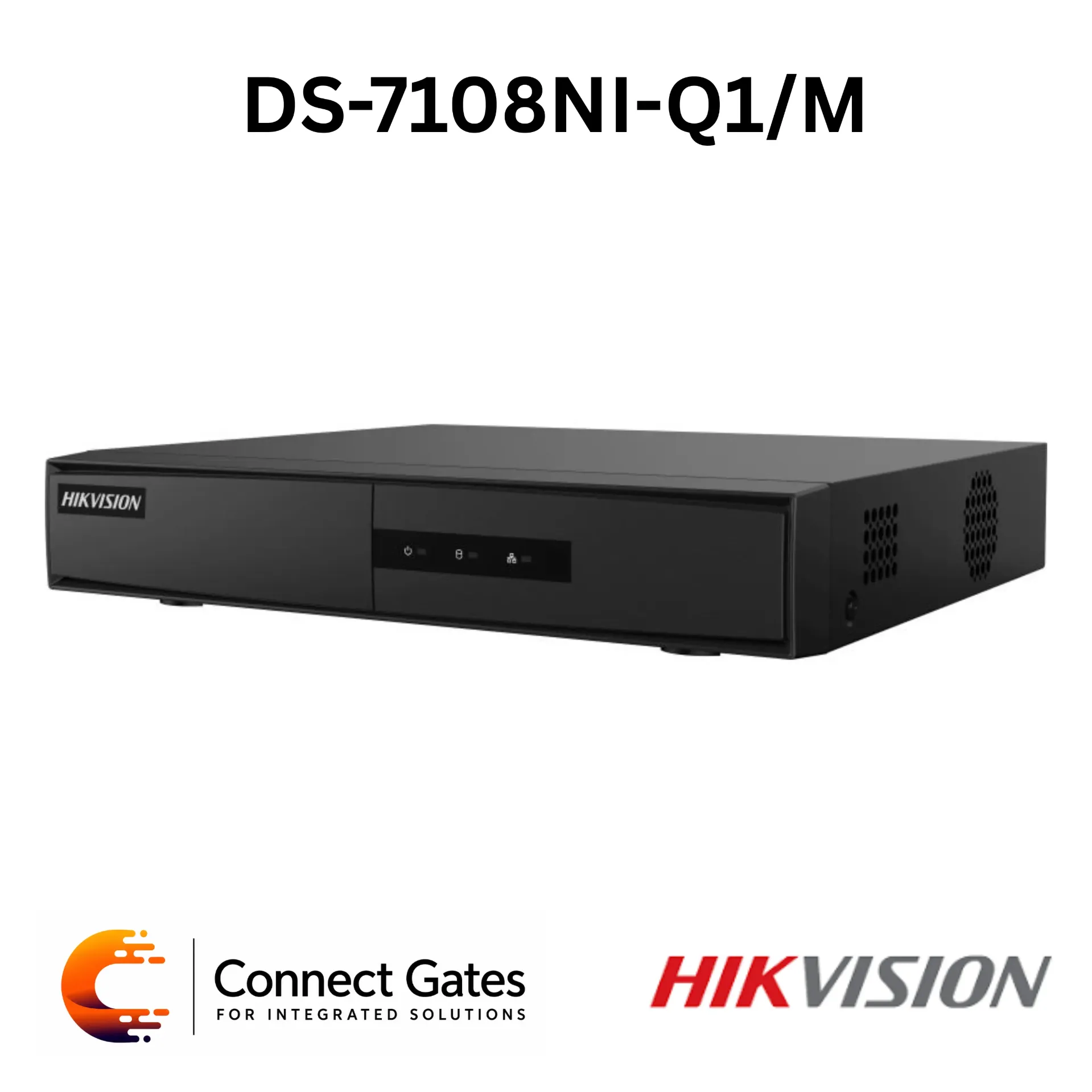

Hikvision DS-7108NI-Q1/M – 8-Channel Value 7 Series NVR with 6MP Camera Support, 60 Mbps Bandwidth, 1 SATA & H.265+
Overview:
The Hikvision DS-7108NI-Q1/M is a compact 8-channel Value 7 Series NVR designed for small IP surveillance systems. It supports up to 8 network camera inputs, camera recording up to 6MP resolution, 60 Mbps incoming bandwidth, 60 Mbps outgoing bandwidth, H.265+ compression, HDMI and VGA simultaneous output, and 1 SATA HDD interface up to 6 TB. It also supports line crossing and intrusion detection, smart search, smart playback, and Hik-Connect for easy remote management.
Key Features:
• 8-channel IP camera input
• Supports IP cameras up to 6MP resolution
• 60 Mbps incoming bandwidth
• 60 Mbps outgoing bandwidth
• H.265+, H.265, H.264+ and H.264 video compression
• HDMI and VGA simultaneous output
• Supports up to 4-ch 1080p decoding
• Supports 4-channel synchronous playback
• Supports playback up to 2-ch 4MP or 4-ch 1080p
• Full-channel recording up to 4MP resolution
• 1 SATA HDD interface
• Supports up to 6 TB HDD capacity
• Supports line crossing detection
• Supports intrusion detection
• Supports smart search for selected video areas
• Supports smart playback to improve playback efficiency
• Automatically searches and adds network cameras after device activation
• Supports Hik-Connect for easy remote management
• 1 × RJ45 10/100 Mbps Ethernet interface
• Compact and cost-effective NVR design
Technical Specifications:
• Model: DS-7108NI-Q1/M
• Product Type: Value 7 Series NVR
• IP Video Input: 8 channels
• Camera Resolution: Up to 6MP
• Incoming Bandwidth: 60 Mbps
• Outgoing Bandwidth: 60 Mbps
• Decoding Format: H.265+, H.265, H.264+, H.264
• Recording Resolution: 6MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Decoding Capability: 4-ch@1080p / 2-ch@4MP / 1-ch@6MP
• Synchronous Playback: 4 channels
• Stream Type: Video, Video & Audio
• HDMI Output: 1 channel, up to 1920 × 1080p at 60Hz
• VGA Output: 1 channel, up to 1920 × 1080p at 60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Remote Connection: 16
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet port
• SATA: 1 SATA interface
• HDD Capacity: Up to 6 TB per disk
• Alarm In/Out: N/A
• USB Interface: 2 × USB 2.0 rear
• Power Supply: 12V DC, 1.5A
• Power Consumption: ≤ 10 W
• Working Temperature: -10°C to 55°C
• Working Humidity: 10% to 90%
• Dimensions: 265 × 223 × 48 mm
• Weight: ≤ 1 kg
Applications:
• Small CCTV systems
• Shops and retail stores
• Offices and clinics
• Villas and residential units
• Small warehouses
• Small restaurants and cafés
• Building entrances
• 8-camera IP surveillance projects
• Budget-friendly IP camera installations
• Projects requiring simple remote viewing via Hik-Connect
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-7108NI-Q1/M for small IP CCTV projects that need a reliable 8-channel NVR with H.265+ compression, 6MP camera support, Hik-Connect remote access, and simple storage expansion. It is a suitable choice for shops, offices, villas, small warehouses and basic surveillance systems.
