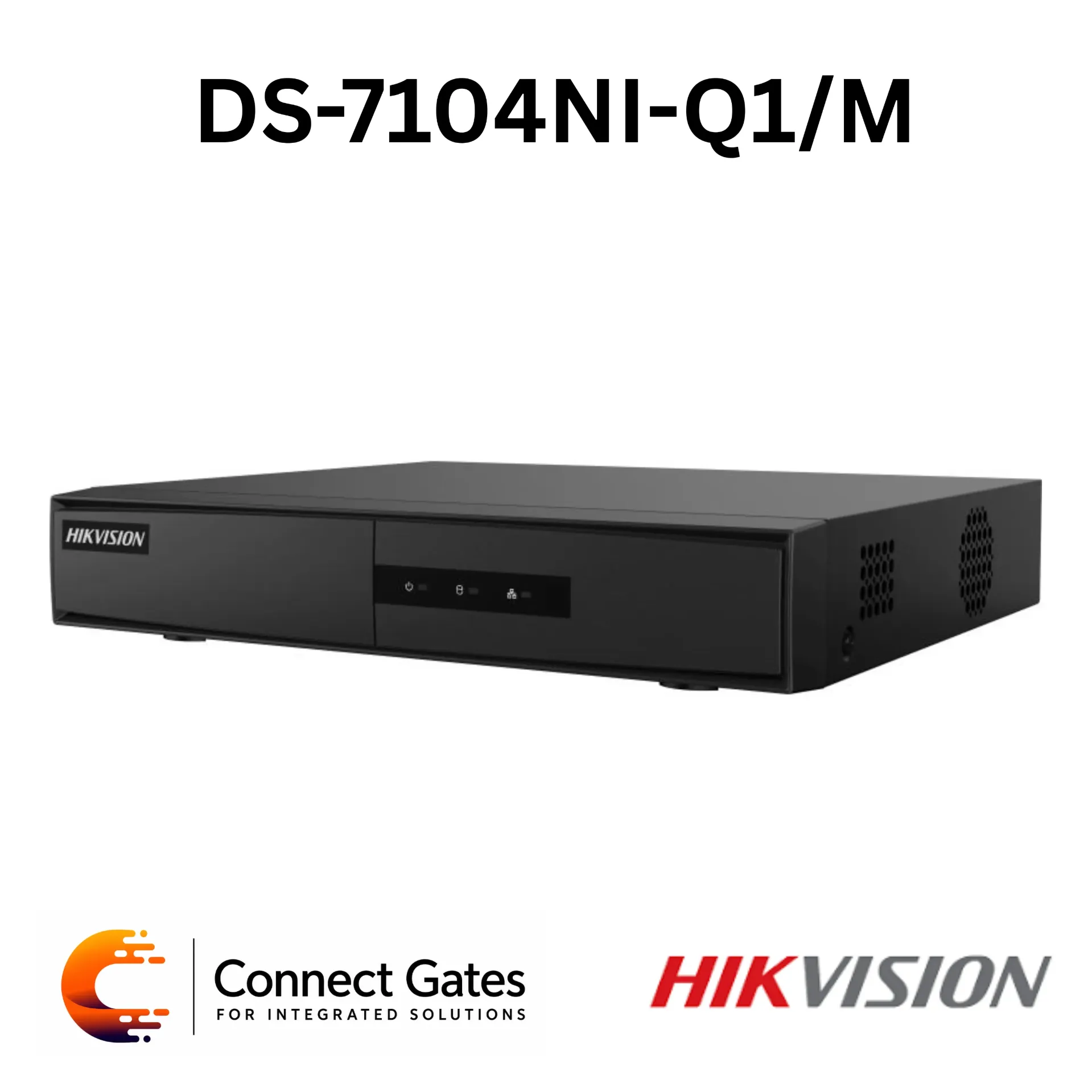

Hikvision DS-7104NI-Q1/M – 4-Channel Value Series NVR with H.265+, 40Mbps Incoming Bandwidth & 4MP Recording
Overview:
• The Hikvision DS-7104NI-Q1/M is a compact 4-channel Value 7 Series Network Video Recorder designed for small CCTV systems using IP cameras.
• It supports up to 4 network camera inputs with incoming bandwidth up to 40Mbps and outgoing bandwidth up to 60Mbps.
• The NVR supports H.265+, H.265, H.264+, and H.264 video compression to reduce storage usage and improve recording efficiency.
• It can record all channels at up to 4MP resolution and supports IP camera input resolution up to 6MP.
• HDMI and VGA simultaneous output allows easy connection to monitors for live view and playback.
• The device includes 1 SATA interface supporting up to 6TB HDD capacity, making it suitable for small offices, shops, homes, and light commercial surveillance systems.
Key Features:
• 4-Channel IP Camera Input: Supports up to 4 network cameras.
• Up to 6MP Camera Input: Compatible with IP cameras up to 6MP resolution.
• H.265+ Compression: Reduces storage space by up to 75%.
• Recording up to 4MP: Supports full channel recording at up to 4MP resolution.
• 40Mbps Incoming Bandwidth: Suitable for small IP surveillance systems.
• 60Mbps Outgoing Bandwidth: Provides stable video output and remote access performance.
• HDMI & VGA Output: Supports simultaneous HDMI and VGA monitor output.
• 4-Channel Playback: Supports synchronous playback for up to 4 channels.
• Smart Functions: Supports line crossing detection and intrusion detection.
• Smart Search & Playback: Helps improve playback efficiency by searching selected areas in recorded video.
• Auto Camera Search: Automatically searches and adds network cameras after activation.
• Hik-Connect Support: Enables easy network management and remote access.
• Compact Design: Small size suitable for limited installation spaces.
Technical Specifications:
• Brand: Hikvision
• Model: DS-7104NI-Q1/M
• Product Type: 4-Channel Network Video Recorder
• Series: Value 7 Series NVR
• IP Video Input: 4 channels
• Supported Camera Resolution: Up to 6MP
• Incoming Bandwidth: 40Mbps
• Outgoing Bandwidth: 60Mbps
• HDMI Output: 1 channel, up to 1920 × 1080p/60Hz
• VGA Output: 1 channel, up to 1920 × 1080p/60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Decoding Format: H.265+, H.265, H.264+, H.264
• Recording Resolution: 6MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback: 4 channels
• Decoding Capability: 4-ch @ 1080p 30fps / 2-ch @ 4MP 30fps / 1-ch @ 6MP 30fps
• Stream Type: Video, Video & Audio
• Remote Connection: 16
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
• Network Interface: 1 × RJ45 10/100Mbps self-adaptive Ethernet interface
• SATA Interface: 1 SATA interface
• HDD Capacity: Up to 6TB
• Alarm In/Out: N/A
• USB Interface: 2 × USB 2.0 rear panel
• Power Supply: 12VDC, 1.5A
• Power Consumption: ≤10W
• Working Temperature: -10°C to +55°C
• Working Humidity: 10% to 90%
• Dimensions: 265 × 223 × 48mm
• Weight: ≤1kg
• Certification: CE EN50130-4, EN 61000-3-2, EN 61000-3-3
• Available Model: DS-7104NI-Q1/M(D)
Applications:
• Small office CCTV systems
• Retail shops and stores
• Home surveillance systems
• Small warehouses
• Clinics and small businesses
• IP camera systems up to 4 channels
• Projects requiring compact and cost-effective NVR recording
Connect Gates Recommendation:
• Recommended for small IP surveillance projects that require a reliable 4-channel Hikvision NVR with efficient H.265+ compression and remote access through Hik-Connect.
• Suitable when the system requires up to 4 IP cameras with recording up to 4MP and simple HDMI/VGA local display.
• For projects requiring more cameras, higher HDD capacity, PoE ports, or larger bandwidth, a higher-channel Hikvision NVR model should be selected.
