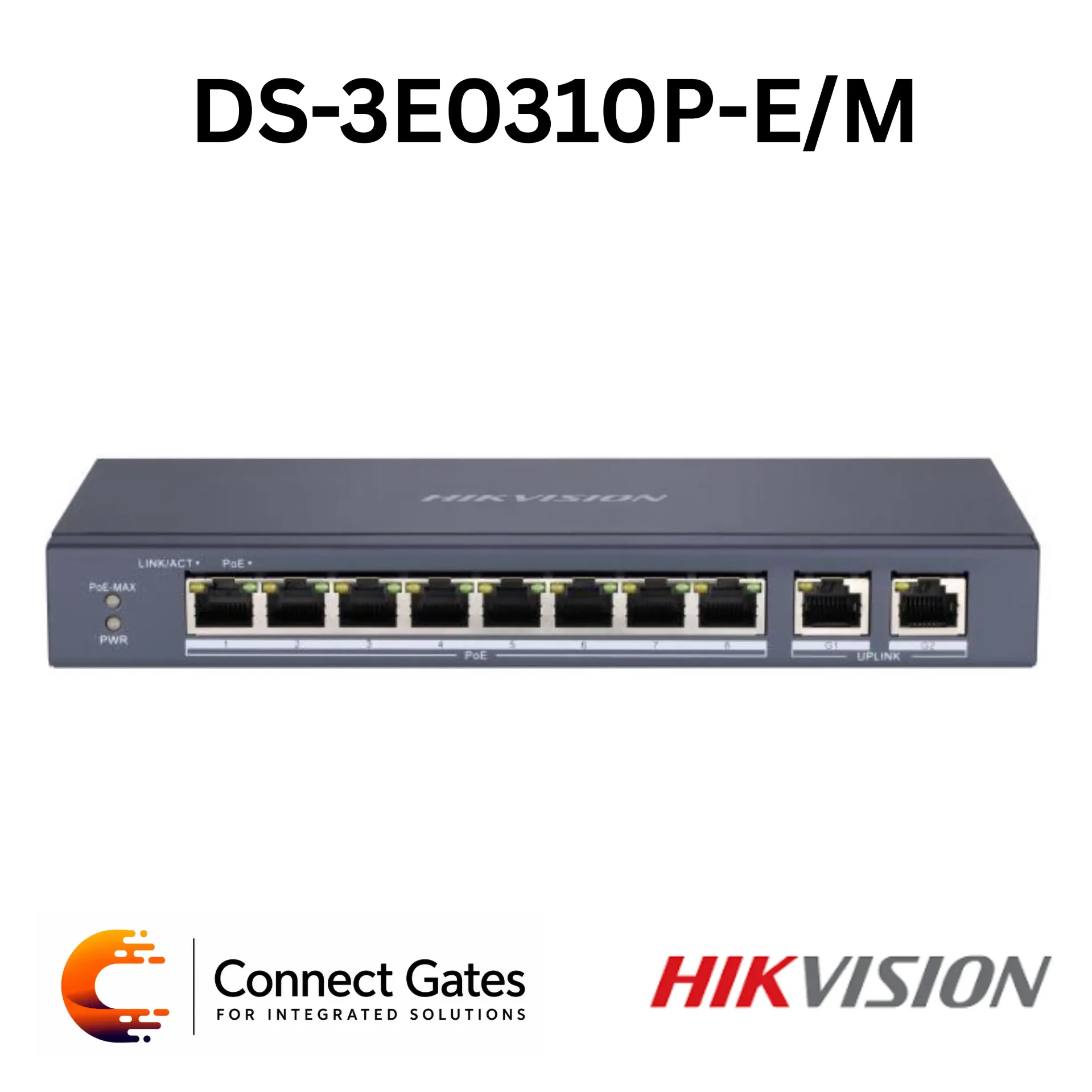

Hikvision DS-3E0310P-E/M – 8-Port Fast Ethernet Unmanaged PoE Switch with 8 PoE Ports, 2 Gigabit RJ45 Uplink Ports, 60W PoE Budget, 300m Long Range PoE & 6kV Surge Protection
Overview:
• The Hikvision DS-3E0310P-E/M is an 8-port Fast Ethernet unmanaged PoE switch designed for CCTV surveillance networks, IP camera systems, and small network installations.
• It provides 8 × 10/100Mbps PoE ports and 2 × Gigabit RJ45 ports, allowing camera connection with Gigabit uplink support.
• The switch supports IEEE 802.3af/at PoE, with a total 60W PoE power budget and up to 30W per PoE port.
• It features wire-speed forwarding, store-and-forward switching, fan-free metal housing, up to 300m long-range transmission, and 6kV surge protection for PoE ports.
Key Features:
• 8-Port Fast Ethernet Unmanaged PoE Switch
• 8 × 10/100Mbps PoE Ports
• 2 × Gigabit RJ45 Uplink Ports
• 60W Total PoE Power Budget
• Up to 30W per PoE Port
• IEEE 802.3af / IEEE 802.3at PoE Standard
• Up to 300m Long Range Transmission
• Wire-Speed Forwarding
• Store-and-Forward Switching
• 6kV Surge Protection for PoE Ports
• Solid High-Strength Metal Shell
• Reliable Fan-Free Design
• Desk-Mounted and Wall-Mounted Installation
Technical Specifications:
• Product Type: Unmanaged PoE Switch
• Brand: Hikvision
• Model: DS-3E0310P-E/M
• Ports: 8 × 10/100Mbps PoE Ports, 2 × Gigabit RJ45 Ports
• PoE Ports: Ports 1 to 8
• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Budget: 60W
• Max. Port Power: 30W
• PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab
• MAC Address Table: 8K
• Switching Capacity: 5.6Gbps
• Packet Forwarding Rate: 4.17Mpps
• Internal Cache: 4Mbits
• Long Range Mode: Ports 1 to 8 up to 300m
• Surge Protection: 6kV
• Power Supply: 48VDC, 1.35A
• Max. Power Consumption: 65W
• Idle Power Consumption: 5W
• Shell Material: Metal
• Installation Mode: Desk-Mounted / Wall-Mounted
• Dimensions: 217.6 × 103.35 × 27.8mm
• Net Weight: 0.555kg
• Gross Weight: 1.20kg
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 5% to 95%, Non-condensing
Applications:
• CCTV IP Camera Networks
• 8-Camera PoE Installations
• Shop and Villa Surveillance Systems
• Small Office Camera Networks
• Remote Camera Points
• Wall-Mounted Network Points
• Low-Current Systems
• Simple Unmanaged PoE Installations
Connect Gates Recommendation:
• Connect Gates recommends the Hikvision DS-3E0310P-E/M for small CCTV projects that need an unmanaged 8-port PoE switch with two Gigabit uplink ports.
• It is suitable for shops, villas, small offices, and isolated camera groups where up to 8 PoE devices are required with moderate power consumption.
• The 2 Gigabit RJ45 ports provide better uplink flexibility compared to single-uplink models.
• For projects requiring VLAN, PoE Watchdog, remote management, or smart monitoring, Connect Gates recommends using a Smart PoE switch model.
