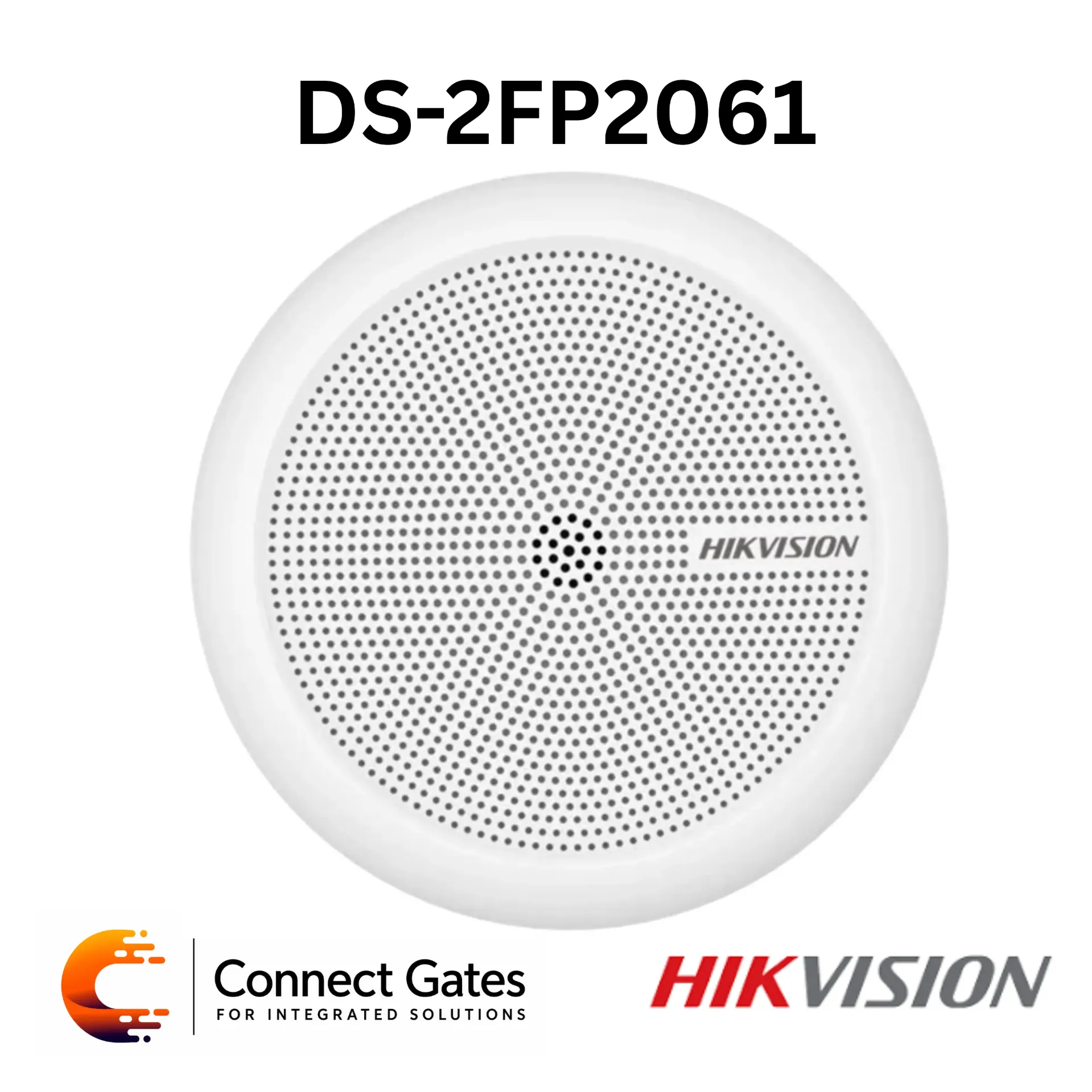

Hikvision DS-2FP2061 – Indoor Security Microphone with 360° Omnidirectional Pickup, Volume Adjustment & Multi-Mount Installation
Overview:
The Hikvision DS-2FP2061 is an Indoor Security Microphone designed for professional audio monitoring, security recording, meeting audio pickup, and close-range sound capture applications. It supports 360° omnidirectional pickup, high sensitivity, high fidelity sound, volume adjustment, and flexible ceiling, wall, or desktop mounting, making it suitable for indoor environments requiring clear and reliable audio collection.
Key Features:
• Indoor security microphone
• Supports 360° omnidirectional sound pickup
• High sensitivity and high fidelity audio
• Pickup range up to 5m
• Best pickup range around 3m
• Supports volume adjustment knob
• Built-in output driving circuit
• Can directly drive earphones and other devices
• Supports ceiling mounting
• Supports wall mounting
• Supports desktop mounting
• Clear sound pickup with high anti-disruption ability
• Built-in power protection module
• Built-in protection against lightning stroke
• Built-in polarity reverse protection
• Innovative circuit design for clear content and high fidelity sound
• Suitable for counter, cash register, meeting, negotiation, and recording applications
Technical Specifications:
• Model: DS-2FP2061
• Product Type: Indoor Security Microphone
• Microphone Type: Electret
• Polar Pattern: 360° Omnidirectional
• Pickup Range: 0m to 5m
• Frequency Response: 20Hz to 20kHz
• Sensitivity: -32dB
• SNR: 90dB
• Sampling Rate: 8kHz, 16kHz default, 32kHz
• Dynamic Range: 0dB to 90dB
• LED Indicator: Blue, working normally
• Power Supply: 12VDC
• Power Consumption: Max. 0.1W
• Material: Plastic
• Dimensions: Ø85 × 20.48 mm
• Weight: Approx. 48g
• Operating Condition: -10°C to 50°C, indoor
• Installation: Ceiling Mounting, Wall Mounting, Desktop Mounting
• Available Model: DS-2FP2061
• Packing List: Device ×1, Regulatory Compliance and Safety Information ×1
Applications:
• Security audio monitoring
• Indoor surveillance systems
• Cash registers
• Counters
• Meeting rooms
• Negotiation rooms
• Recording applications
• Reception areas
• Offices and commercial buildings
• Indoor close-range audio pickup points
Connect Gates Recommendation:
Recommended for projects that require a compact indoor security microphone with 360° omnidirectional pickup, high SNR, clear sound capture, volume adjustment, and flexible ceiling, wall, or desktop installation. Suitable for security monitoring, recording, cashier areas, meeting rooms, and indoor surveillance audio applications.
