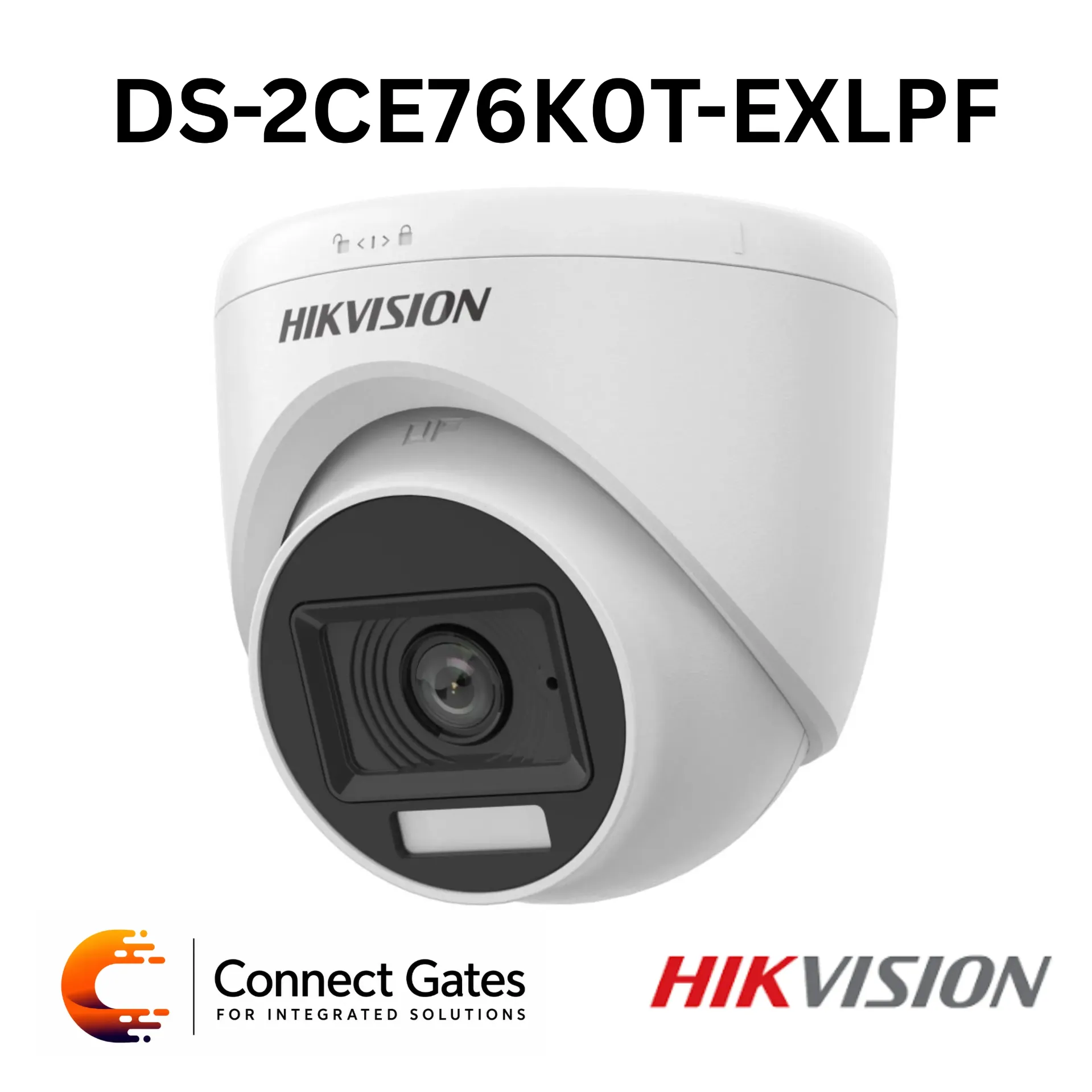

Hikvision DS-2CE76K0T-EXLPF – 3K Smart Hybrid Light Indoor Fixed Turret Camera with 20m IR, 20m White Light & 4-in-1 Video Output
Overview:
• The Hikvision DS-2CE76K0T-EXLPF is a 3K Smart Hybrid Light indoor fixed turret camera designed for high-quality HD surveillance in indoor applications.
• It delivers 2960 × 1665 resolution, providing higher image detail compared to standard 2MP cameras.
• The camera supports Smart-Hybrid Light technology, giving flexible night monitoring options using IR and white light.
• It provides up to 20 meters IR distance and up to 20 meters white light distance for bright night imaging.
• The 4-in-1 switchable video output supports TVI, AHD, CVI, and CVBS systems, making it suitable for upgrades and mixed DVR installations.
• Its compact turret design makes it suitable for offices, shops, corridors, reception areas, indoor entrances, residential units, and small business CCTV projects.
Key Features:
• 3K High-Quality Imaging: Provides 2960 × 1665 resolution for detailed video monitoring.
• Smart-Hybrid Light: Optimizes security with flexible IR and white light options.
• IR Night Vision: Up to 20 m IR distance for bright night imaging.
• White Light Range: Up to 20 m white light distance for enhanced night visibility.
• Fixed Lens Options: Available with 2.8 mm and 3.6 mm fixed focal lens options.
• 4-in-1 Video Output: Supports switchable TVI, AHD, CVI, and CVBS signals.
• Digital WDR: Helps improve image clarity in challenging lighting conditions.
• BLC / HLC / HLS / DWDR / Global: Enhances visibility in different backlight and strong light scenarios.
• Flexible Angle Adjustment: Supports pan, tilt, and rotation adjustment for easier installation.
• Compact Indoor Turret Design: Practical for indoor surveillance points.
• Low Power Consumption: Max. 4.0 W for efficient operation.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CE76K0T-EXLPF
• Product Type: 3K Smart Hybrid Light Indoor Fixed Turret Camera
• Image Sensor: 3K CMOS
• Maximum Resolution: 2960 × 1665
• Signal System: PAL / NTSC
• Minimum Illumination: 0.02 Lux @ F2.2, AGC ON; 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• Lens Type: 2.8 mm / 3.6 mm fixed focal lens
• Lens Mount: M12
• Field of View – 2.8 mm: Horizontal 101°, Vertical 64°, Diagonal 125°
• Field of View – 3.6 mm: Horizontal 80°, Vertical 51°, Diagonal 98°
• Supplement Light Type: Smart IR / White Light
• IR Range: Up to 20 m
• White Light Range: Up to 20 m
• Image Parameters Switch: STD / HIGH-SAT / HIGHLIGHT
• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate – TVI: 3K @ 20fps, 4MP @ 25fps / 30fps, 1080p @ 25fps / 30fps
• Frame Rate – AHD: 5MP @ 20fps, 4MP @ 25fps / 30fps
• Frame Rate – CVI: 4MP @ 25fps / 30fps
• Frame Rate – CVBS: PAL / NTSC
• Day/Night Mode: Auto / Color
• Wide Dynamic Range: Digital WDR
• Image Enhancement: DWDR / BLC / HLC / HLS / Global
• White Balance: Auto / Manual
• AGC: Yes
• Video Output: Switchable TVI / AHD / CVI / CVBS
• Material: Plastic
• Dimensions: Ø85 mm × 84.6 mm
• Weight: Max. 150 g
• Operating Conditions: -40°C to 60°C, humidity 90% or less, non-condensing
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ±25%
• Power Consumption: Max. 4.0 W
• Power Note: Recommended to use one power adapter for one camera
• Available Models: DS-2CE76K0T-EXLPF 2.8 mm / DS-2CE76K0T-EXLPF 3.6 mm
Applications:
• Offices
• Retail shops
• Indoor corridors
• Reception areas
• Indoor entrances
• Residential indoor surveillance
• Small business CCTV systems
• Schools and clinics
• Admin areas
• Areas requiring higher image detail than 2MP cameras
• General indoor monitoring points
Connect Gates Recommendation:
• Recommended for indoor projects that need higher image detail than standard 2MP HD cameras while keeping analog HD DVR infrastructure.
• The 3K resolution makes it suitable for offices, shops, reception areas, corridors, and indoor entrances where clearer image details are required.
• The Smart-Hybrid Light feature provides flexible night monitoring using both IR and white light, giving better visibility in low-light indoor areas.
• The 4-in-1 video output makes it suitable for new installations, replacement projects, and upgrades using TVI, AHD, CVI, or CVBS DVR systems.
• Best suited for customers who need compact indoor surveillance with higher image quality, flexible night lighting, low power consumption, and practical DVR compatibility.
