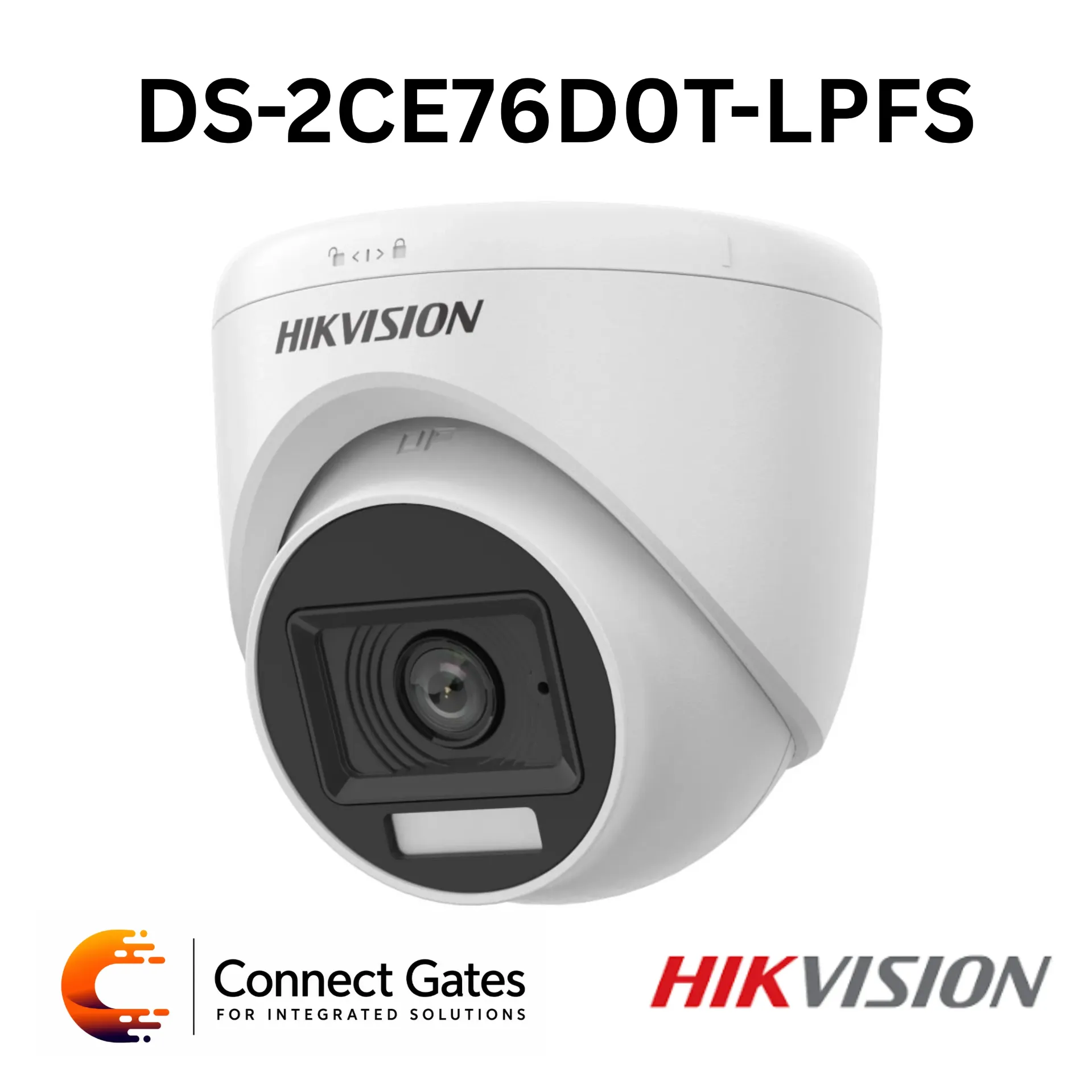

Hikvision DS-2CE76D0T-LPFS – 2MP Dual Light Audio Indoor Fixed Turret Camera with Built-in Mic, 20m IR, 20m White Light & 4-in-1 Video Output
Overview:
• The Hikvision DS-2CE76D0T-LPFS is a 2MP Dual Light Audio indoor fixed turret camera designed for clear HD surveillance with video and audio monitoring.
• It delivers high-quality 1920 × 1080 resolution for full HD video imaging.
• The camera supports Smart-Hybrid Light technology, providing flexible lighting options using IR and white light.
• It provides up to 20 meters IR distance and up to 20 meters white light distance for bright night imaging.
• The built-in microphone supports high-quality audio over coaxial cable, making it suitable for locations that require both image and sound monitoring.
• The 4-in-1 switchable video output supports TVI, AHD, CVI, and CVBS DVR systems for flexible compatibility.
• Its compact indoor turret design makes it suitable for offices, shops, reception areas, corridors, indoor entrances, residential units, and small business CCTV installations.
Key Features:
• 2MP HD Imaging: Provides clear 1920 × 1080 full HD video resolution.
• Dual Light Technology: Supports IR and white light for flexible night monitoring.
• Smart-Hybrid Light: Optimizes security with flexible lighting options.
• IR Night Vision: Up to 20 m IR distance for bright night imaging.
• White Light Range: Up to 20 m white light distance for enhanced night visibility.
• Built-in Microphone: Supports audio monitoring with pickup distance up to 5 m radius.
• Audio Over Coaxial Cable: Transmits high-quality audio using coaxial infrastructure.
• Fixed Lens Options: Available with 2.8 mm and 3.6 mm fixed focal lens options.
• 4-in-1 Video Output: Supports switchable TVI, AHD, CVI, and CVBS signals.
• Digital WDR: Improves image clarity in challenging lighting conditions.
• BLC / HLC / DWDR / Global: Enhances visibility in backlight and strong light environments.
• Compact Indoor Turret Design: Practical for indoor security monitoring points.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CE76D0T-LPFS
• Product Type: 2MP Dual Light Audio Indoor Fixed Turret Camera
• Image Sensor: 2 MP CMOS
• Maximum Resolution: 1920 × 1080
• Signal System: PAL / NTSC
• Minimum Illumination: 0.01 Lux @ F1.6, AGC ON; 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Lens Type: 2.8 mm / 3.6 mm fixed focal lens
• Lens Mount: M12
• Field of View – 2.8 mm: Horizontal 101°, Vertical 56°, Diagonal 118°
• Field of View – 3.6 mm: Horizontal 78°, Vertical 42°, Diagonal 92°
• Microphone: Built-in microphone
• Microphone Pickup Distance: Radius up to 5 m
• Microphone Amount: 1
• Supplement Light Type: Smart IR / White Light
• IR Range: Up to 20 m
• White Light Range: Up to 20 m
• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate – TVI: 1080p @ 30fps / 25fps
• Frame Rate – AHD: 1080p @ 30fps / 25fps
• Frame Rate – CVI: 1080p @ 30fps / 25fps
• Frame Rate – CVBS: PAL / NTSC
• Wide Dynamic Range: Digital WDR
• Image Enhancement: DWDR / BLC / HLC / Global
• White Balance: Auto / Manual
• AGC: Yes
• Day/Night Mode: Auto / Color
• Video Output: Switchable TVI / AHD / CVI / CVBS
• Material: Plastic
• Dimensions: 84.6 mm × Ø85.02 mm
• Weight: Approx. 156 g
• Operating Conditions: -40°C to 60°C, humidity 90% or less, non-condensing
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ±25%
• Power Note: Recommended to use one power adapter for one camera
• Power Consumption: Max. 3.3 W
• Available Models: DS-2CE76D0T-LPFS 2.8 mm / DS-2CE76D0T-LPFS 3.6 mm
Applications:
• Offices
• Retail shops
• Reception areas
• Indoor corridors
• Indoor entrances
• Residential indoor surveillance
• Small business CCTV systems
• Areas requiring video and audio monitoring
• Schools and clinics
• Admin areas
• General indoor monitoring points
Connect Gates Recommendation:
• Recommended for indoor projects that need a 2MP HD turret camera with both video and audio monitoring.
• The built-in microphone makes it suitable for offices, shops, reception areas, service counters, corridors, and indoor entrances where sound recording is required.
• The Smart-Hybrid Light feature provides flexible night monitoring using IR and white light, making the camera more effective in low-light indoor areas.
• The 4-in-1 video output makes it a flexible option for new installations, upgrades, and replacement projects using TVI, AHD, CVI, or CVBS DVR systems.
• Best suited for customers who need compact indoor surveillance with full HD video, built-in audio, dual light night performance, and practical DVR compatibility.
