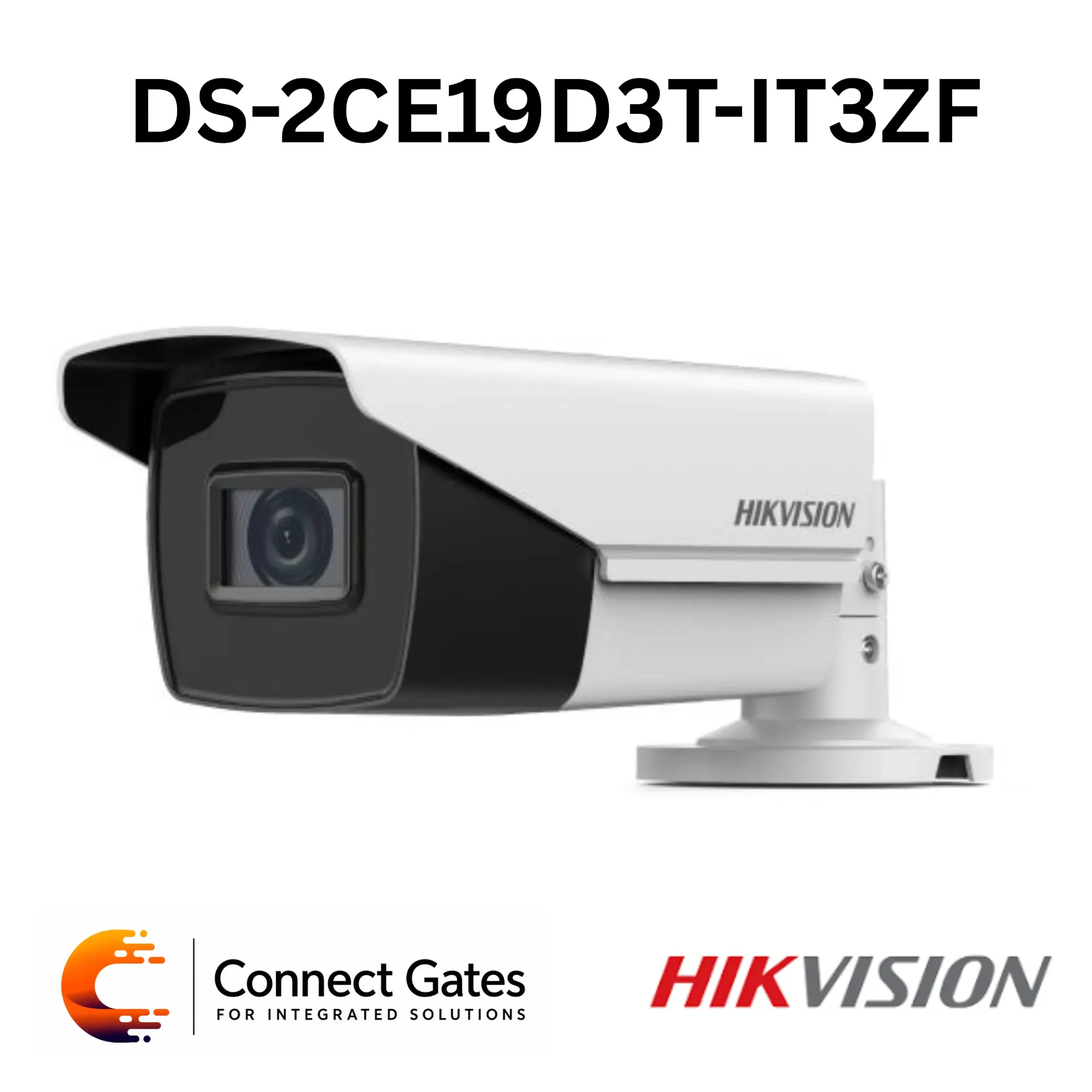

Hikvision DS-2CE19D3T-IT3ZF – 2MP Ultra Low Light EXIR Bullet Camera with Motorized 2.7–13.5mm Lens, 120dB True WDR, 70m IR, IP67 & 4-in-1 Video Output
Overview:
• The Hikvision DS-2CE19D3T-IT3ZF is a 2MP ultra low light EXIR bullet camera designed for high-performance analog HD surveillance.
• It delivers 1920 × 1080 resolution using a 2.0 megapixel progressive scan CMOS sensor.
• The camera features a 2.7 mm to 13.5 mm motorized vari-focal lens with auto focus, allowing flexible viewing angle adjustment after installation.
• EXIR 2.0 and Smart IR technology provide up to 70 meters IR distance for strong night monitoring.
• 120 dB True WDR improves image clarity in scenes with strong backlight or high contrast lighting.
• It supports 4-in-1 switchable video output, allowing compatibility with TVI, AHD, CVI, and CVBS DVR systems.
• With IP67 protection and durable construction, it is suitable for outdoor entrances, gates, warehouses, parking areas, perimeter points, factories, and long-distance monitoring points.
Key Features:
• 2MP High-Performance Imaging: Provides 1920 × 1080 full HD video resolution.
• Ultra Low Light Performance: Designed for clearer imaging in low-light environments.
• Motorized Vari-Focal Lens: 2.7 mm to 13.5 mm lens with auto focus for flexible coverage.
• EXIR 2.0 Night Vision: Advanced infrared technology for improved night monitoring.
• Smart IR: Helps reduce overexposure and improve night image quality.
• 70m IR Range: Up to 70 m IR distance for long night coverage.
• 120 dB True WDR: Strong backlight correction for challenging lighting scenes.
• 3D DNR: Reduces video noise for cleaner image quality.
• Day/Night Switch: IR cut filter for automatic day and night operation.
• 4-in-1 Video Output: Supports switchable TVI, AHD, CVI, and CVBS signals.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• Up the Coax: Supports HIKVISION-C communication through compatible DVR systems.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CE19D3T-IT3ZF / DS-2CE19D3T-AIT3ZF
• Product Type: 2MP Ultra Low Light EXIR Bullet Camera
• Image Sensor: 2.0 megapixel progressive scan CMOS
• Resolution: 1920 × 1080
• Signal System: PAL / NTSC
• Video Frame Rate – PAL: 1080p @ 25fps
• Video Frame Rate – NTSC: 1080p @ 30fps
• Minimum Illumination: 0.005 Lux @ F1.2, AGC ON; 0 Lux with IR
• Shutter Time – PAL: 1/25 s to 1/50,000 s
• Shutter Time – NTSC: 1/30 s to 1/50,000 s
• Lens Type: 2.7 mm to 13.5 mm motorized vari-focal lens
• Auto Focus: Yes
• Horizontal Field of View: 102° to 31°
• Lens Mount: Ø14
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Synchronization: Internal Synchronization
• Wide Dynamic Range: ≥120 dB True WDR
• AGC: High / Medium / Low
• Day/Night Mode: Auto / Color / B/W
• Image Mode: STD / HIGH-SAT
• Backlight Compensation: Yes
• WDR: Yes
• 3D DNR: Level 1 to 9
• Image Functions: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
• Video Output: 1 HD analog output
• Switch Button: TVI / AHD / CVI / CVBS
• Operating Conditions: -40°C to 60°C, humidity 90% or less, non-condensing
• Power Supply: 12 VDC ±25%
• Power Supply – A Version: 24 VAC ±15%, 12 VDC ±20%
• Power Consumption: Max. 7.7 W
• Power Consumption – A Version: Max. 9.7 W
• Protection Rating: IP67
• Material: Front Cover: Metal; Main Body: Plastic; Bracket: Metal
• IR Range: Up to 70 m
• Dimensions: 84.5 mm × 92 mm × 255.1 mm
• Weight: Approx. 648 g
• Weight – A Version: Approx. 695 g
• Order Models: DS-2CE19D3T-IT3ZF / DS-2CE19D3T-AIT3ZF
Applications:
• Outdoor entrances
• Building gates
• Warehouses
• Parking areas
• Perimeter monitoring
• Factory outdoor areas
• Long corridors
• Industrial facilities
• Residential compound entrances
• Retail outdoor monitoring
• Areas requiring long IR coverage
• Areas with strong backlight conditions
• General indoor and outdoor monitoring points
Connect Gates Recommendation:
• Recommended for projects that need stronger night coverage, flexible lens adjustment, and better image performance than standard fixed-lens 2MP cameras.
• The 2.7 mm to 13.5 mm motorized vari-focal lens makes it suitable for locations where the viewing angle needs to be adjusted precisely after installation.
• The 70 m IR range makes it a strong choice for gates, warehouses, parking areas, perimeter points, factories, and long-distance outdoor monitoring.
• The 120 dB True WDR is useful for entrances, glass doors, backlight areas, and locations facing sunlight or mixed lighting.
• Best suited for customers who need full HD analog surveillance with ultra low light performance, motorized zoom flexibility, long IR night vision, IP67 outdoor protection, and practical DVR compatibility.
