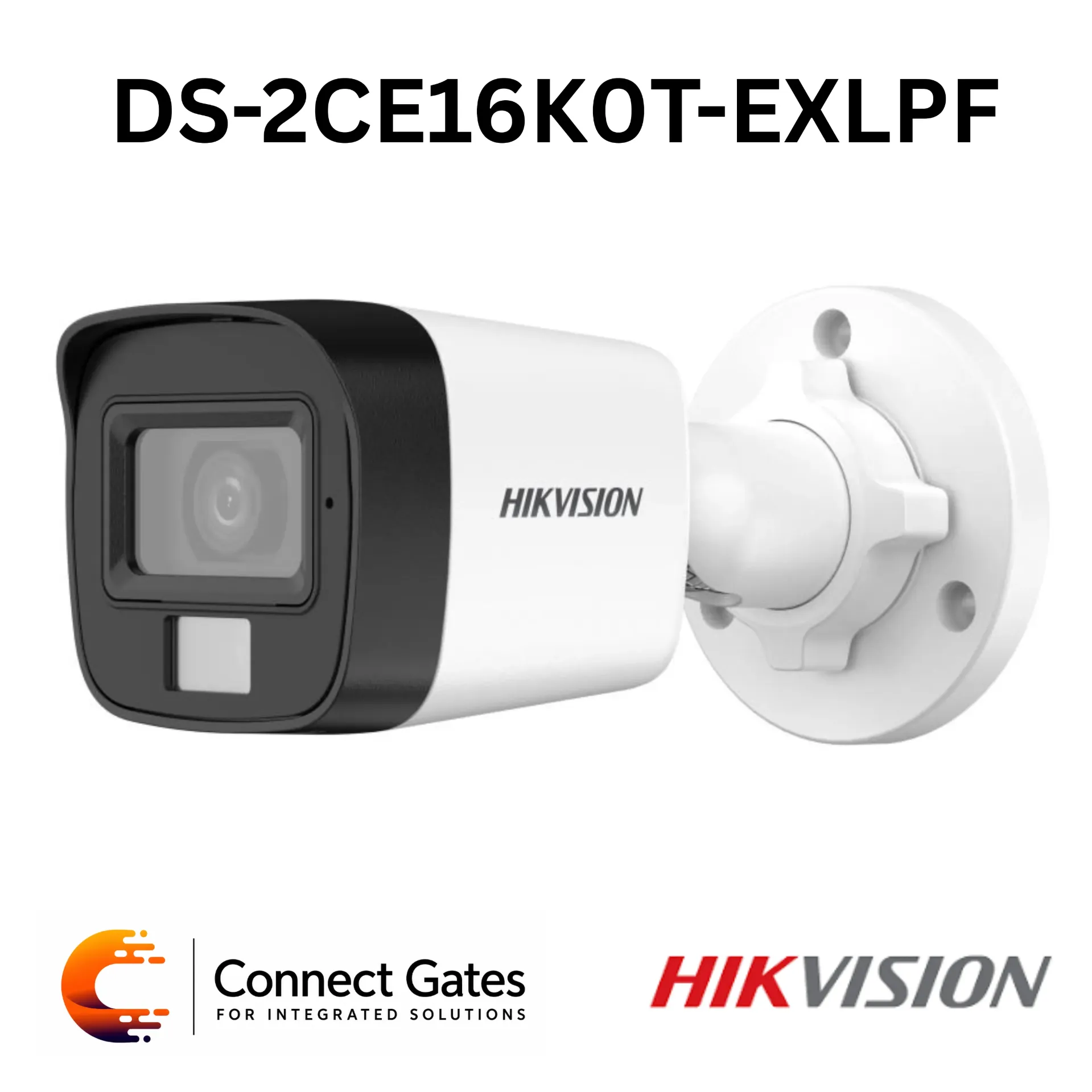

Hikvision DS-2CE16K0T-EXLPF – 3K Smart Hybrid Light Fixed Mini Bullet Camera with 20m IR, 20m White Light, IP67 & 4-in-1 Video Output
Overview:
• The Hikvision DS-2CE16K0T-EXLPF is a 3K Smart Hybrid Light fixed mini bullet camera designed for high-quality HD surveillance in indoor and outdoor installations.
• It delivers 2960 × 1665 resolution, providing higher image detail compared to standard 2MP cameras.
• The camera supports Smart-Hybrid Light technology, giving flexible night monitoring options using IR and white light.
• It provides up to 20 meters IR distance and up to 20 meters white light distance for bright night imaging.
• The 4-in-1 switchable video output supports TVI, AHD, CVI, and CVBS systems, making it suitable for upgrades and mixed DVR installations.
• With IP67 water and dust resistance, it is suitable for outdoor entrances, gates, walls, warehouses, parking areas, shops, and general CCTV projects.
Key Features:
• 3K High-Quality Imaging: Provides 2960 × 1665 resolution for detailed video monitoring.
• Smart-Hybrid Light: Optimizes security with flexible IR and white light options.
• IR Night Vision: Up to 20 m IR distance for bright night imaging.
• White Light Range: Up to 20 m white light distance for enhanced night visibility.
• Fixed Lens Options: Available with 2.8 mm and 3.6 mm fixed focal lens options.
• 4-in-1 Video Output: Supports switchable TVI, AHD, CVI, and CVBS signals.
• IP67 Protection: Water and dust resistant for reliable outdoor installation.
• Digital WDR: Helps improve image clarity in challenging lighting conditions.
• BLC / HLC / HLS / DWDR / Global: Enhances visibility in different backlight and strong light scenarios.
• Flexible Angle Adjustment: Supports pan, tilt, and rotation adjustment for easier installation.
• Compact Mini Bullet Design: Practical for indoor and outdoor surveillance points.
Technical Specifications:
• Brand: Hikvision
• Model: DS-2CE16K0T-EXLPF
• Product Type: 3K Smart Hybrid Light Fixed Mini Bullet Camera
• Image Sensor: 3K CMOS
• Maximum Resolution: 2960 × 1665
• Signal System: PAL / NTSC
• Minimum Illumination: 0.02 Lux @ F2.2, AGC ON; 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens Type: 2.8 mm / 3.6 mm fixed focal lens
• Lens Mount: M12
• Field of View – 2.8 mm: Horizontal 101°, Vertical 64°, Diagonal 125°
• Field of View – 3.6 mm: Horizontal 80°, Vertical 51°, Diagonal 98°
• Supplement Light Type: Smart IR / White Light
• IR Range: Up to 20 m
• White Light Range: Up to 20 m
• Image Parameters Switch: STD / HIGH-SAT / HIGHLIGHT
• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate – TVI: 3K @ 20fps, 4MP @ 25fps / 30fps, 1080p @ 25fps / 30fps
• Frame Rate – AHD: 5MP @ 20fps, 4MP @ 25fps / 30fps
• Frame Rate – CVI: 4MP @ 25fps / 30fps
• Frame Rate – CVBS: PAL / NTSC
• Day/Night Mode: Auto / Color
• Wide Dynamic Range: Digital WDR
• Image Enhancement: DWDR / BLC / HLC / HLS / Global
• White Balance: Auto / Manual
• AGC: Yes
• Video Output: Switchable TVI / AHD / CVI / CVBS
• Material: Plastic
• Dimensions: Ø70 mm × 138.8 mm
• Weight: Max. 150 g
• Operating Conditions: -40°C to 60°C, humidity 90% or less, non-condensing
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ±25%
• Power Consumption: Max. 4.4 W
• Power Note: Recommended to use one power adapter for one camera
• Protection Rating: IP67
• Available Models: DS-2CE16K0T-EXLPF 2.8 mm / DS-2CE16K0T-EXLPF 3.6 mm
Applications:
• Outdoor entrances
• Building gates
• Warehouses
• Retail shops
• Offices
• Corridors
• Parking areas
• Residential outdoor surveillance
• Small business CCTV systems
• Areas requiring higher image detail than 2MP cameras
• General indoor and outdoor monitoring points
Connect Gates Recommendation:
• Recommended for projects that need higher image detail than standard 2MP HD cameras while keeping the cost-effective analog HD infrastructure.
• The 3K resolution makes it suitable for entrances, shops, warehouses, gates, corridors, and outdoor areas where clearer object and scene details are required.
• The Smart-Hybrid Light feature provides flexible night monitoring using both IR and white light.
• The IP67 protection makes it suitable for outdoor exposed areas, while the 4-in-1 video output allows flexible use with TVI, AHD, CVI, and CVBS DVR systems.
• Best suited for customers who need better image quality, outdoor protection, flexible night lighting, and practical DVR compatibility without moving to a full IP camera system.
