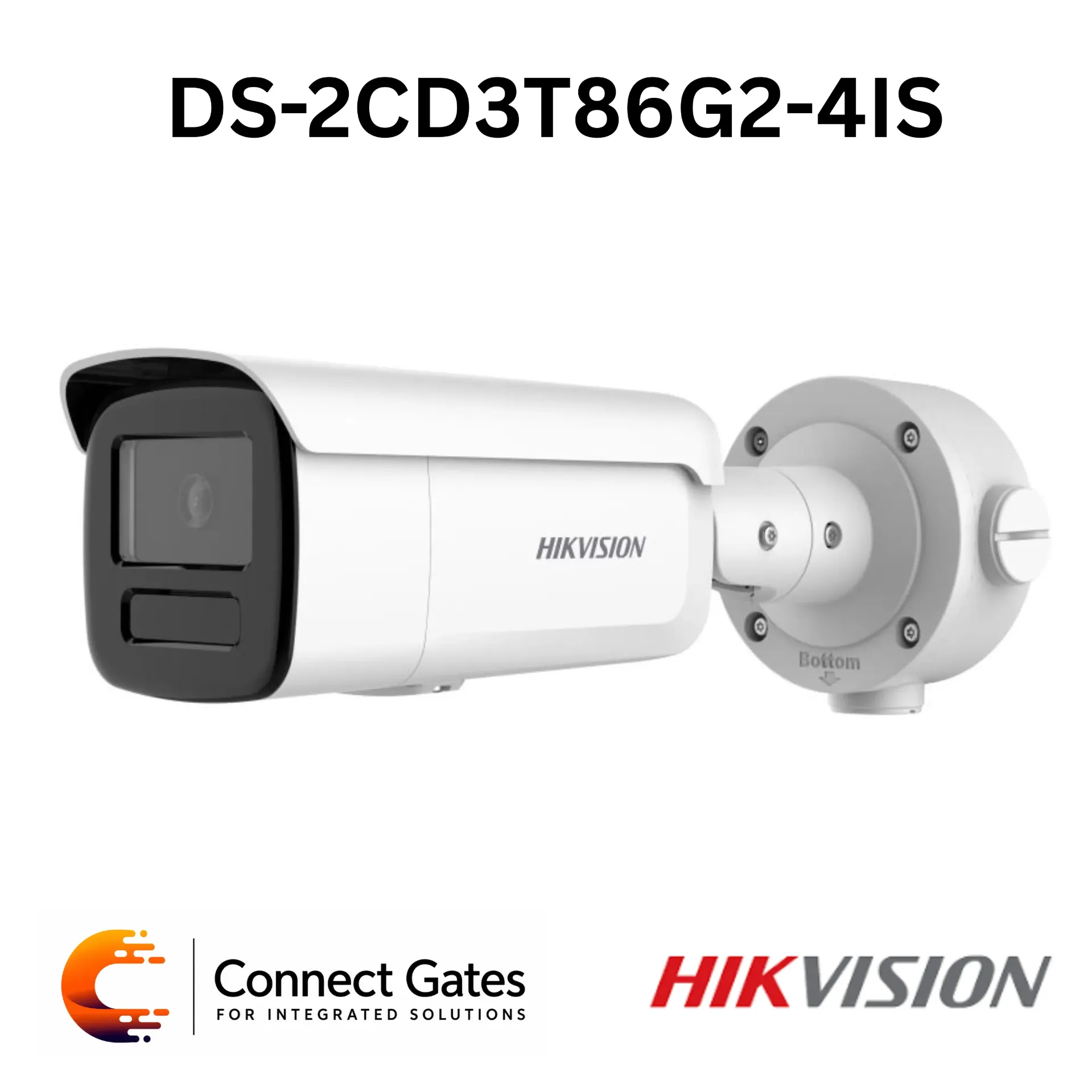

Hikvision DS-2CD3T86G2-4IS – 8MP AcuSense Fixed Bullet Network Camera with DarkFighter, 90m IR, H.265+ & IP67
Overview:
The Hikvision DS-2CD3T86G2-4IS is an 8MP AcuSense Fixed Bullet Network Camera designed for professional outdoor surveillance with high-resolution 4K imaging. It features DarkFighter low-light technology, AcuSense human and vehicle classification, 120 dB True WDR, H.265+ compression, and long-range IR night vision up to 90 m. It also supports advanced streaming technology for smoother live view and data self-correction in poor network conditions.
Key Features:
• 8MP high-quality imaging with up to 3840 × 2160 resolution
• DarkFighter technology for excellent low-light performance
• AcuSense deep learning technology for human and vehicle target classification
• 120 dB True WDR for clear imaging against strong backlight
• Efficient H.265+ compression to reduce bandwidth and storage usage
• IR night vision up to 90 m for long-distance outdoor monitoring
• Fixed lens options: 2.8 mm, 4 mm, 6 mm and 12 mm
• Advanced streaming technology for smooth live view in poor network conditions
• Supports main stream, sub-stream, third stream and fourth stream
• Supports H.265, H.264, H.265+, H.264+ and MJPEG
• Supports 5 fixed ROI regions for main stream and sub-stream
• Supports target cropping
• Supports face capture
• Supports line crossing, intrusion, region entrance and region exiting detection
• Supports unattended baggage, object removal, scene change and audio exception detection
• Supports audio input and audio output
• Supports 2 alarm inputs and 2 alarm outputs
• Built-in MicroSD card slot up to 512 GB
• Supports NAS storage, ANR, memory card encryption and health detection
• Compatible with iVMS-4200, Hik-Connect and Hik-Central
• Supports 12V DC and PoE 802.3at
• IP67 water and dust resistant for outdoor installation
Technical Specifications:
• Model: DS-2CD3T86G2-4IS
• Camera Type: 8MP AcuSense Fixed Bullet Network Camera
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color 0.003 Lux @ F1.6, B/W 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Fixed focal lens
• Lens Options: 2.8 mm / 4 mm / 6 mm / 12 mm
• 2.8 mm FOV: Horizontal 111°, Vertical 59°, Diagonal 131°
• 4 mm FOV: Horizontal 87°, Vertical 47°, Diagonal 102°
• 6 mm FOV: Horizontal 51°, Vertical 28°, Diagonal 60°
• 12 mm FOV: Horizontal 24°, Vertical 14°, Diagonal 27°
• Lens Mount: M12
• Aperture: F1.6
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 90°, Rotate 0° to 360°
• IR Range: Up to 90 m
• IR Wavelength: 850 nm
• Main Stream: Up to 3840 × 2160
• Sub Stream: Up to 1280 × 720
• Third Stream: Up to 1920 × 1080
• Fourth Stream: Up to 1280 × 720
• Video Compression: H.265, H.264, H.264+, H.265+, MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• SVC: H.264 and H.265 encoding
• ROI: 5 fixed regions for main stream and sub-stream
• Target Cropping: Supported
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB
• Audio Type: Mono sound
• Audio Interface: 1 input / 1 output
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Environment Noise Filtering: Yes
• Alarm Interface: 2 inputs / 2 outputs
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• API: Open Network Video Interface Profile S/G/T, ISAPI, SDK, ISUP
• On-board Storage: MicroSD / SDHC / SDXC up to 512 GB
• Simultaneous Live View: Up to 6 channels
• Users: Up to 32 users
• Network Storage: NAS, NFS, SMB/CIFS, ANR
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Basic Event: Motion detection with human/vehicle classification, video tampering alarm, exception
• Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
• Deep Learning: Face capture, line crossing, intrusion, region entrance, region exiting
• Power Supply: 12V DC ±25% / PoE 802.3at Class 4
• Power Consumption: Max. 13 W by 12V DC / Max. 14 W by PoE
• Power Output: 12V DC, max. 100 mA
• Operating Temperature: -30°C to 60°C
• Humidity: 95% or less, non-condensing
• Protection: IP67
• Dimensions: Ø105 mm × 325.5 mm
• Weight: Approx. 1110 g
Applications:
• Factory perimeter surveillance
• Outdoor gates and entrances
• Warehouses and logistics areas
• Parking areas
• Road and boundary monitoring
• Long-distance outdoor surveillance
• Commercial and industrial sites
• Sites with poor or unstable network conditions
• Projects requiring smart human and vehicle detection
• Locations needing audio/alarm integration
Connect Gates Recommendation:
Connect Gates recommends Hikvision DS-2CD3T86G2-4IS for outdoor projects that require 8MP 4K image quality, strong low-light performance, long IR coverage, and smart AcuSense event filtering. It is especially suitable for factories, perimeters, gates, warehouses and large outdoor areas where long-distance coverage, smart detection and stable live viewing are important.
